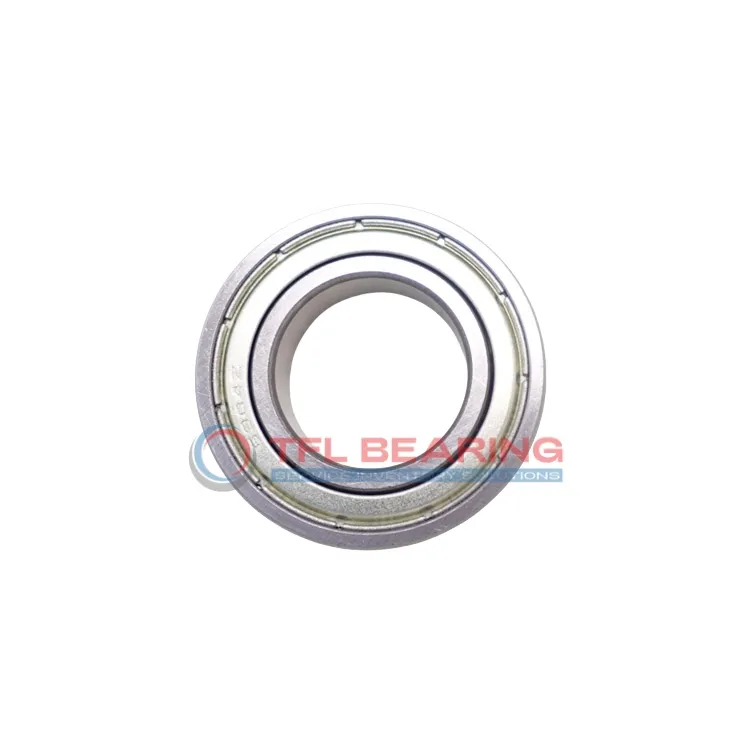

Stainless Steel Deep Groove Ball Bearings D/W R12-2Z

Stainless Steel Deep Groove Ball Bearings D/W R12-2Z

The D/W R12-2Z is a stainless steel deep groove ball bearing with a 0.75″ bore and 1.625″ outer diameter, measuring just 0.43752″ wide. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 19,000 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability in harsh conditions.

This bearing works well in temperatures from -30°C to 120°C and comes pre-lubricated with grease. It’s interchangeable with SKF bearings for easy replacement.

Ideal for applications like food processing equipment or marine environments where rust resistance is important. Weighing only 0.061kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R12-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.75"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 1.625"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.43752"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.061 kg
Stainless Steel Deep Groove Ball Bearings D/W R12-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R12-2Z Bearing for Precision Tasks?

D/W R12-2Z Bearing features stainless steel construction, offering excellent corrosion resistance and durability.
Its shielded design helps keep contaminants out while retaining lubrication for smooth operation.

With a dynamic radial load capacity of 1812 lbf, D/W R12-2Z Bearing handles demanding radial loads efficiently.
The precision-engineered components ensure consistent performance, even at high speeds up to 19,000 rpm.

D/W R12-2Z Bearing operates reliably in temperatures ranging from -30° to 120°C, making it versatile for various environments.
Its grease lubrication reduces maintenance needs, providing long-lasting performance.

Application

Industrial Uses of D/W R12-2Z Bearing
D/W R12-2Z Bearing is commonly used in conveyor systems and small machinery, where its stainless steel construction resists corrosion in humid or washdown environments. The shielded design keeps contaminants out while maintaining smooth rotation.

In automotive applications, D/W R12-2Z Bearing fits well in electric motors and pumps, offering reliable performance under radial loads. Its inch sizing makes it a handy replacement for older equipment in North American markets.

For home appliances like fans or power tools, D/W R12-2Z Bearing’s grease lubrication ensures quiet operation over long periods. The compact width allows it to fit into tight spaces without sacrificing durability.

Medical devices benefit from D/W R12-2Z Bearing’s precision, particularly in lab equipment where consistent motion is key. The all-stainless build meets hygiene standards while handling moderate speeds effortlessly.

Automation systems often use D/W R12-2Z Bearing in robotic joints or linear guides, where its low-maintenance design reduces downtime. The CN clearance provides a balance between rigidity and smooth movement.
