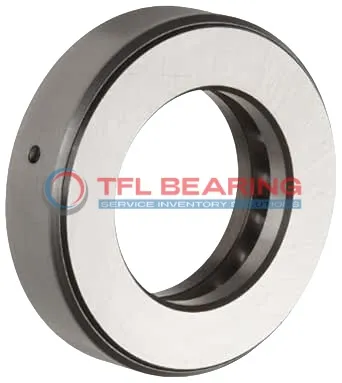

Thrust Ball Bearing With Outside Band T-100-29

Thrust Ball Bearing With Outside Band T-100-29

The T-100-29 is a thrust ball bearing measuring 1.625 inches in bore diameter and 3 inches in outer diameter, with a width of 1.1875 inches. Made from durable 52100 chrome steel, it offers reliable performance under thrust loads.

It handles dynamic thrust loads up to 8830 lbf, with reduced capacity at higher speeds. The bearing requires lubrication and operates smoothly in temperatures ranging from -30°C to 110°C.

With 14 balls of 1/2 inch diameter, it ensures even load distribution. The outside band design provides added stability during operation.

This bearing is suitable for industrial applications with moderate to high thrust loads, such as machinery or automotive components. Compliant with RoHS and REACH standards, it weighs 0.59 kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-29
  • Brand TFL
  • Bore Dia 1.625000"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.656250"
  • Outer Dia 3"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1.187500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/2"
  • Ball Qty 14
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 8830 lbf
  • Dynamic Thrust Load(100 RPM) 5815 lbf
  • Dynamic Thrust Load(500 RPM) 3580 lbf
  • Dynamic Thrust Load(1500 RPM) 2575 lbf
  • Static Thrust Load 31272 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.59 kg
Thrust Ball Bearing With Outside Band T-100-29 dimension drawing
Download DWG Download PDF

Features

How Does T-100-29 Bearing Handle Heavy Loads?

T-100-29 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 31272 lbf, making it suitable for demanding industrial applications.

The bearing’s 14-ball design ensures even load distribution, enhancing durability under pressure.
With a temperature range of -30° to 110°C, it performs reliably in varied operating conditions.

T-100-29 Bearing requires lubrication, which helps maintain smooth operation and prolongs its service life.
Its inch measurements and precise tolerances ensure compatibility with standard industrial equipment.

Application

Industrial Uses of T-100-29 Bearing
T-100-29 Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its high thrust load capacity is essential. The inch sizing makes it a reliable fit for equipment designed to imperial measurements.

In automotive applications, T-100-29 Bearing handles demanding tasks like steering systems and clutch mechanisms, ensuring smooth operation under pressure. Its chrome steel construction offers durability in high-stress environments.

For automation systems, T-100-29 Bearing provides stability in robotic arms and conveyor belts, where precision and load handling are key. The required lubrication ensures long-lasting performance even with frequent use.

Medical equipment benefits from T-100-29 Bearing’s consistent performance in devices like MRI machines, where reliability is critical. The temperature range allows it to function effectively in various clinical settings.

In household appliances, T-100-29 Bearing can be found in washing machines and dishwashers, supporting rotating components with minimal maintenance. Its robust design makes it suitable for everyday use.
