Miniature Angular Contact Ball Bearings 723AC

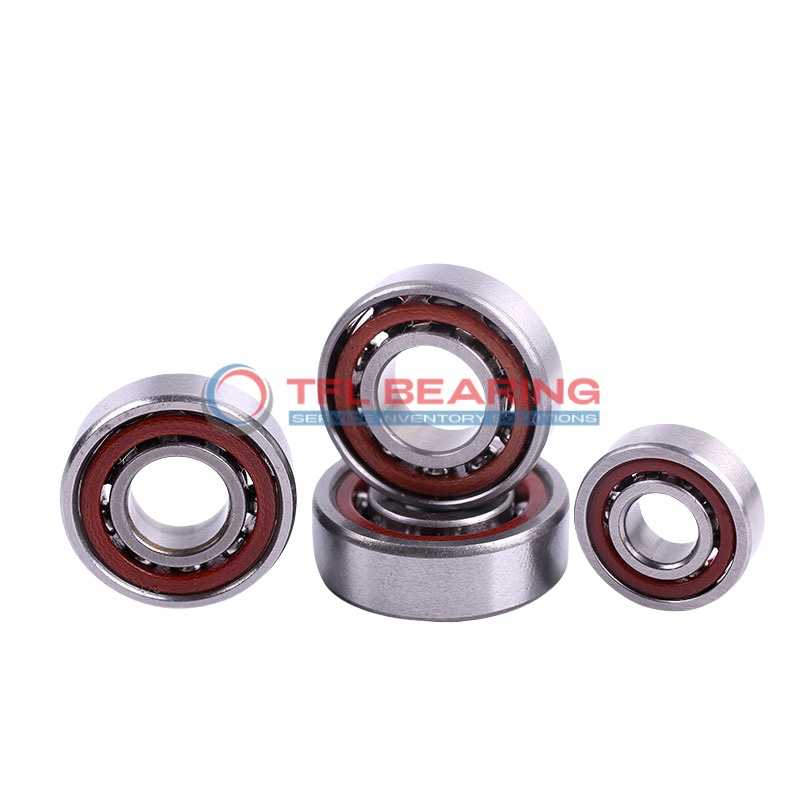

Miniature Angular Contact Ball Bearings 723AC

The 723AC is a compact angular contact ball bearing, measuring just 3mm by 10mm by 4mm. It features a 25° contact angle and comes in sealed or open options, with universal matching for easy pairing.

Made from steel or ceramic balls with a nylon or phenolic cage, it offers smooth operation and durability. The bearing is preloaded for better performance and comes lubricated for immediate use.

Its small size and angular contact design make it ideal for precision applications like small motors or medical devices. The ABEC P5 and P4 ratings ensure high accuracy and reliability.

Lightweight and versatile, it suits both industrial and hobbyist projects where space is limited but performance is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 723AC
  • Brand TFL
  • Bore Dia 3 mm
  • Outer Dia 10 mm
  • Width 4 mm
  • System of Measurement Metric
  • Contact Angle 25°
  • Seal Type Sealed,Open
  • Matched Arrangement Universal matching
  • Preload Available
  • For Load Direction Angular Contact
  • Ball Material Steel,Ceramic
  • Cage Material Nylon,Phenolic
  • Lubrication Lubricated
  • ABEC Rating P5(ABEC-5),P4(ABEC-15)
Miniature Angular Contact Ball Bearings 723AC dimension drawing
Download DWG Download PDF

Features

Why Choose 723AC Bearing for Precision Tasks?

723AC Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its universal matching design allows for flexible arrangements, ensuring smooth operation in various configurations.

The choice between steel or ceramic balls provides options for different performance needs, balancing durability and efficiency.
With ABEC-5 and ABEC-15 ratings, 723AC Bearing meets high precision standards for demanding applications.

Sealed and open options offer versatility, protecting against contaminants while maintaining ease of lubrication.
The compact 3 mm×10 mm×4 mm size makes it suitable for space-constrained applications without compromising performance.

Application

Key Fields for 723AC Bearing
The 723AC Bearing is widely used in precision instruments like small motors and optical devices, where its compact size and angular contact design are ideal. Its universal matching feature ensures easy integration into various setups.

How Does 723AC Bearing Improve Performance?
In robotics, 723AC Bearing enhances movement accuracy in joints and actuators, thanks to its 25° contact angle. The option for ceramic balls reduces friction, making it suitable for high-speed applications.

Perfect Fit for Automation: 723AC Bearing
This bearing works well in automated systems, such as CNC machines, where consistent performance is needed. The sealed variants help keep out contaminants, extending service life in dusty environments.

Medical vs Industrial: Where 723AC Bearing Excels
While 723AC Bearing supports delicate medical tools like dental drills, it also handles industrial tasks in small gearboxes. Its versatility comes from the choice of steel or ceramic balls.

Designed for Versatility: 723AC Bearing
From consumer electronics like drones to lab equipment, 723AC Bearing adapts easily. The nylon cage option reduces noise, making it a good fit for quiet operations.
