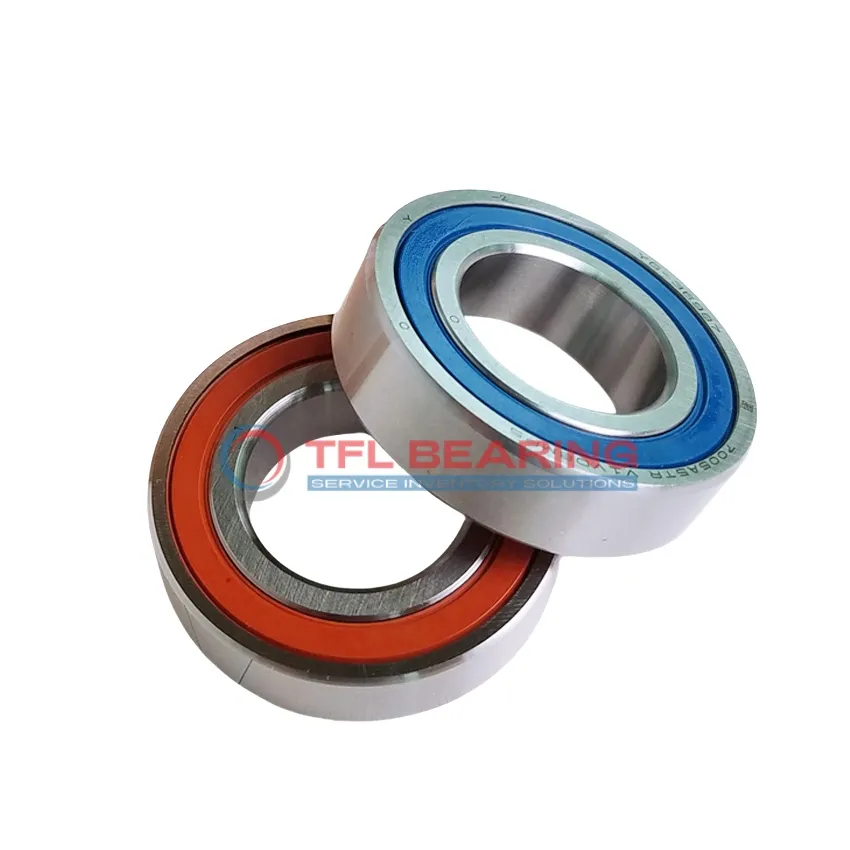

Single Row Angular Contact Ball Bearings (General) 7210 BE-2RZP

Brand: TFL Bearing Interchangeable: SKF 7210 BE-2RZP 50 mm × 90 mm × 20 mm Metric Sealed
Part number: 7210 BE-2RZP
Single Row Angular Contact Ball Bearings (General) 7210 BE-2RZP
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.013mm to 0
Width20 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)65.85 mm
External Diameter On Inner Ring (Small Side Face)57.68 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load8,482 lbf
Static Radial Load6,412 lbf
Temperature Range-30° to 110 °C
Max Speed7,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeSealed
Distance Pressure Point (a)39 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.55 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7210 BE-2RZP is a single-row angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8482 lbf and operates smoothly at speeds up to 7000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The 40° contact angle makes it ideal for combined radial and axial loads.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for applications like pumps or gearboxes where precise angular contact is needed.

Weighing 0.55kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it performs well in temperatures from -30°C to 110°C.

Features

Performance Features of 7210 BE-2RZP Bearing

7210 BE-2RZP Bearing is designed with a 40° contact angle, optimising load distribution for angular contact applications.
The sealed construction protects against contaminants, ensuring smooth operation in various environments.

Constructed from chrome steel, 7210 BE-2RZP Bearing offers excellent durability and resistance to wear.
Its dynamic radial load capacity of 8482 lbf makes it suitable for demanding industrial uses.

The nylon cage in 7210 BE-2RZP Bearing reduces friction and noise, enhancing performance.
With a maximum speed of 7,000 rpm, it balances efficiency and reliability.

7210 BE-2RZP Bearing operates effectively in temperatures from -30° to 110°C.
Its P6 tolerance class ensures precision and consistency in performance.

Application

Industrial Uses of 7210 BE-2RZP Bearing
The 7210 BE-2RZP Bearing is commonly used in machine tools, where its 40° contact angle handles combined radial and axial loads efficiently. The sealed design keeps contaminants out, extending service life in dusty workshop environments.

In automotive applications, 7210 BE-2RZP Bearing works well in wheel hubs and transmissions due to its nylon cage reducing friction at high speeds. The P6 tolerance ensures precise alignment for smooth vehicle operation.

For robotics, 7210 BE-2RZP Bearing’s compact 50mm bore fits neatly into articulated joints while maintaining stability during repetitive movements. The chrome steel construction provides reliable performance in automated assembly lines.

Home appliances like washing machines benefit from 7210 BE-2RZP Bearing’s sealed lubrication system that requires minimal maintenance. Its 90mm outer diameter offers sturdy support for rotating drums under variable loads.

Medical imaging devices utilize 7210 BE-2RZP Bearing for its quiet operation and consistent performance in precision equipment. The temperature stability ensures reliability during prolonged scanning procedures.
