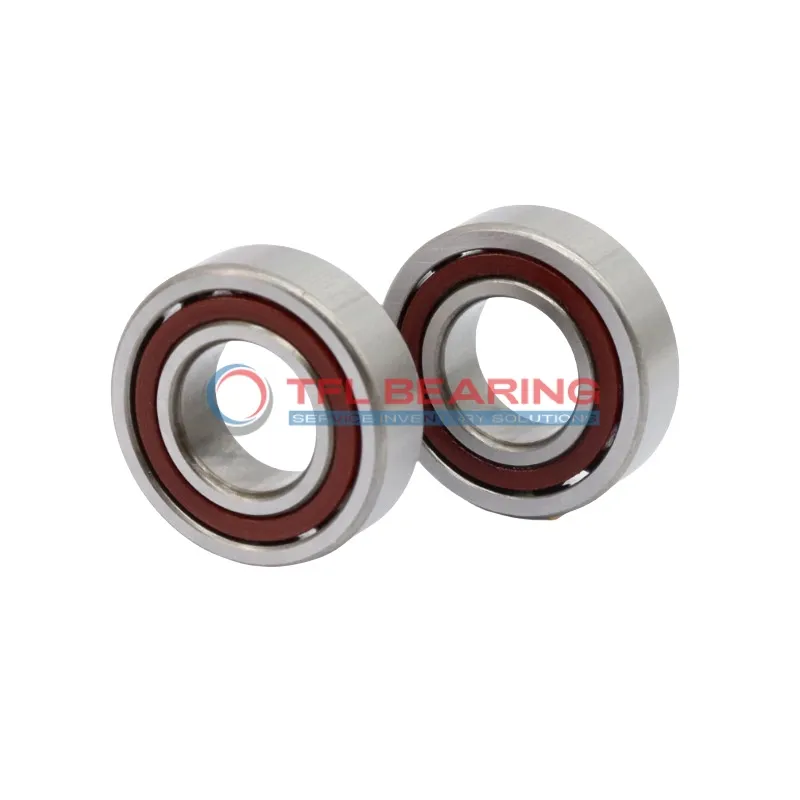

Miniature Angular Contact Ball Bearings 718/6C

Miniature Angular Contact Ball Bearings 718/6C

The 718/6C is a compact angular contact ball bearing, measuring just 6mm by 13mm by 5mm. It features a 15° contact angle and comes in sealed or open options, with universal matching for easy pairing.

This bearing handles angular loads smoothly and is available with preload for precise alignment. The nylon or phenolic cage ensures quiet operation, while steel or ceramic balls offer flexibility for different needs.

Its small size and ABEC-5 or ABEC-12 precision ratings make it ideal for delicate applications like small motors or precision instruments. The lubricated design keeps maintenance simple.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 718/6C
  • Brand TFL
  • Bore Dia 6 mm
  • Outer Dia 13 mm
  • Width 5 mm
  • System of Measurement Metric
  • Contact Angle 15°
  • Seal Type Sealed,Open
  • Matched Arrangement Universal matching
  • Preload Available
  • For Load Direction Angular Contact
  • Ball Material Steel,Ceramic
  • Cage Material Nylon,Phenolic
  • Lubrication Lubricated
  • ABEC Rating P5(ABEC-5),P4(ABEC-12)
Miniature Angular Contact Ball Bearings 718/6C dimension drawing
Download DWG Download PDF

Features

Why Choose 718/6C Bearing for Precision Tasks?

718/6C Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with precision.
Its universal matching design allows for flexible arrangements, ensuring smooth operation in various configurations.

The bearing comes with options for steel or ceramic balls, catering to different performance and durability needs.
Nylon or phenolic cages further enhance its suitability for high-speed applications.

With ABEC-5 and ABEC-12 ratings, 718/6C Bearing meets stringent precision standards.
Its compact size (6 mm×13 mm×5 mm) makes it perfect for space-constrained applications.

Application

Where Is 718/6C Bearing Used?
718/6C Bearing is commonly found in precision instruments like dental drills and optical devices, where its small size and angular contact design are ideal. The sealed options help keep contaminants out, ensuring long-lasting performance.

In robotics, 718/6C Bearing supports smooth movement in joints and actuators, thanks to its universal matching feature. The ceramic ball option also reduces friction, making it suitable for high-speed applications.

For consumer electronics, 718/6C Bearing fits well in compact devices like handheld fans or small motors. Its nylon cage provides quiet operation, which is perfect for noise-sensitive environments.

Automotive applications include small gearboxes and steering systems, where 718/6C Bearing’s preload capability enhances stability. The metric sizing ensures compatibility with a variety of vehicle components.

In industrial automation, 718/6C Bearing is used in conveyor guides and spindle drives, offering reliable performance under angular loads. The phenolic cage option adds durability in high-temperature settings.
