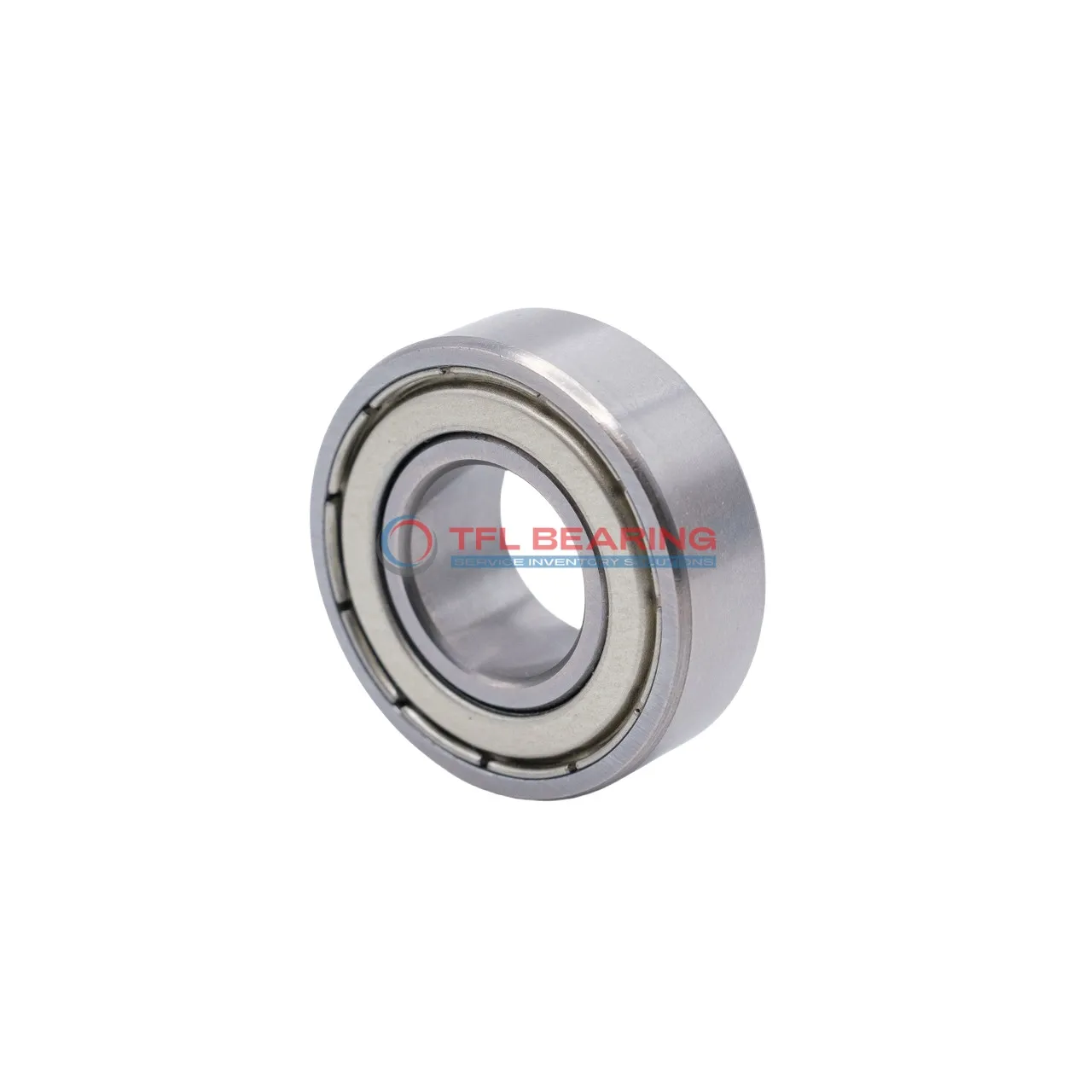

Metric Size Standard Miniature Ball Bearings SMR106zz

Metric Size Standard Miniature Ball Bearings SMR106zz

The SMR106zz is a compact miniature ball bearing, measuring just 6mm by 10mm by 3mm, crafted entirely from stainless steel for durability. It handles radial loads up to 86 lbf and spins smoothly at speeds up to 40,500 RPM.

Its shielded design keeps out dust and debris, while the stainless steel cage ensures long-lasting performance. The bearing operates well in temperatures ranging from -30°C to 110°C.

This single-row bearing is ideal for small, precision applications like miniature motors or small instruments. Its lightweight design, at only 0.7g, makes it easy to integrate into compact assemblies.

Compliant with RoHS and REACH standards, it’s a reliable choice for environmentally conscious applications. Regular lubrication will help maintain its smooth operation over time.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMR106zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 10
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 86 lbf
  • Static Radial Load 35 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40500 rpm
  • Weight 0.7 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings SMR106zz dimension drawing
Download DWG Download PDF

Features

Why Choose SMR106zz Bearing for Precision Tasks?

SMR106zz Bearing features a stainless steel construction, making it resistant to corrosion and suitable for various environments.
Its compact size of 6 mm×10 mm×3 mm allows it to fit into tight spaces without compromising performance.

The shielded design protects against dust and debris, ensuring smooth operation in demanding conditions.
With a maximum speed of 40,500 rpm, it delivers reliable performance for high-speed applications.

SMR106zz Bearing’s ABEC1 tolerance ensures consistent precision, ideal for miniature machinery.
The stainless steel cage and balls enhance durability, reducing the need for frequent replacements.

Application

Common Applications of SMR106zz Bearing
SMR106zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and shielded design. The stainless steel construction ensures it handles everyday wear without corrosion.

How Does SMR106zz Bearing Improve Performance?
In precision devices like dental drills or optical equipment, SMR106zz Bearing offers smooth rotation with minimal friction. Its ABEC1 tolerance provides consistent performance for delicate tasks.

Built for Heavy-Duty Use: SMR106zz Bearing
Despite its miniature size, SMR106zz Bearing can handle radial loads in industrial settings like conveyor guides or packaging machinery. The shielded design keeps contaminants out for longer service life.

Automotive vs Aerospace: Applications of SMR106zz Bearing
In automotive applications, SMR106zz Bearing fits well in dashboard instruments or small actuators. For aerospace, its lightweight and reliability make it suitable for navigation systems or control mechanisms.

Perfect Fit for Automation: SMR106zz Bearing
SMR106zz Bearing works seamlessly in robotic arms and 3D printers, where precise movement is key. The stainless steel balls and cage ensure durability even with frequent direction changes.
