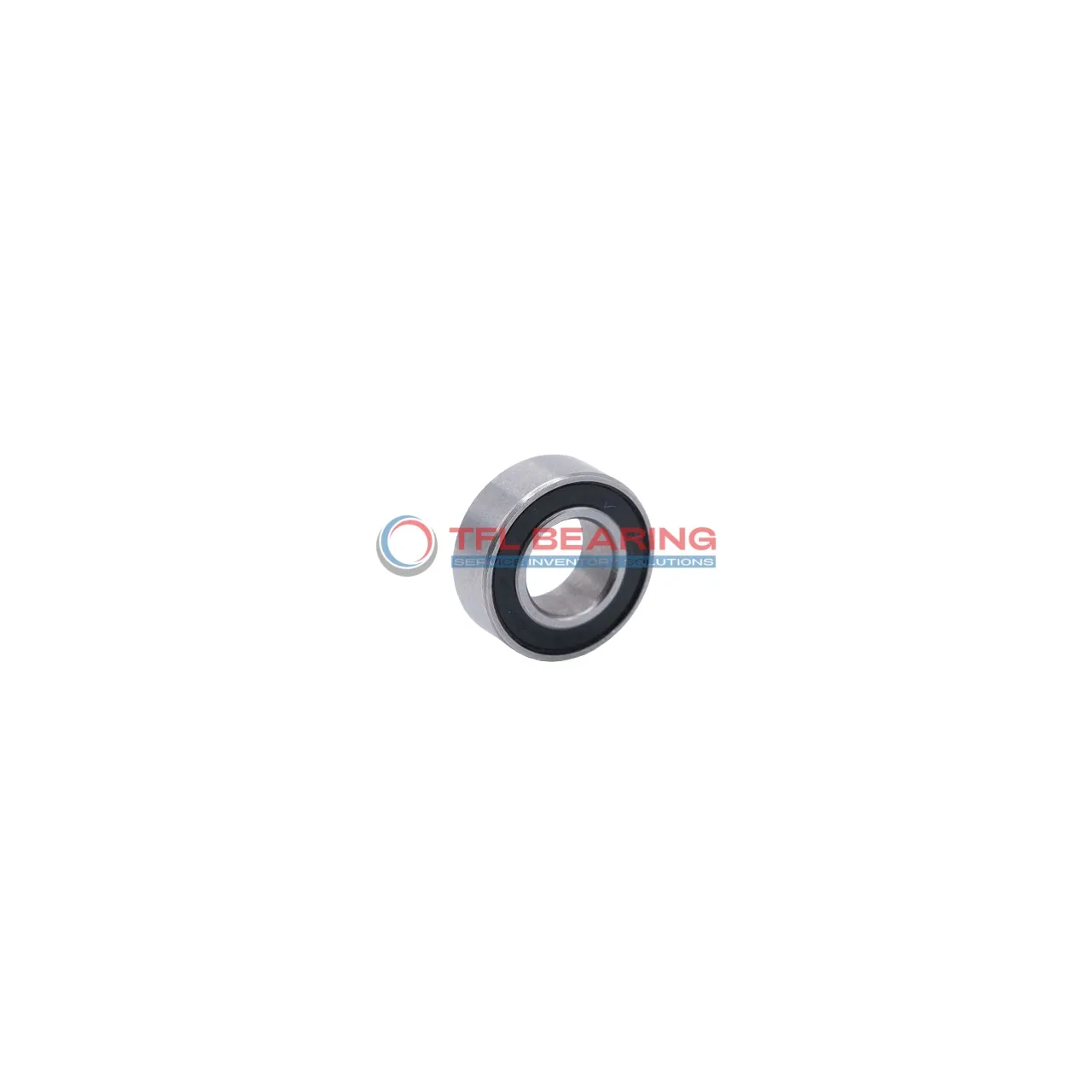

Metric Size Standard Miniature Ball Bearings S692 2rs

Metric Size Standard Miniature Ball Bearings S692 2rs

The S692 2RS is a small, sealed ball bearing with a 2mm bore and 6mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 57 lbf and spins smoothly at speeds up to 67,500 RPM.

Its double rubber seals keep out dust and moisture, making it low-maintenance, while the stainless steel cage ensures long life. The bearing operates well in temperatures from -30°C to 110°C.

This miniature bearing is ideal for precision devices like small motors, dental tools, or model-making equipment where space is limited. Weighing just 0.35g, it’s lightweight yet robust for its size.

Compliant with RoHS and REACH standards, it’s a reliable choice for eco-conscious applications. The ABEC1 tolerance and MC3 clearance ensure smooth, precise performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S692 2rs
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Sealed
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material Nitrile Rubber
  • Dynamic Radial Load 57 lbf
  • Static Radial Load 16 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 67500 rpm
  • Weight 0.35 g
  • Price（$） 2.106
Metric Size Standard Miniature Ball Bearings S692 2rs dimension drawing
Download DWG Download PDF

Features

How Does S692 2RS Bearing Ensure Smooth Operation?

S692 2RS Bearing features a sealed design with nitrile rubber shields, protecting against dust and moisture.
Its stainless steel construction resists corrosion, making it suitable for various environments.

The bearing’s ABEC1 tolerance class ensures consistent performance in precision applications.
With a maximum speed of 67,500 rpm, it delivers reliable and efficient operation.

S692 2RS Bearing’s compact size (2 mm×6 mm×3 mm) makes it ideal for miniature applications.
The stainless steel cage and balls enhance durability, even under radial loads.

Application

Common Applications of S692 2rs Bearing
S692 2rs Bearing is widely used in small electric motors, such as those found in drones or miniature fans, where its compact size and sealed design prevent dust ingress. The stainless steel construction ensures longevity even in humid environments.

In medical devices like dental tools or insulin pumps, S692 2rs Bearing provides smooth, quiet operation thanks to its precision ABEC1 rating. The sealed design also helps maintain hygiene by keeping contaminants out.

For consumer electronics, S692 2rs Bearing is a reliable choice in devices like computer cooling fans or small printers. Its high-speed capability (up to 67,500 rpm) ensures efficient performance without compromising durability.

Automotive applications include small actuators or sensors, where S692 2rs Bearing’s radial load capacity handles constant movement. The nitrile rubber seals add extra protection against road debris and moisture.

In robotics, S692 2rs Bearing is often found in joint mechanisms or miniature gearboxes, offering precise movement with minimal maintenance. The MC3 clearance provides just the right balance between smooth operation and load capacity.
