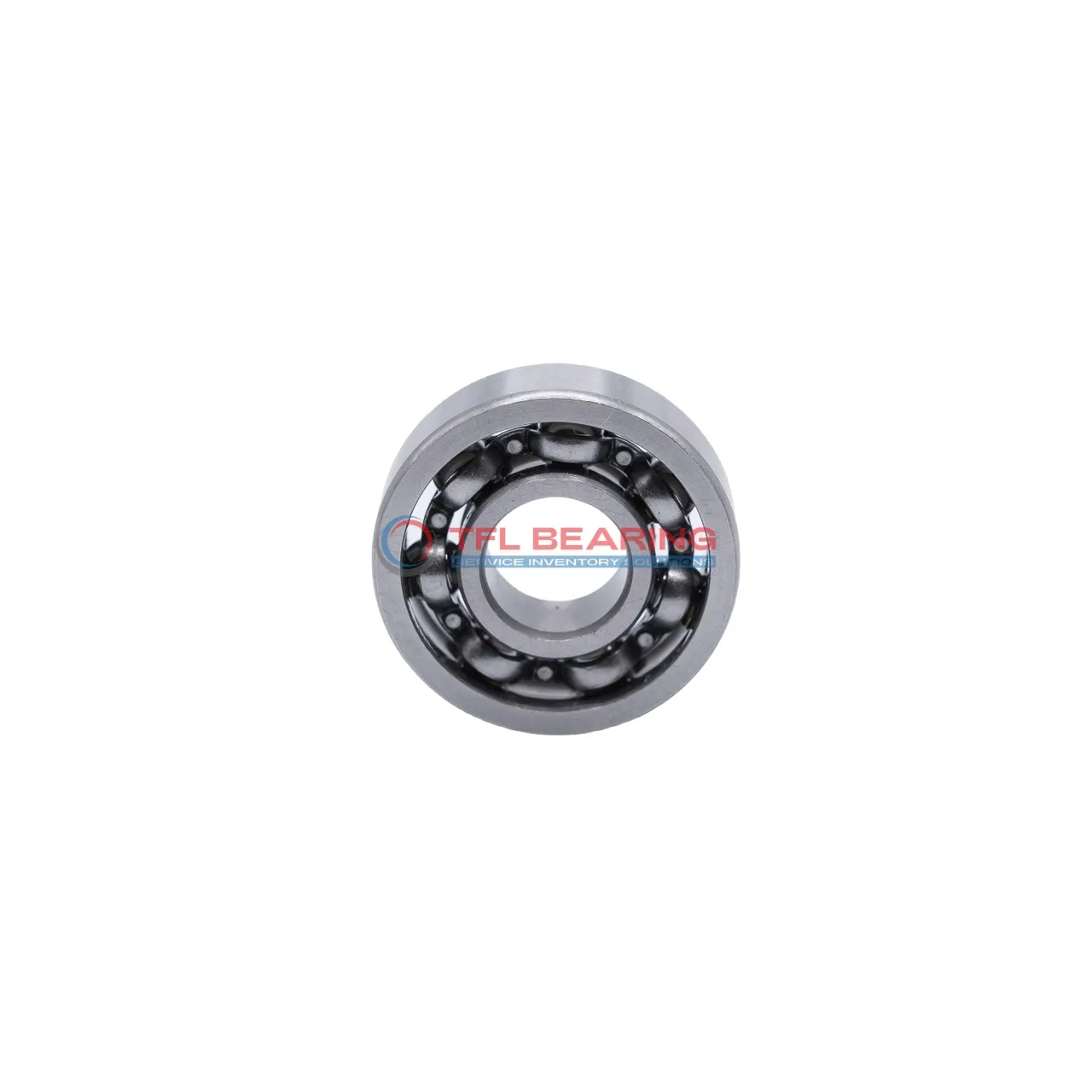

Single Row Deep Groove Ball Bearings 6201

Single Row Deep Groove Ball Bearings 6201

The 6201 is a compact single-row deep groove ball bearing with a 12mm bore and 32mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22000 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures durability. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or small machinery where radial loads are common.

Weighing just 37g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
  • price（$） 1.611
Single Row Deep Groove Ball Bearings 6201 dimension drawing
Download DWG Download PDF

Features

Why Choose 6201 Bearing for Precision Tasks?

6201 Bearing features a single row deep groove design, ideal for handling radial loads with precision.
Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains alignment.

With a dynamic radial load capacity of 1529 lbf, it performs reliably in various applications.
The bearing operates smoothly at speeds up to 22,000 rpm, balancing efficiency and longevity.

Its compact size (12 mm×32 mm×10 mm) makes it suitable for space-constrained installations.
The open design allows for easy lubrication, ensuring consistent performance over time.

Application

Common Applications of 6201 Bearing
In industrial machinery, 6201 Bearing is widely used in electric motors and pumps due to its reliable radial load capacity. The open design simplifies lubrication, making it suitable for continuous operation.

Where Is 6201 Bearing Used?
You’ll often find 6201 Bearing in automotive applications like alternators and small gearboxes, where its compact size and efficiency are key. Its ABEC-1 tolerance ensures smooth performance even at higher speeds.

Ideal for Precision: 6201 Bearing
For medical devices such as dental drills, 6201 Bearing offers quiet and precise rotation. The chrome steel construction ensures durability in sterile environments.

Automotive vs Industrial: Applications of 6201 Bearing
In cars, 6201 Bearing handles radial loads in components like fans, while in factories, it supports conveyor rollers. Its versatility makes it a go-to choice for both sectors.

Practical Applications of 6201 Bearing
In home appliances like washing machines, 6201 Bearing provides smooth operation with minimal maintenance. The stainless steel cage adds longevity, even with frequent use.
