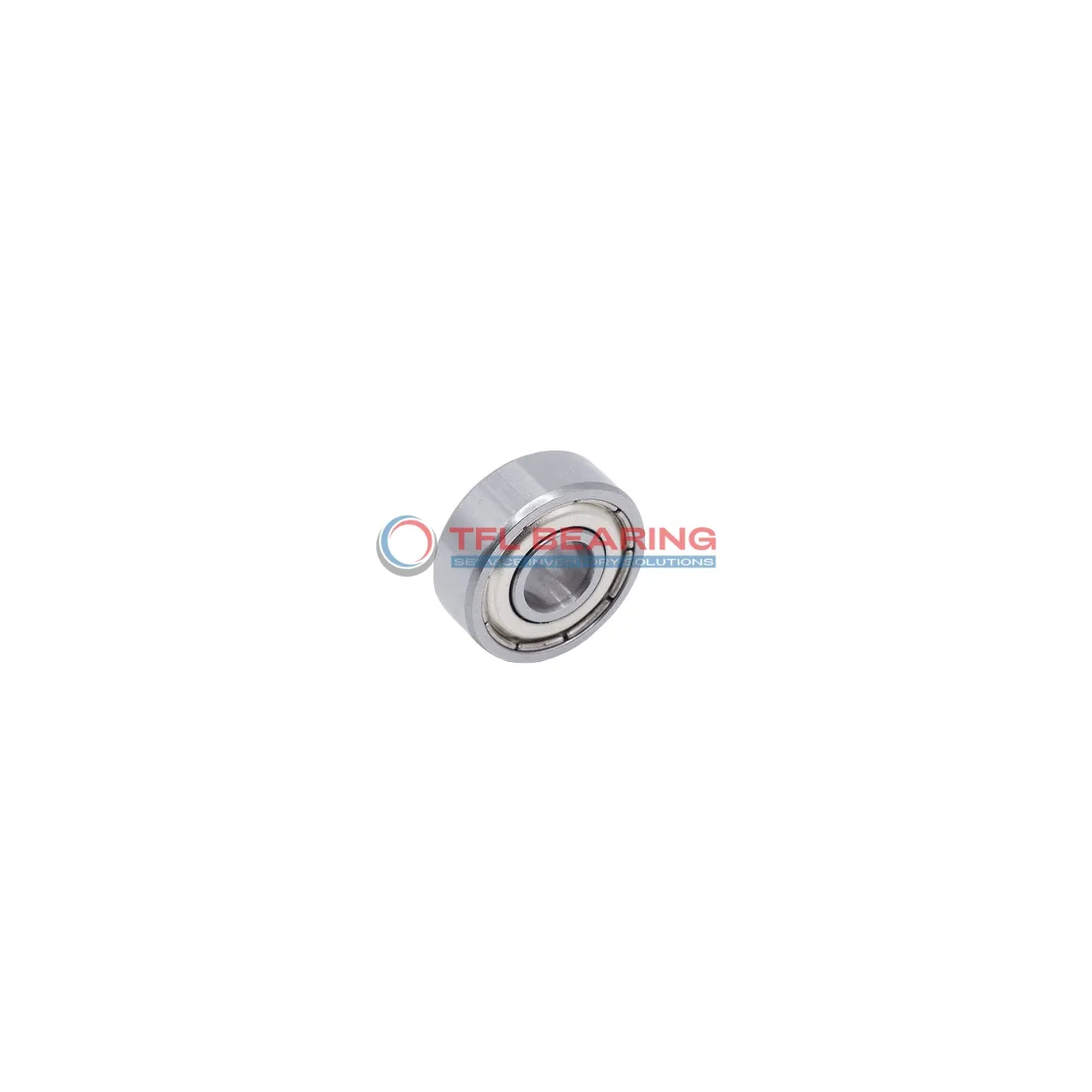

Metric Size Standard Miniature Ball Bearings S607zz

Metric Size Standard Miniature Ball Bearings S607zz

The S607zz is a compact miniature ball bearing with a 7mm bore and 19mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 402 lbf and spins smoothly at speeds up to 32,400 RPM.

Its shielded design keeps out dust while maintaining easy access for lubrication. The stainless steel cage and balls ensure corrosion resistance and long service life.

With a lightweight design at just 8.24g, it’s ideal for small applications like electric motors or precision instruments. The bearing operates reliably in temperatures from -30°C to 110°C.

Compliant with RoHS and REACH standards, this ABEC1-class bearing offers good precision for general use. Its 6-ball design provides balanced performance in compact spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S607zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 402 lbf
  • Static Radial Load 145 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 32400 rpm
  • Weight 8.24 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S607zz dimension drawing
Download DWG Download PDF

Features

Why Choose S607zz Bearing for Precision Tasks?

S607zz Bearing is crafted with stainless steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 402 lbf makes it suitable for precise, high-speed applications.

The shielded design protects against dust while maintaining low friction.
With a maximum speed of 32,400 rpm, it balances efficiency and durability.

S607zz Bearing’s ABEC1 tolerance ensures consistent performance in miniature applications.
Its stainless steel construction resists corrosion, extending service life.

The compact 7 mm×19 mm×6 mm size fits seamlessly into small assemblies.
Easy to install and maintain, S607zz Bearing reduces operational downtime.

Application

Common Applications of S607zz Bearing
S607zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, where its compact size and shielded design keep dust out. The stainless steel construction ensures it handles everyday wear without rusting.

How Does S607zz Bearing Improve Performance?
In automation equipment like 3D printers, S607zz Bearing reduces friction in moving parts, allowing for smoother and more precise movements. Its ABEC1 tolerance offers reliable performance for light to moderate loads.

Perfect Fit for Automation: S607zz Bearing
S607zz Bearing works well in robotic arms, where its lightweight design and high-speed capability help maintain accuracy. The shielded seals protect against contaminants, extending its lifespan in busy production lines.

Medical vs Industrial: Where S607zz Bearing Excels
In medical devices like dental drills, S607zz Bearing provides quiet operation and hygiene-friendly stainless steel surfaces. For industrial uses, it’s a go-to for conveyor rollers due to its balance of load capacity and compactness.

Where Is S607zz Bearing Used?
You’ll often find S607zz Bearing in office printers, supporting paper feed mechanisms with consistent rotation. Its 7mm bore fits neatly into tight spaces, making it versatile for both consumer and professional gadgets.
