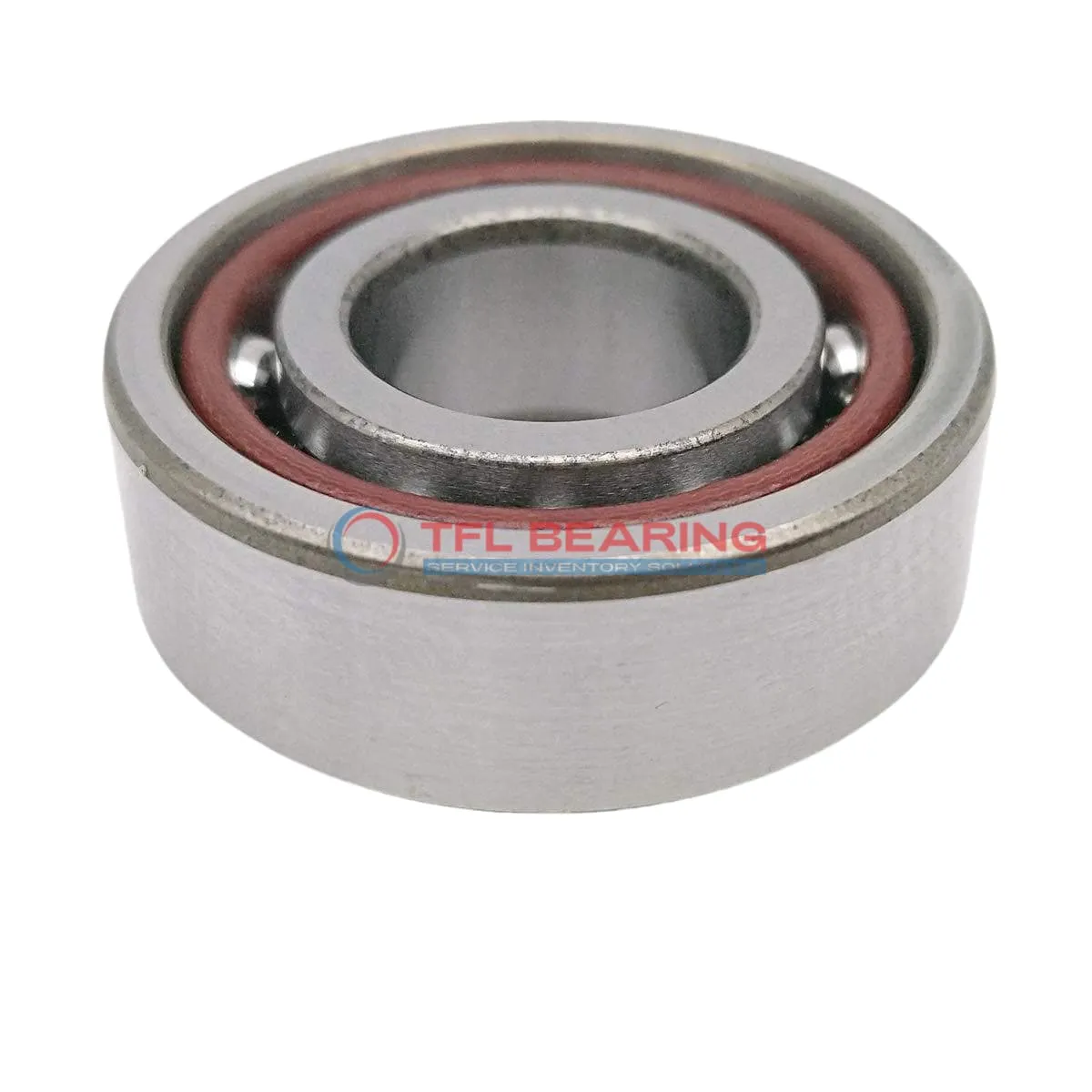

Super Precision Angular Contact Ball Bearings 7018 CE/HCP4ADT

Brand: TFL Bearing Interchangeable: SKF 7018 CE/HCP4ADT 90 mm × 140 mm × 48 mm Metric Open
Part number: 7018 CE/HCP4ADT
Super Precision Angular Contact Ball Bearings 7018 CE/HCP4ADT
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.004mm to 0
Width48 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load13,162 lbf
Static Radial Load14,400 lbf
Temperature Range- 30°C to 110 °C
Max Speed15,000 rpm
Characteristics
Ball Qty28
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings << DT
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight2.22 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7018 CE/HCP4ADT is a super precision angular contact ball bearing with a 90mm bore and 140mm outer diameter, designed for high-performance applications. Its compact size (90mm×140mm×48mm) makes it suitable for tight spaces while maintaining robust performance.

This bearing handles radial loads up to 13162 lbf and reaches speeds of 15000 RPM, thanks to its ceramic balls and phenolic cage. The 15° contact angle ensures smooth operation under angular loads, and the preloaded matched arrangement (2 bearings) enhances stability.

Made from durable chrome steel, it operates in temperatures from -30°C to 110°C. The open design allows for easy lubrication, extending its service life. Ideal for precision machinery like spindles or high-speed rotary tables.

Weighing 2.22kg, it’s a reliable choice for demanding environments. Compliant with P4A tolerance class, it offers excellent precision and interchangeability with SKF bearings.

Features

Performance Features of 7018 CE/HCP4ADT Bearing

7018 CE/HCP4ADT Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 15° contact angle allows for efficient handling of combined radial and axial loads.
The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 13162 lbf, it excels in demanding applications.

How Does 7018 CE/HCP4ADT Bearing Achieve High-Speed Performance?

7018 CE/HCP4ADT Bearing’s ceramic balls and precision design enable smooth operation at speeds up to 15,000 rpm.
The open seal type ensures optimal lubrication, reducing heat buildup during high-speed use.
Its P4A tolerance class guarantees consistent performance in precision machinery.
The matched arrangement of two bearings enhances stability under heavy loads.

Engineered for Precision: 7018 CE/HCP4ADT Bearing

7018 CE/HCP4ADT Bearing offers exceptional accuracy with its P4A tolerance class and 15° contact angle.
The ceramic balls and chrome steel rings provide a perfect balance of strength and smooth operation.
Its preload availability ensures minimal deflection, ideal for high-precision applications.
The phenolic cage contributes to reduced vibration and noise during operation.

Application

Industrial Uses of 7018 CE/HCP4ADT Bearing
7018 CE/HCP4ADT Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The ceramic balls reduce friction, making it ideal for applications requiring smooth operation.

What Makes 7018 CE/HCP4ADT Bearing a Preferred Choice?
In automotive applications, 7018 CE/HCP4ADT Bearing supports components like turbochargers and gearboxes, where its high-speed capability and durability are key. The matched arrangement also enhances stability under heavy loads.

Perfect Fit for Automation: 7018 CE/HCP4ADT Bearing
For robotic arms and automated systems, 7018 CE/HCP4ADT Bearing offers reliable performance with minimal maintenance. Its phenolic cage provides excellent resistance to wear and heat.

Medical vs Industrial: Where 7018 CE/HCP4ADT Bearing Excels
In medical imaging devices, 7018 CE/HCP4ADT Bearing’s precision ensures smooth operation, while in industrial settings, its robust design handles heavy loads effortlessly. The wide temperature range adds to its versatility.

How Does 7018 CE/HCP4ADT Bearing Support High-Speed Operations?
7018 CE/HCP4ADT Bearing is designed for applications like spindles and turbines, where its high-speed rating and low friction are crucial. The lubricated design further enhances its longevity and performance.
