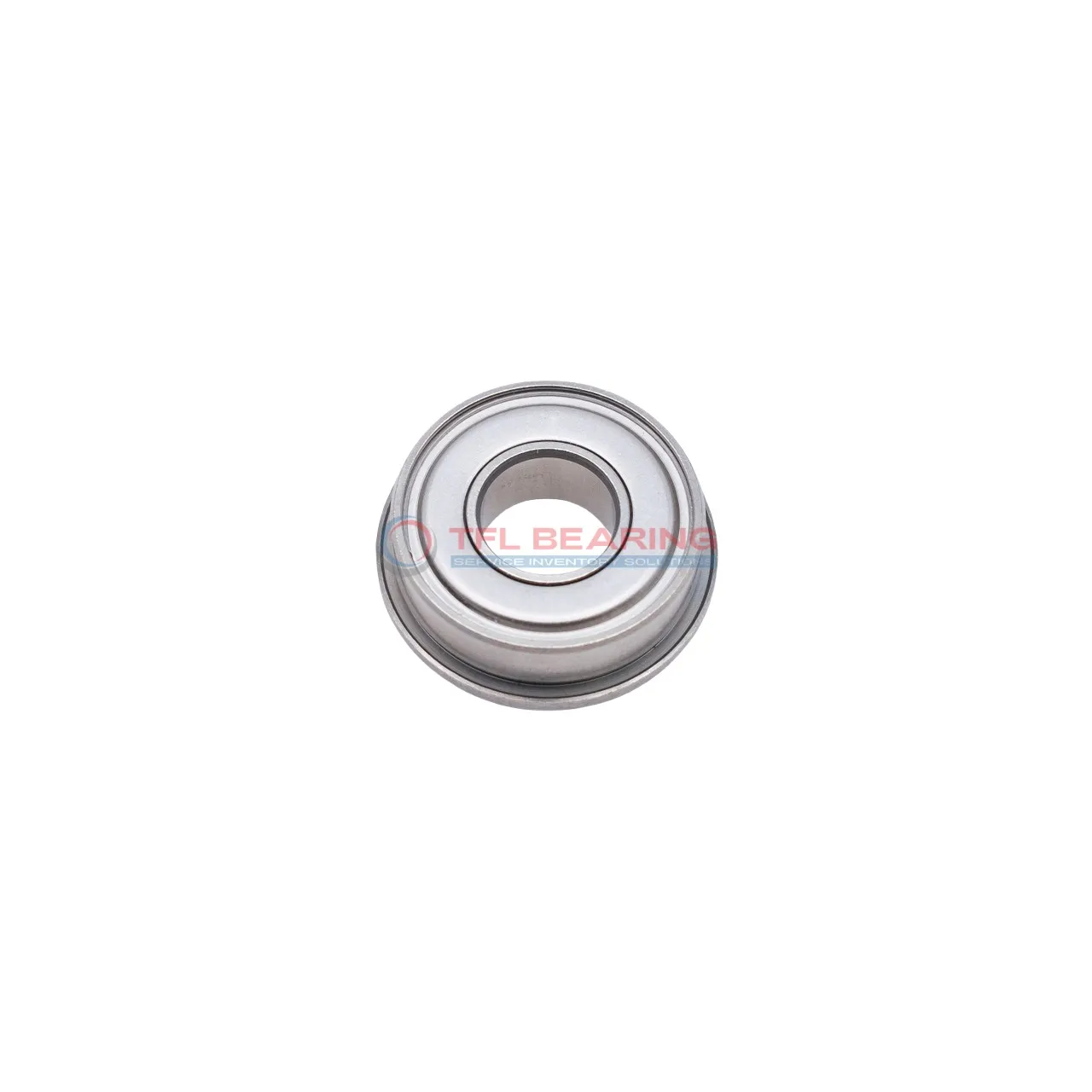

Metric Size Miniature Flanged Ball Bearings MF62zz

Metric Size Miniature Flanged Ball Bearings MF62zz

The MF62zz is a small, shielded ball bearing with a 2mm bore and 6mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 63 lbf and spins at speeds up to 75,000 RPM, making it suitable for high-speed applications.
Its stainless steel cage and shields protect against dust while maintaining smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.
With a lightweight design at just 0.45g, it’s ideal for precision devices like small motors or dental tools. Compliant with RoHS and REACH standards, it’s a reliable choice for compact machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MF62zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 7.2 mm
  • Flange Thickness 0.6 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 63 lbf
  • Static Radial Load 18 lbf
  • Max Speed 75000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.45 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 2.55
Metric Size Miniature Flanged Ball Bearings MF62zz dimension drawing
Download DWG Download PDF

Features

How Does MF62zz Bearing Reduce Friction?

MF62zz Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.
The stainless steel cage keeps the six balls perfectly aligned, reducing wear and enhancing efficiency.
With a maximum speed of 75,000 rpm, it delivers reliable performance in high-speed applications.

Application

Common Applications of MF62zz Bearing
MF62zz Bearing is widely used in small electric motors, such as those found in cooling fans and miniature appliances. Its compact size and shielded design make it ideal for spaces where dust protection is needed.

In consumer electronics, MF62zz Bearing ensures smooth operation in devices like printers and handheld tools. The high-speed capability allows for reliable performance in everyday gadgets.

For hobbyist projects, MF62zz Bearing is a go-to choice for model-making and DIY mechanisms. Its lightweight construction and durability make it suitable for intricate designs.

Automation systems benefit from MF62zz Bearing in precision components like small robotic arms. The chrome steel construction provides longevity even with frequent movement.
