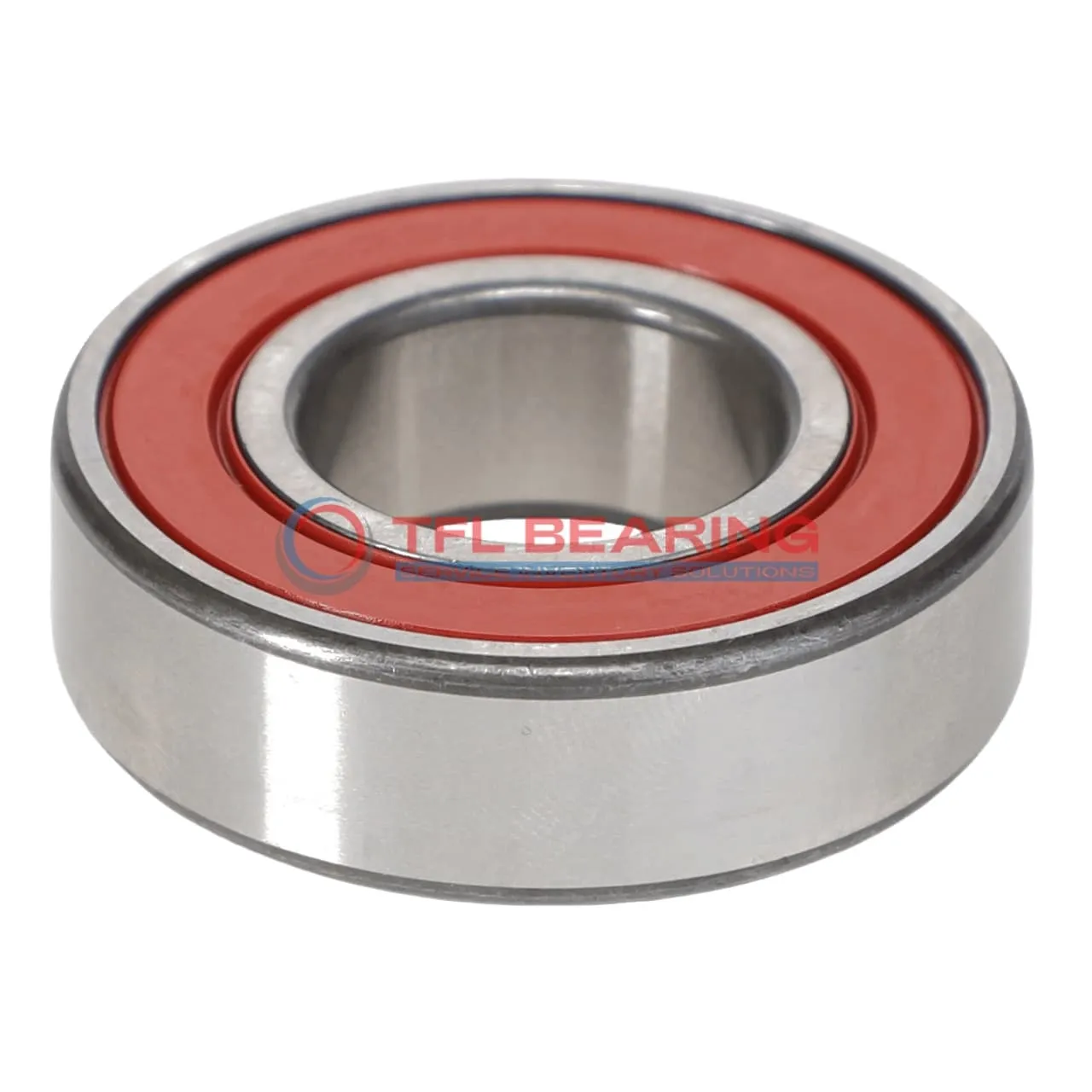

Single Row Deep Groove Ball Bearings 6214-RSJEM

The 6214-RSJEM is a sealed single-row deep groove ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13983 lbf and operates smoothly at speeds up to 5000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance in various conditions.

This bearing suits temperatures from -30°C to 120°C, fitting well in motors or pumps. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 1070g, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for most industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6214-RSJEM
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 70 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 125 mm
Outer Dia Tolerance -0.018mm to 0
Width 24 mm
Width Tolerance -0.150mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 13983 lbf
Static Radial Load 9914 lbf
Max Speed 5000 rpm
Weight 1070 g
price（$） 24.84

Single Row Deep Groove Ball Bearings 6214-RSJEM dimension drawing

Download DWG Download PDF

Features

How Does 6214-RSJEM Bearing Reduce Friction?

6214-RSJEM Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures durability and smooth operation under radial loads.
The bearing can handle dynamic radial loads up to 13983 lbf, making it suitable for various applications.
With a maximum speed of 5,000 rpm, it offers reliable performance in different conditions.

Application

Industrial Uses of 6214-RSJEM Bearing
This bearing is commonly used in conveyor systems and industrial fans, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

How Does 6214-RSJEM Bearing Improve Performance?
In automotive applications like electric motors, this bearing reduces friction for smoother operation. Its ABEC 1 tolerance provides reliable performance without unnecessary precision costs.

Perfect Fit for Automation: 6214-RSJEM Bearing
You’ll often find this model in robotic arms and packaging machines, where its radial load capacity handles repetitive movements well. The temperature range suits most factory conditions.

Medical vs Industrial: Where 6214-RSJEM Bearing Excels
While not for surgical tools, it works well in medical device motors and lab equipment. The sealed design is particularly useful in environments requiring cleanliness.

Essential Roles of 6214-RSJEM Bearing
In household appliances like washing machines, this bearing offers quiet operation and long service life. The static load capacity handles typical domestic use with ease.
