Metric Size Miniature Flanged Ball Bearings F609zz

The F609zz is a small, shielded ball bearing with a 9mm bore and 24mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 642 lbf and spins smoothly at speeds up to 32,000 RPM.

Its stainless steel shields protect against dust and debris, while the stainless steel cage ensures long-lasting performance. The bearing requires lubrication for optimal operation and works in temperatures from -30°C to 110°C.

With a compact width of just 7mm and a lightweight design at 17.40g, it’s ideal for small machinery or precision tools. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number F609zz
Brand TFL
System of Measurement Metric
Bearing Type Ball
Bore Dia 9 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 24 mm
Outer Dia Tolerance -0.008mm to 0
Width 7 mm
Width Tolerance -0.12mm to 0
Flange Outer Dia 27 mm
Flange Thickness 1.5 mm
Radial Clearance 0.002mm to 0.013mm
Ball Qty 7
Ball Dia 3.9690 mm
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Shielded
Tolerance Class ABEC1
Radial Clearance Trade No MC3
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 642 lbf
Static Radial Load 260 lbf
Max Speed 32000 rpm
Temperature Range -30° to 110 °C
Lubrication Required
RoHS Compliant
REACH Compliant
Weight 17.40 g
Shield Material 300 Series Stainless Steel
Price（$） 1.35

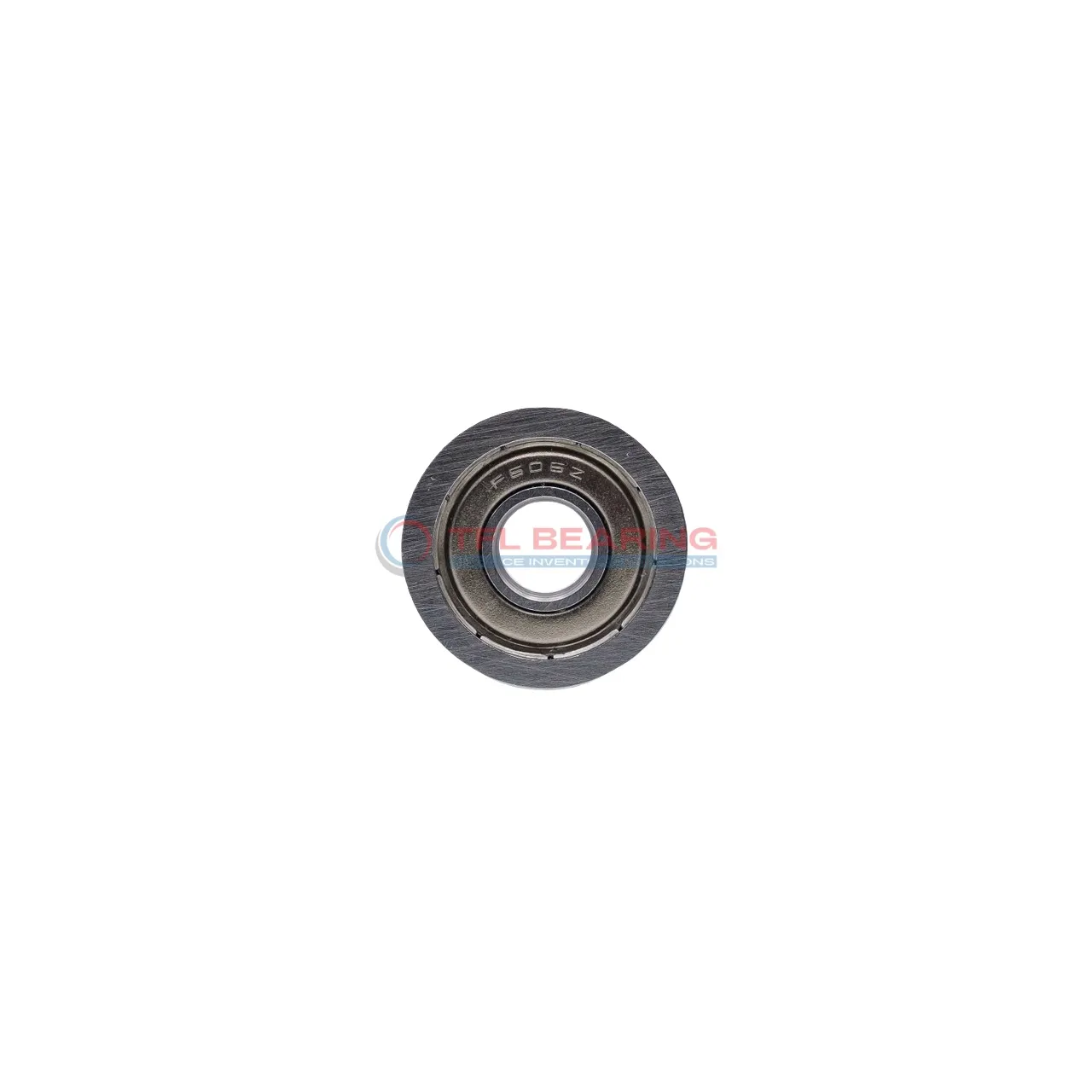

Metric Size Miniature Flanged Ball Bearings F609zz dimension drawing

Download DWG Download PDF

Features

How Does F609zz Bearing Reduce Friction?

F609zz Bearing features a shielded design with stainless steel shields, protecting against contaminants while reducing friction.
Its chrome steel construction ensures smooth rotation, even at high speeds up to 32,000 rpm.
The precision-engineered ball arrangement minimises wear, enhancing operational efficiency.
With a dynamic radial load capacity of 642 lbf, it delivers reliable performance in various applications.

Application

Common Applications of F609zz Bearing
F609zz Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its shielded design helps keep contaminants out while maintaining smooth rotation.

In automation systems, F609zz Bearing supports lightweight robotic arms and conveyor belt rollers. The high-speed capability makes it suitable for precision movements in compact spaces.

For DIY projects, F609zz Bearing works well in 3D printers and small hobby machinery. The metric sizing and stainless steel cage ensure durability even with frequent use.

What Makes F609zz Bearing a Preferred Choice?
F609zz Bearing’s chrome steel construction provides reliable performance in computer cooling fans and small gearboxes. The ABEC1 tolerance ensures consistent operation without excessive noise.

Its compact size and shielded design make F609zz Bearing ideal for tight spaces in consumer electronics. The flange outer diameter adds extra stability during high-speed rotations.

Built for Heavy-Duty Use: F609zz Bearing
F609zz Bearing handles radial loads effectively in industrial blowers and small pumps. The stainless steel shields protect against dust and debris in demanding environments.

With a max speed of 32000 rpm, F609zz Bearing suits applications requiring rapid motion, like dental handpieces. The lightweight design doesn’t compromise on strength or longevity.
