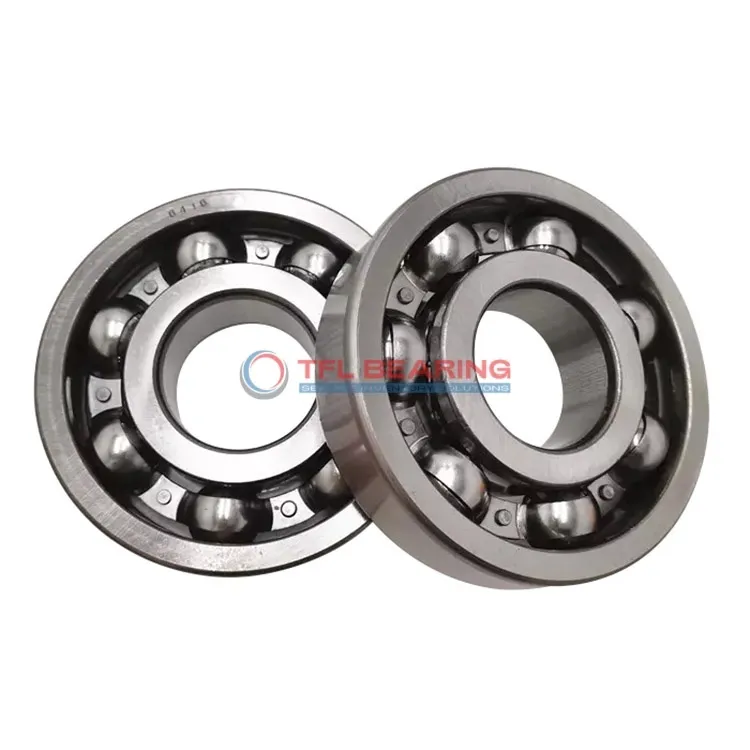

Single Row Deep Groove Ball Bearings 6208/C4VQ557

The 6208/C4VQ557 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility for various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for machinery like electric motors or pumps where radial loads are common. Weighing 366g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6208/C4VQ557
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 80 mm
Outer Dia Tolerance -0.013mm to 0
Width 18 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 6542 lbf
Static Radial Load 4002 lbf
Max Speed 8300 rpm
Weight 366 g
price（$） 6.687

Single Row Deep Groove Ball Bearings 6208/C4VQ557 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6208/C4VQ557 Bearing

6208/C4VQ557 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 6542 lbf, making it suitable for various industrial applications.

The single-row deep groove design ensures smooth operation and reduces friction.
With a maximum speed of 8,300 rpm, it balances performance and durability.

6208/C4VQ557 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its open seal type allows for easy maintenance and inspection.

The C4 radial clearance provides flexibility in high-speed operations.
This design helps extend the bearing’s service life under demanding conditions.

Application

Common Applications of 6208/C4VQ557 Bearing
The 6208/C4VQ557 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its deep groove design handles radial loads efficiently. Its open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6208/C4VQ557 Bearing is often found in wheel hubs and transmissions, providing reliable performance under varying loads. The C4 radial clearance ensures smooth operation even under thermal expansion.

For home appliances like washing machines, 6208/C4VQ557 Bearing offers durability and quiet performance. Its chrome steel construction ensures long service life, even with frequent use.

Automation systems benefit from 6208/C4VQ557 Bearing’s precision, particularly in conveyor belts and robotic arms. The ABEC 1 tolerance class guarantees consistent performance in repetitive tasks.

Medical equipment, such as diagnostic devices, relies on 6208/C4VQ557 Bearing for its smooth rotation and low noise. The wide temperature range makes it adaptable to various clinical environments.
