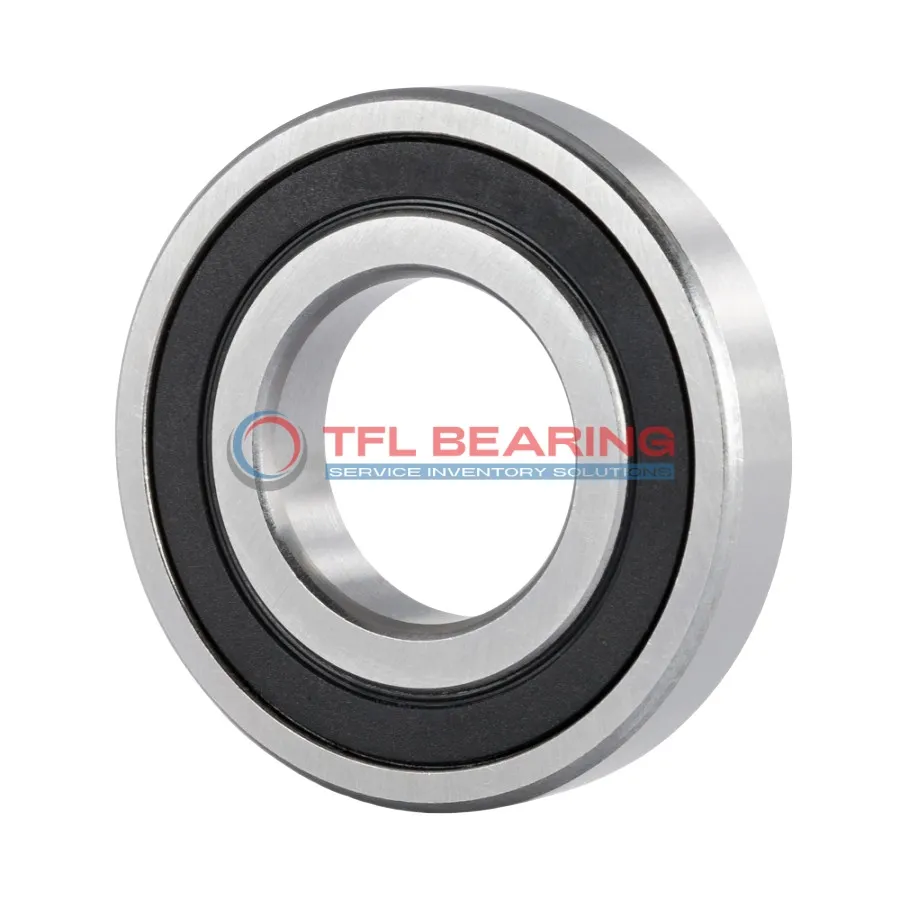

Single Row Deep Groove Ball Bearings 6209-2RS1/C3

Single Row Deep Groove Ball Bearings 6209-2RS1/C3

The 6209-2RS1/C3 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 clearance allows for slight thermal expansion, ideal for varying temperatures.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Suitable for electric motors, pumps, or gearboxes where reliable radial load support is needed.

Weighing 407g, it’s robust yet lightweight. Compliant with RoHS and REACH standards, it performs well in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 10.107
Single Row Deep Groove Ball Bearings 6209-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6209-2RS1/C3 Bearing

6209-2RS1/C3 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7351 lbf, ensuring reliable performance in various applications.

The sealed design of 6209-2RS1/C3 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 7,700 rpm, it balances efficiency and long service life.

6209-2RS1/C3 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides optimal performance under varying load conditions.

Application

Common Applications of 6209-2RS1/C3 Bearing
This sealed bearing is a go-to choice for industrial machinery like pumps and electric motors, where its C3 clearance handles moderate radial loads with ease. The chrome steel construction ensures durability in dusty or humid environments.

Where Is 6209-2RS1/C3 Bearing Used?
You’ll often spot it in automotive components such as alternators or water pumps, thanks to its reliable sealed design that keeps contaminants out. The metric sizing fits seamlessly into European and Asian vehicle systems.

Built for Heavy-Duty Use: 6209-2RS1/C3 Bearing
In agricultural equipment like harvesters, this bearing’s robust build withstands vibration and variable loads. Its temperature range (-30° to 120°C) makes it adaptable to seasonal fieldwork.

Light-Duty vs Heavy-Duty: Best Uses for 6209-2RS1/C3 Bearing
While it excels in conveyor systems for light packaging, it’s equally at home in construction gear like compactors. The ABEC 1 tolerance strikes a balance between precision and cost-effectiveness.

Perfect Fit for Automation: 6209-2RS1/C3 Bearing
Robotic arms benefit from its smooth rotation and sealed protection against workshop debris. The 19mm width allows compact integration without sacrificing load capacity.
