Metric Size Miniature Flanged Ball Bearings F609

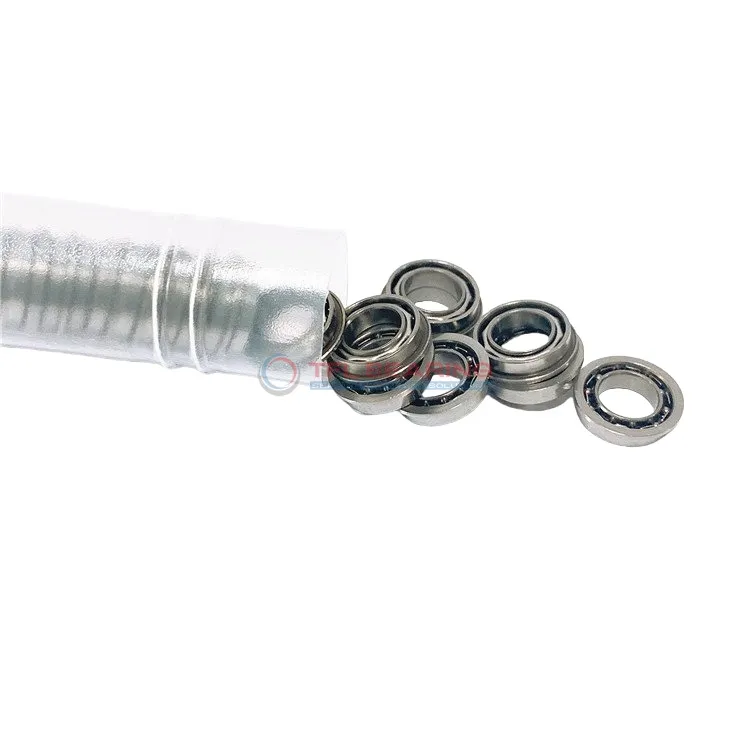

Metric Size Miniature Flanged Ball Bearings F609

The F609 is a single-row radial ball bearing with a 9mm bore and 24mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 642 lbf and can spin at speeds up to 32,000 RPM, making it suitable for high-speed applications.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With a lightweight build at just 16.10g, it’s ideal for compact machinery or devices where space is limited. The flange outer diameter of 27mm adds stability during installation.

Compliant with RoHS and REACH standards, this bearing is a reliable choice for small motors or precision instruments. Its ABEC1 tolerance class ensures consistent performance for everyday industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F609
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 27 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 3.9690 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 642 lbf
  • Static Radial Load 260 lbf
  • Max Speed 32000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 16.10 g
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F609 dimension drawing
Download DWG Download PDF

Features

How Does F609 Bearing Reduce Friction?

F609 Bearing features a single-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its precision-engineered cage keeps the seven balls perfectly aligned, minimising friction during operation.

The open seal type allows for easy lubrication, maintaining optimal performance even at high speeds.
With a maximum speed of 32,000 rpm, F609 Bearing delivers reliable efficiency in various applications.

The chrome steel construction resists wear, extending the bearing’s service life under dynamic loads.
Its compact size and lightweight design make it suitable for space-constrained installations.

Application

Common Applications of F609 Bearing
F609 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its compact size and high-speed capability make it a reliable choice for these everyday devices.

In industrial settings, F609 Bearing fits well in light machinery like conveyor rollers and small pumps. The open design allows for easy lubrication, ensuring smooth operation over time.

For hobbyist projects, F609 Bearing is popular in DIY robotics and model-making due to its precise radial clearance. The chrome steel construction offers durability without adding unnecessary weight.

Automotive enthusiasts often choose F609 Bearing for custom applications in motorcycles and small engine components. Its metric sizing and ABEC1 tolerance provide consistent performance in these demanding environments.
