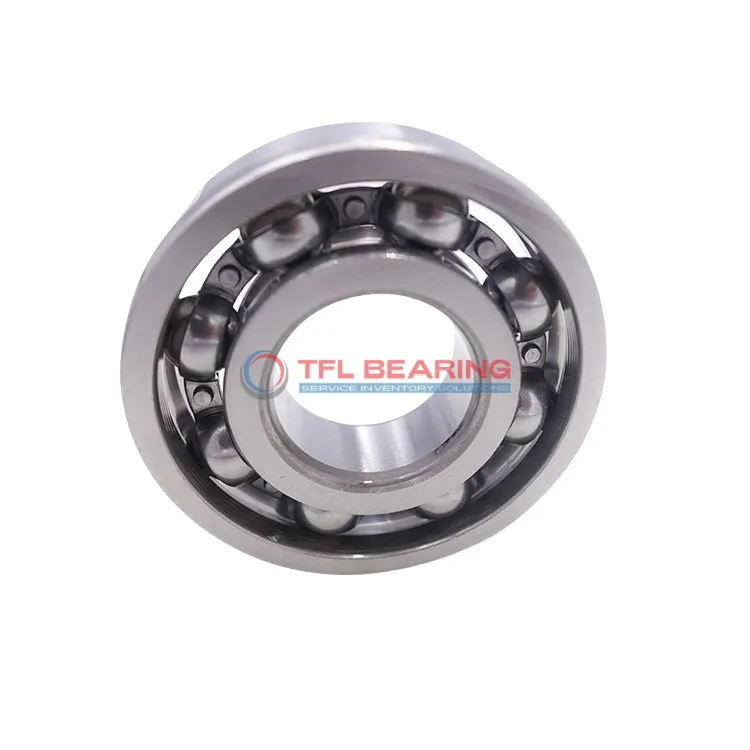

Single Row Deep Groove Ball Bearings 6219/C3VK174

Single Row Deep Groove Ball Bearings 6219/C3VK174

The 6219/C3VK174 is a single-row deep groove ball bearing with a 95mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24504 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or electric motors where radial loads are common.

Weighing 2590g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6219/C3VK174
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 32 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 24504 lbf
  • Static Radial Load 18412 lbf
  • Max Speed 3800 rpm
  • Weight 2590 g
  • price（$） 88.596
Single Row Deep Groove Ball Bearings 6219/C3VK174 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6219/C3VK174 Bearing

6219/C3VK174 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 24504 lbf, ensuring reliable performance in various applications.

The single row deep groove design allows for smooth operation and easy installation.
With a maximum speed of 3,800 rpm, it balances durability and efficiency.

6219/C3VK174 Bearing operates in temperatures from -30°C to 120°C, making it versatile for different environments.
Its C3 radial clearance provides optimal performance under varying load conditions.

The open seal type simplifies maintenance while the chrome steel cage ensures long-lasting alignment.
This design reduces wear and extends the bearing’s service life.

Application

Industrial Uses of 6219/C3VK174 Bearing
6219/C3VK174 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 6219/C3VK174 Bearing a Preferred Choice?
In automotive applications, 6219/C3VK174 Bearing fits well in wheel hubs and transmissions due to its robust chrome steel construction. The C3 radial clearance ensures smooth performance even under varying thermal conditions.

Perfect Fit for Automation: 6219/C3VK174 Bearing
For automated systems, 6219/C3VK174 Bearing works reliably in conveyor belts and robotic arms, where consistent radial load support is needed. Its ISO P0 tolerance class makes it suitable for precision-driven environments.

Light-Duty vs Heavy-Duty: Best Uses for 6219/C3VK174 Bearing
In light-duty applications like household appliances, 6219/C3VK174 Bearing offers quiet operation and durability. For heavy-duty uses such as industrial gearboxes, its high dynamic radial load capacity ensures long-term reliability.
