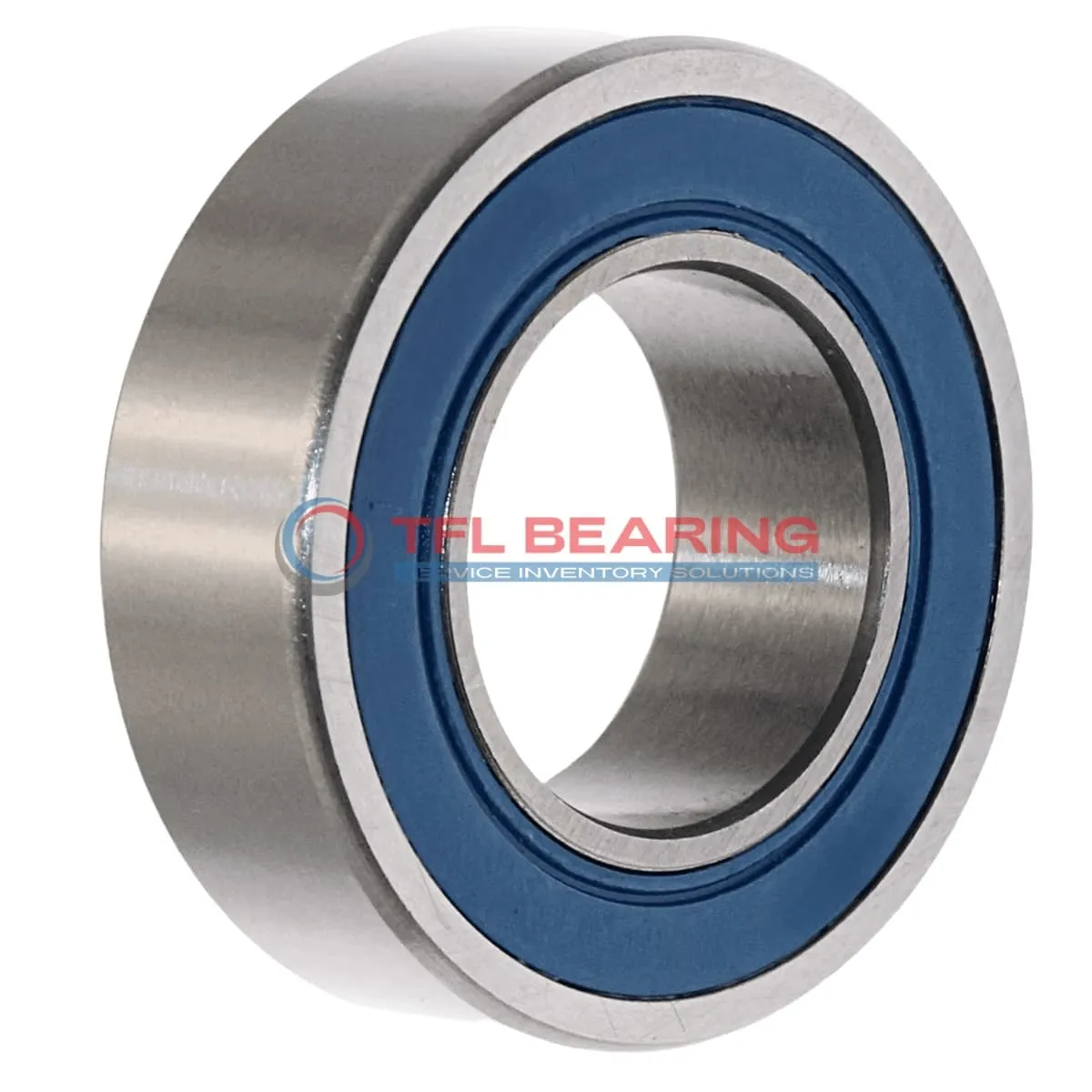

Single Row Deep Groove Ball Bearings 6310-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6310-2RS1/C3W64

The 6310-2RS1/C3W64 is a single-row deep groove ball bearing with a 50mm bore and 110mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 13938 lbf and runs smoothly at speeds up to 6000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for electric motors or pumps where radial loads and contamination resistance are key.

Weighing 1050g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6310-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13938 lbf
  • Static Radial Load 861 lbf
  • Max Speed 6000 rpm
  • Weight 1050 g
  • price（$） 25.344
Single Row Deep Groove Ball Bearings 6310-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6310-2RS1/C3W64 Bearing Reduce Friction?

6310-2RS1/C3W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction enhances durability, making it suitable for radial load applications.
The bearing’s C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 6,000 rpm, it offers reliable efficiency for industrial use.

Application

Common Applications of 6310-2RS1/C3W64 Bearing
6310-2RS1/C3W64 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 6310-2RS1/C3W64 Bearing fits well in wheel hubs and transmission systems, providing reliable radial load support. Its C3 clearance allows for slight misalignments, making it adaptable to various vehicle designs.

For automation systems, 6310-2RS1/C3W64 Bearing works smoothly in robotic arms and assembly lines, thanks to its consistent performance. The chrome steel construction adds durability, reducing the need for frequent replacements.

Around the home, 6310-2RS1/C3W64 Bearing can be found in appliances like washing machines and power tools, where quiet operation is appreciated. The sealed design also helps protect against moisture and dirt in everyday use.
