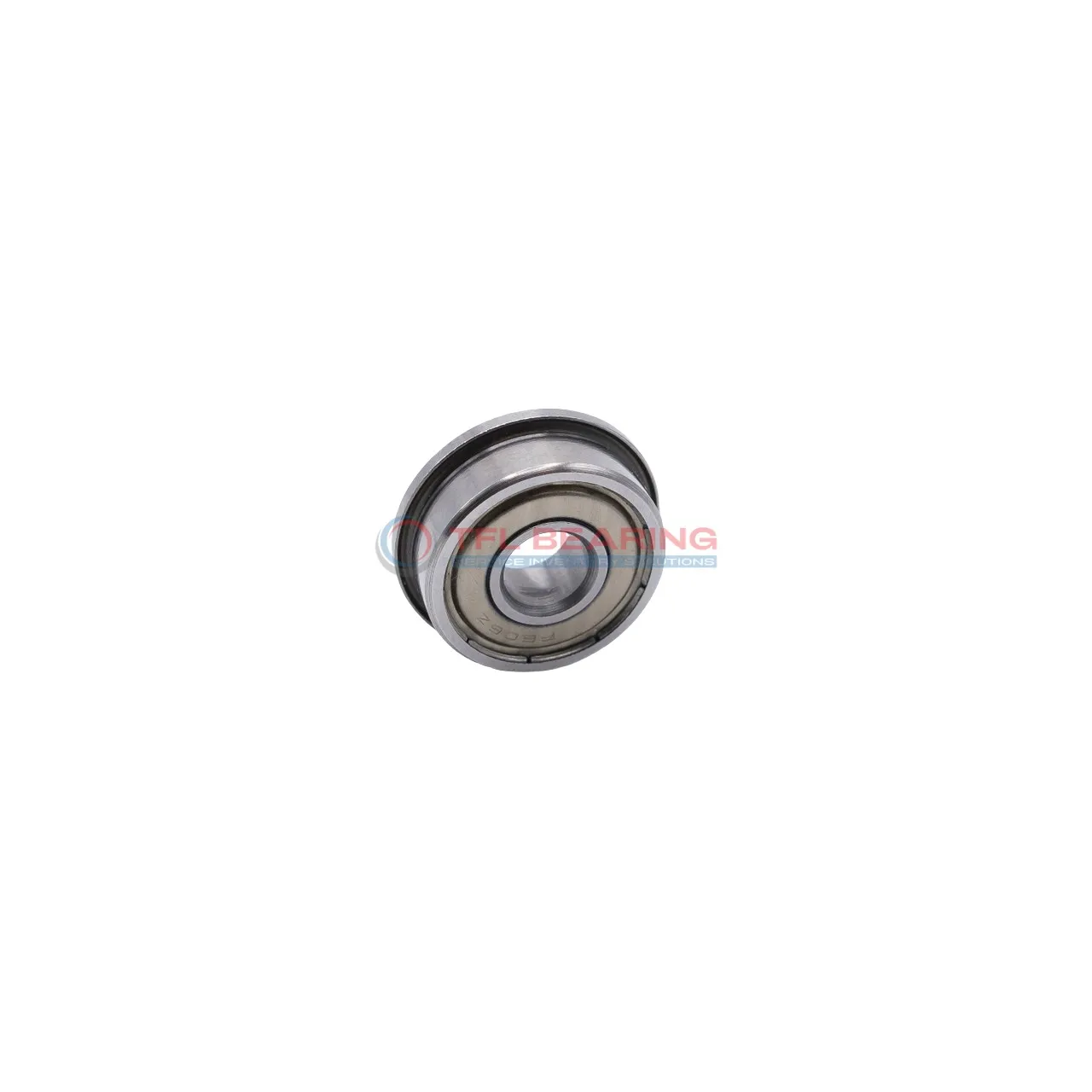

Metric Size Miniature Flanged Ball Bearings F608zz

Metric Size Miniature Flanged Ball Bearings F608zz

The F608zz is a small, shielded ball bearing with an 8mm bore and 22mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its stainless steel shields protect against dust while keeping lubrication in place, and the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

This model is lightweight at just 14.20g, making it ideal for compact applications like small motors or skateboards. Compliant with RoHS and REACH standards, it’s a safe and practical choice for everyday use.

The flange design adds stability, and the ABEC1 tolerance ensures consistent performance. Easy to maintain, it’s a versatile option for both hobbyists and professionals.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F608zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 25 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 3.9690 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 14.20 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F608zz dimension drawing
Download DWG Download PDF

Features

How Does F608zz Bearing Reduce Friction?

F608zz Bearing features a shielded design with stainless steel shields, protecting against dust while maintaining smooth operation.
Its chrome steel construction ensures low friction, making it ideal for high-speed applications up to 34,000 rpm.
The precision ABEC1 tolerance and MC3 radial clearance provide consistent performance under radial loads.
With a dynamic radial load capacity of 630 lbf, it balances durability and efficiency.

Application

Common Applications of F608zz Bearing
F608zz Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its shielded design helps keep contaminants out while maintaining smooth rotation.

In automation systems, F608zz Bearing is a reliable choice for lightweight robotic arms and conveyor belt rollers. The high-speed capability makes it suitable for precision movements in tight spaces.

For hobbyist projects like RC cars or drones, F608zz Bearing offers a balance of durability and affordability. The metric sizing ensures easy integration with standard components.

Where Is F608zz Bearing Used?
You’ll often spot F608zz Bearing in office equipment like printers and scanners, where quiet operation matters. The stainless steel cage reduces friction for longer service life.

In DIY workshops, F608zz Bearing works well for jigs and small machinery upgrades. Its compact size doesn’t compromise on load capacity for light to medium tasks.

Built for Versatility: F608zz Bearing
F608zz Bearing fits neatly into cooling fans for computers or industrial cabinets, thanks to its flanged outer ring. The chrome steel construction handles moderate heat without losing performance.

Medical devices like dental handpieces sometimes use F608zz Bearing for its consistent rotation at high speeds. The shielded seals help maintain hygiene in sensitive environments.

Light-Duty vs Heavy-Duty: Best Uses for F608zz Bearing
While F608zz Bearing excels in low-load scenarios like turntables or small gearboxes, it’s not meant for heavy industrial presses. The ABEC1 tolerance strikes a good balance for most everyday applications.

For bicycle components like freewheel mechanisms, F608zz Bearing provides smooth pedaling with minimal maintenance. Just remember it requires regular lubrication for optimal longevity.
