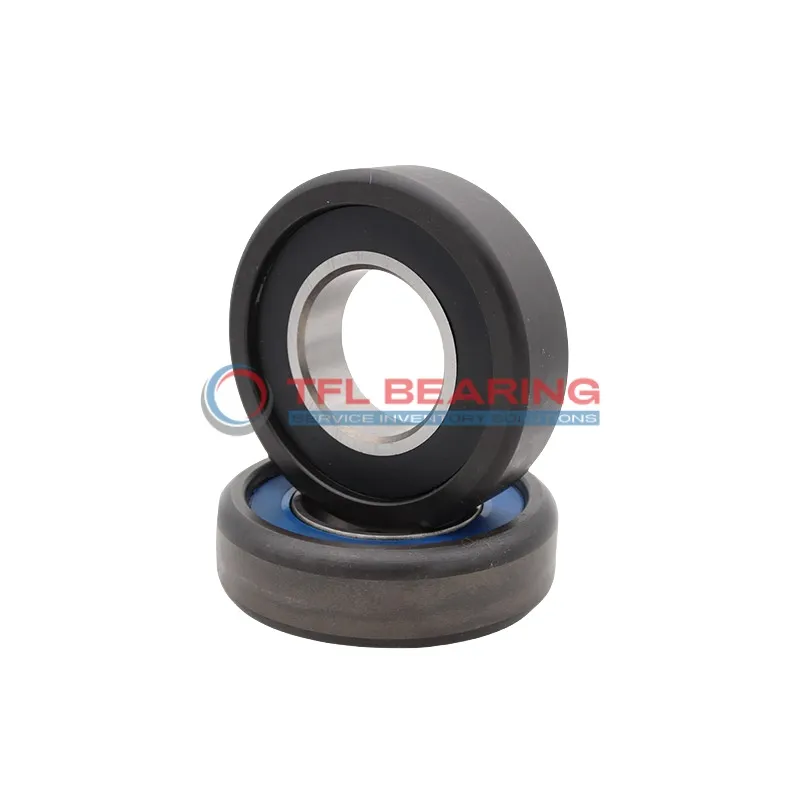

Mast Guide Bearings MG 307 T‑15

Mast Guide Bearings MG 307 T‑15

The MG 307 T-15 mast guide bearing is a sturdy unit measuring 35mm in inner diameter and 95.7mm in outer diameter, with a width of 25mm. Made for heavy-duty use, it supports dynamic loads up to 33,540 N and static loads up to 19,230 N.

Its compact design features a 5mm radius, ensuring smooth operation in tight spaces. The bearing weighs just under 1kg, making it easy to handle during installation.

This model is ideal for mast guide applications where reliability and durability are key. Its robust construction suits industrial environments with high load demands.

Compatible with TFL and OEM systems, it’s a practical choice for replacements or new installations. The bearing’s balanced performance makes it a dependable option for various machinery setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 T‑15
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 95.70 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 25.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 0.9979 Kg
Mast Guide Bearings MG 307 T‑15 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 T‑15 Bearing Engineered for Reliability?

MG 307 T‑15 Bearing features a robust design with dimensions of 35.000 mm x 95.70 mm x 25.000 mm, ensuring a precise fit for guide applications.
Its dynamic capacity of 33,540 N and static capacity of 19,230 N make it suitable for heavy-duty operations.
The 5 mm radius enhances durability, reducing stress concentrations during use.
Weighing 0.9979 kg, it balances strength and practicality for various industrial needs.

Application

Industrial Uses of MG 307 T‑15 Bearing
MG 307 T‑15 Bearing is commonly used in construction equipment, such as mast guide systems, where its robust design handles heavy loads with ease. The 35mm bore size ensures a secure fit for various industrial applications.

In automotive settings, MG 307 T‑15 Bearing supports steering columns and suspension components, thanks to its high dynamic capacity of 33,540 N. The 95.70mm outer diameter provides stability in demanding conditions.

For automation systems, MG 307 T‑15 Bearing’s precise dimensions (25mm width) make it ideal for robotic arms and conveyor belts. Its 5mm radius allows smooth movement in tight spaces.

Key Fields for MG 307 T‑15 Bearing
MG 307 T‑15 Bearing excels in agricultural machinery, particularly in grain elevators and harvesters, where durability is key. The 21mm inner ring width offers a balance between strength and compactness.

In material handling equipment, MG 307 T‑15 Bearing’s 0.9979 Kg weight ensures it doesn’t add unnecessary bulk while maintaining performance. The static capacity of 19,230 N makes it reliable for stationary loads.
