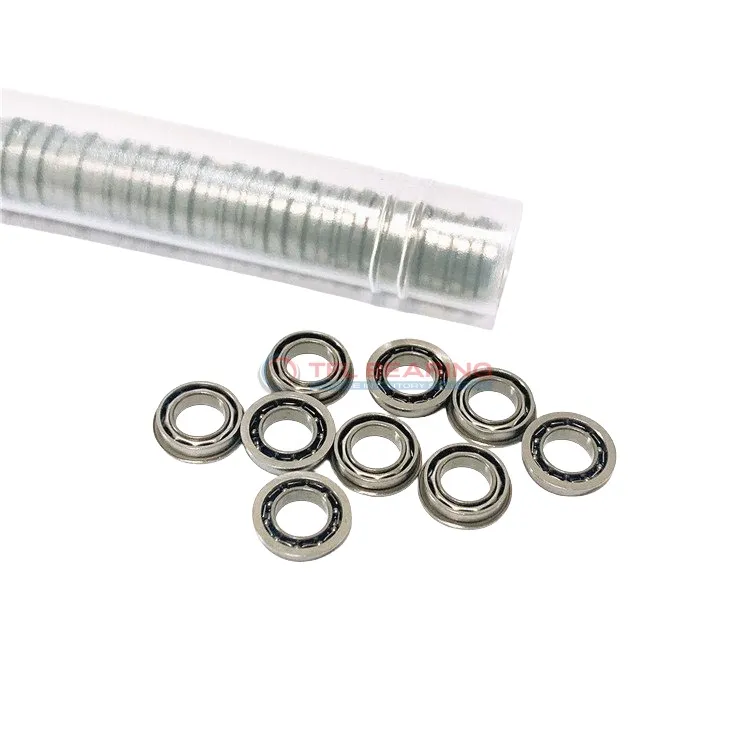

Metric Size Miniature Flanged Ball Bearings F602

Metric Size Miniature Flanged Ball Bearings F602

The F602 is a small radial ball bearing with a 2mm bore and 7mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 74 lbf and spins at speeds up to 60,000 RPM, making it suitable for high-speed applications.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With a lightweight construction of just 0.6g, it’s ideal for compact devices like small motors or precision instruments. The flange design helps keep the bearing securely in place during operation.

Compliant with RoHS and REACH standards, this bearing is a reliable choice for both industrial and hobbyist projects. Its simple maintenance and robust performance make it a practical option for various uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F602
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 7 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.8 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 8.5 mm
  • Flange Thickness 0.7 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 74 lbf
  • Static Radial Load 23 lbf
  • Max Speed 60000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.6 g
  • Price（$） 2.55
Metric Size Miniature Flanged Ball Bearings F602 dimension drawing
Download DWG Download PDF

Features

How Does F602 Bearing Achieve High-Speed Performance?

F602 Bearing is crafted with chrome steel rings and balls, ensuring smooth operation at speeds up to 60,000 rpm.
Its single-row design and stainless steel cage maintain stability, even under high rotational stress.
The radial clearance of 0.002mm to 0.013mm allows for precise movement, ideal for delicate applications.
With a dynamic radial load capacity of 74 lbf, it balances speed and durability.

Application

Common Applications of F602 Bearing
F602 Bearing is widely used in small electric motors, such as those found in cooling fans and handheld devices. Its compact size and high-speed capability make it ideal for applications where space is limited.

In robotics, F602 Bearing ensures smooth movement in miniature joints and actuators. The chrome steel construction provides durability even in continuous operation scenarios.

For medical instruments like dental tools, F602 Bearing offers reliable performance due to its precision engineering. The open design allows for easy lubrication, extending service life in critical applications.

In consumer electronics, F602 Bearing is commonly found in optical drives and small printers. Its lightweight design doesn’t compromise on load capacity, making it a versatile choice.

Automotive applications include small sensors and fuel system components where F602 Bearing’s resistance to wear is beneficial. The metric sizing ensures compatibility with various international vehicle standards.
