Flanged Deep Groove Ball Bearings W 619/6 R

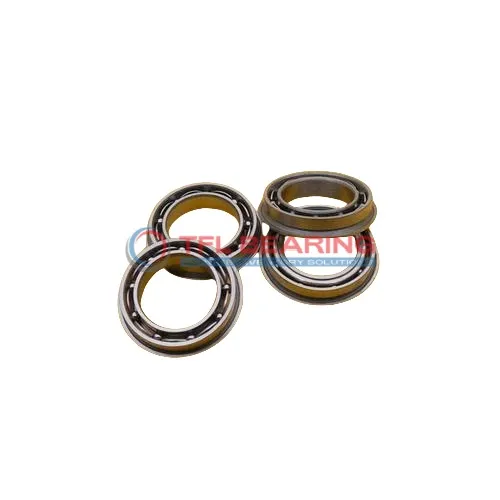

Flanged Deep Groove Ball Bearings W 619/6 R

The W 619/6 R is a compact flanged deep groove ball bearing, measuring 6mm by 15mm with a 5mm width. Its stainless steel construction ensures durability and resistance to corrosion.

This bearing handles radial loads up to 171 lbf and can reach speeds of 63,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication and maintenance.

The flange adds stability, helping the bearing stay securely in place during operation. It works well in temperatures ranging from -30°C to 120°C.

Ideal for small machinery or precision instruments where space is limited. Weighing just 0.0039kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 619/6 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 17 mm
  • Flange Thickness 1.2 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 60 lbf
  • Max Speed 63000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0039 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 619/6 R dimension drawing
Download DWG Download PDF

Features

Why Choose W 619/6 R Bearing for Precision Tasks?

W 619/6 R Bearing is crafted with stainless steel rings and balls, ensuring precise performance in radial load applications.
Its compact size of 6 mm×17 mm×5 mm makes it ideal for space-constrained environments.

The open design allows for easy lubrication, enhancing its efficiency and longevity.
With a maximum speed of 63,000 rpm, it delivers reliable operation in high-speed scenarios.

W 619/6 R Bearing’s flange outer dia of 17 mm provides secure mounting, reducing misalignment risks.
Its static radial load capacity of 60 lbf ensures stability in various applications.

Application

Common Applications of W 619/6 R Bearing
W 619/6 R Bearing is widely used in small electric motors, such as those found in household appliances or office equipment. Its compact size and stainless steel construction make it suitable for environments where corrosion resistance is important.

In automation systems, W 619/6 R Bearing provides smooth rotation for components like miniature conveyor belts or robotic arms. The flange design helps with easy mounting and alignment in tight spaces.

For medical devices, W 619/6 R Bearing’s precision performance works well in dental tools or small diagnostic equipment. The open design allows for proper cleaning, which is essential in healthcare settings.

You’ll also find W 619/6 R Bearing in consumer electronics like computer cooling fans, where its low noise operation and durability are valued. The metric sizing ensures compatibility with various international product designs.
