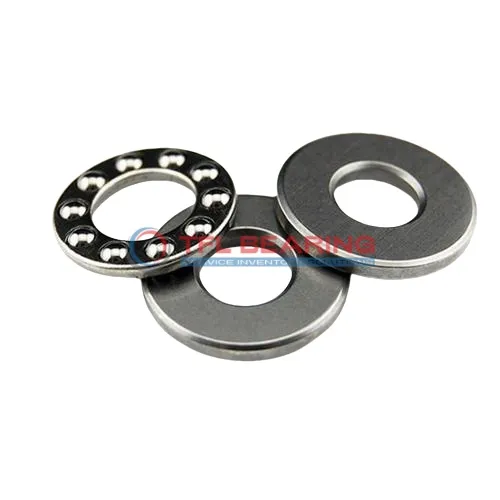

Metric Single Direction Thrust Ball Bearing 1113

Metric Single Direction Thrust Ball Bearing 1113

The 1113 is a single-direction thrust ball bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 3985 lbf and operates smoothly at speeds up to 3280 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with moderate thrust loads, such as pumps or compressors.

Weighing 0.77kg, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1113
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 27.0 mm
  • Width Tolerance +0.02mm to -0.3mm
  • Inner Dia Housing Washer 65.2 mm
  • Chamfer Dimension 1 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 3985 lbf
  • Static Thrust Load 28400 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3280 rpm
  • Weight 0.77 kg

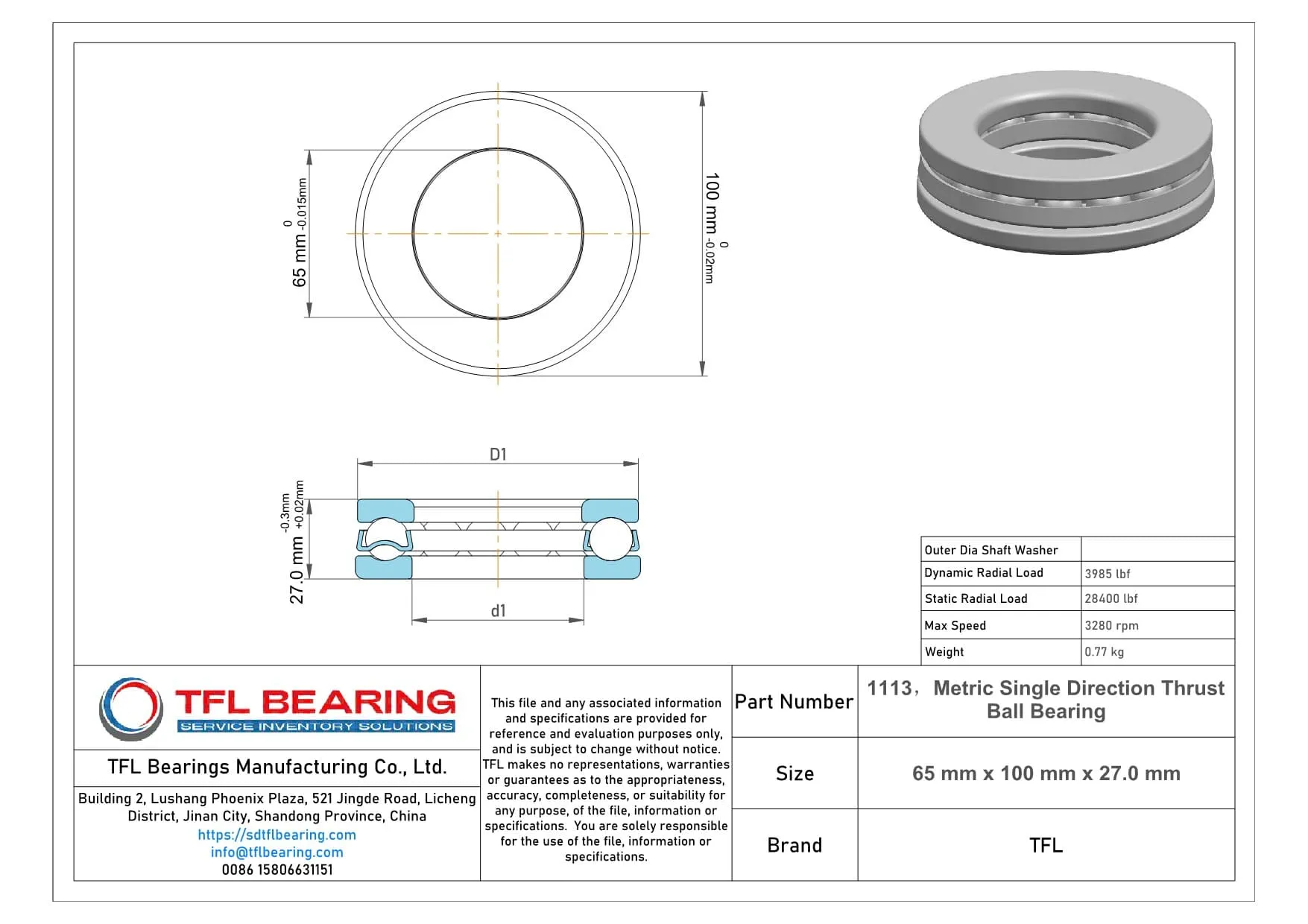

Metric Single Direction Thrust Ball Bearing 1113 dimension drawing
Download DWG Download PDF

Features

What Makes 1113 Bearing Suitable for High-Temperature Applications?

1113 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high temperatures.
Its temperature range of -30° to 110°C ensures stable performance in various industrial environments.

The open seal design allows for easy lubrication, maintaining smooth operation under heavy thrust loads.
With a dynamic thrust load capacity of 3985 lbf, it handles demanding applications reliably.

The chrome steel cage ensures proper ball alignment, reducing friction and extending service life.
Its maximum speed of 3,280 rpm balances efficiency with durability.

Application

Industrial Uses of 1113 Bearing
1113 Bearing is commonly used in heavy machinery like hydraulic presses and industrial pumps, where its high static thrust load capacity handles substantial axial forces. The open design simplifies lubrication, ensuring long service life in demanding conditions.

Where Is 1113 Bearing Used?
In automotive applications, 1113 Bearing fits well in clutch mechanisms and gearboxes, providing reliable performance under continuous thrust loads. Its metric dimensions make it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: 1113 Bearing
For automation systems, 1113 Bearing supports robotic arms and conveyor belts, where its chrome steel construction ensures durability. The precise tolerances help maintain smooth operation in high-precision environments.

Medical vs Industrial: Where 1113 Bearing Excels
In medical devices like MRI machines, 1113 Bearing offers stable performance due to its consistent load handling. Meanwhile, in industrial settings, it excels in equipment requiring robust axial support, such as compressors.

Practical Applications of 1113 Bearing
1113 Bearing is ideal for household appliances like washing machines, where its thrust load capacity handles spinning motions effectively. The temperature range also makes it suitable for environments with varying thermal conditions.
