Metric Single Direction Thrust Ball Bearing 1010

Brand: TFL Bearing Interchangeable: SKF 1010 50 mm × 74 mm × 18 mm Metric Open
Part number: 1010
Metric Single Direction Thrust Ball Bearing 1010
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia74 mm
Outer Dia Tolerance-0.015mm to 0
Width18 mm
Width Tolerance+0.02mm to -0.25mm
Inner Dia Housing Washer50.2 mm
Chamfer Dimension0.5 mm
Performance
Dynamic Thrust Load1,665 lbf
Static Thrust Load11,090 lbf
Temperature Range-30° to 110 °C
Max Speed4,630 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionThrust
Seal TypeOpen
LubricationRequired
Weight0.24 kg
Material
Ring Material52100 Chrome Steel
Ball Material52100 Chrome Steel
Cage MaterialChrome Steel
Compliance
RoHSCompliant
REACHCompliant

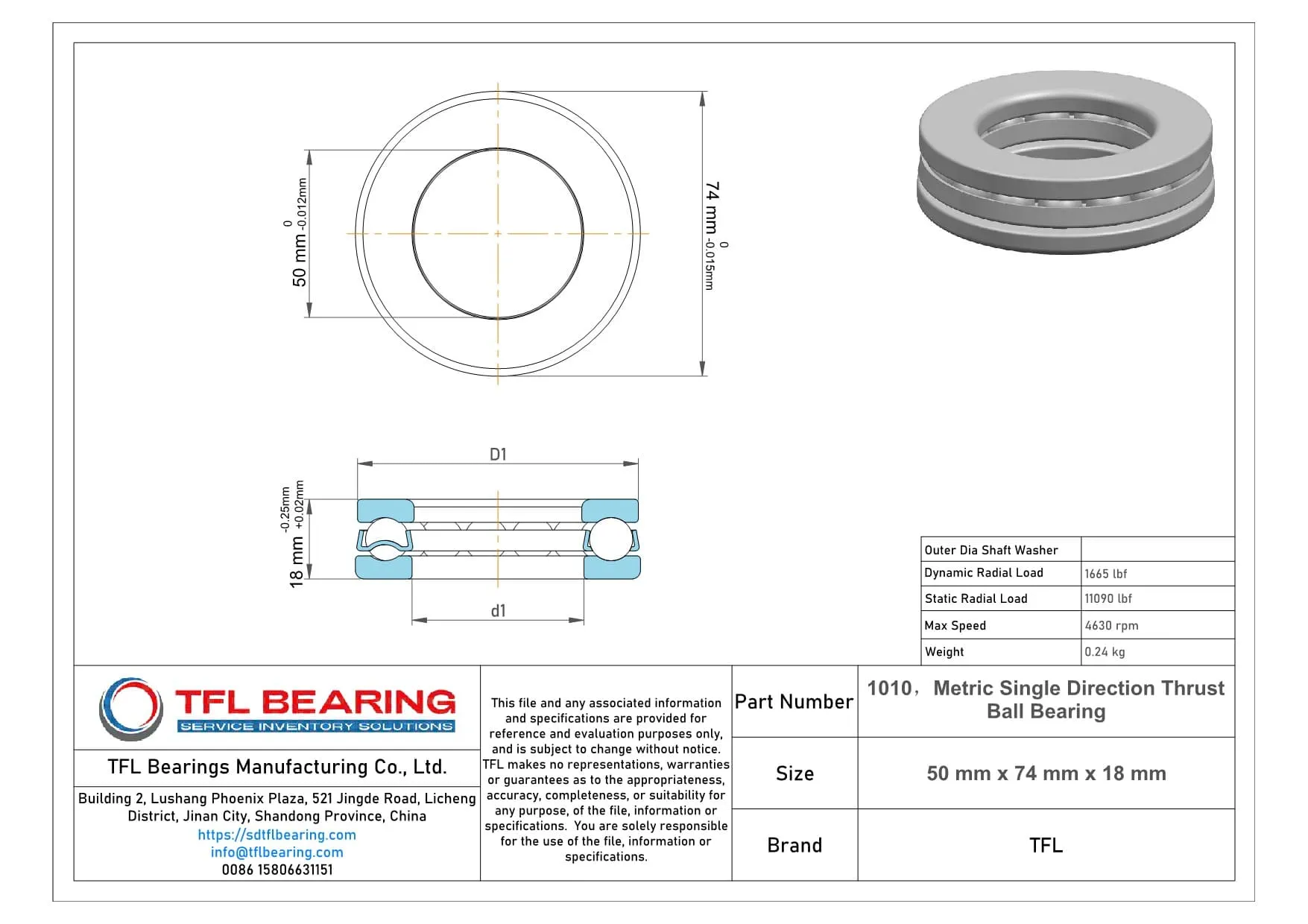

Dimension drawing · click to enlarge

Description

The 1010 is a single-direction thrust ball bearing with a 50mm bore and 74mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 1665 lbf and operates smoothly at speeds up to 4630 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like pumps or compressors where single-direction thrust loads are present.

Weighing 0.24kg, it balances strength and portability. Compliant with RoHS and REACH standards for safe usage.

Features

Why Choose 1010 Bearing for Precision Tasks?

1010 Bearing is crafted from 52100 chrome steel, offering reliable performance in thrust applications.

Its dynamic thrust load capacity of 1665 lbf ensures smooth operation under pressure.

The chrome steel cage maintains ball alignment, reducing friction and wear.

With a maximum speed of 4,630 rpm, it balances precision and durability.

Application

Industrial Uses of 1010 Bearing
1010 Bearing is commonly used in machine tools, where its ability to handle axial loads makes it suitable for spindle assemblies. The open design simplifies lubrication, ensuring smooth operation in demanding conditions.

What Makes 1010 Bearing a Preferred Choice?
In automotive applications, 1010 Bearing works well in gearboxes and clutch mechanisms, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 1010 Bearing
For conveyor systems, 1010 Bearing provides reliable performance under constant thrust loads. The chrome steel cage enhances longevity, even in high-use industrial settings.

Medical vs Industrial: Where 1010 Bearing Excels
In medical devices like imaging equipment, 1010 Bearing offers precision and stability. Its temperature tolerance makes it versatile for both clinical and industrial environments.

Perfect Fit for Automation: 1010 Bearing
1010 Bearing is ideal for robotic arms and automated machinery, where consistent thrust load handling is essential. The open seal design allows for easy maintenance in these applications.
