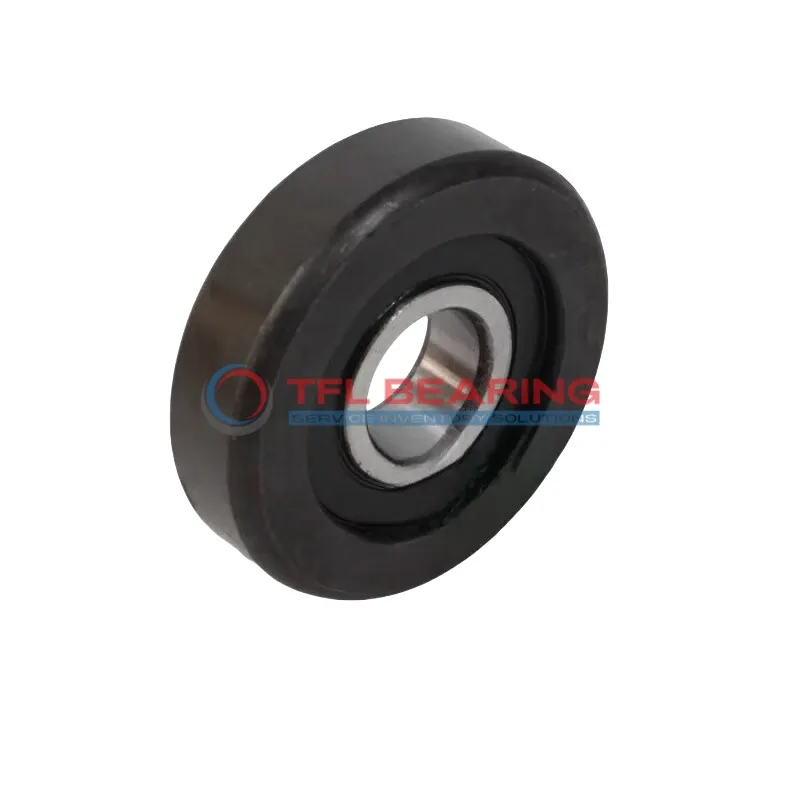

Mast Guide Bearings MG 5208 VFFQE

Mast Guide Bearings MG 5208 VFFQE

The MG 5208 VFFQE mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 103.5mm in outer diameter, with a width of 40.8mm. Made for heavy-duty use, it supports dynamic loads up to 62,120 N and static loads up to 55,530 N.

Its robust design includes a 10.5mm radius, ensuring smooth operation under stress. The bearing weighs 1.72kg, offering a good balance between strength and manageable size.

This model is ideal for applications like construction equipment or industrial machinery where reliable guidance and load support are essential. Its durable construction ensures long service life even in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 5208 VFFQE
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 103.50 mm
  • Inner Ring Width (b) 30.16 mm
  • Outer Ring Width (B) 40.800 mm
  • Radius (R) 10.5 mm
  • Dynamic Capacity (Cr.) 62,120 N
  • Static Capacity (Cor.) 55,530 N
  • Weight 1.7237 Kg
Mast Guide Bearings MG 5208 VFFQE dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 5208 VFFQE Bearing

MG 5208 VFFQE Bearing is built with precise dimensions of 40.000 mm x 103.50 mm x 40.800 mm, ensuring a perfect fit for specific applications.
Its dynamic capacity of 62,120 N allows it to handle significant loads with ease.

The bearing’s static capacity of 55,530 N ensures stability even under heavy pressure.
With a weight of 1.7237 Kg, it balances durability and portability.

The 10.5 mm radius design enhances load distribution, reducing stress on the bearing.
This makes MG 5208 VFFQE Bearing a reliable choice for demanding industrial uses.

Application

Industrial Uses of MG 5208 VFFQE Bearing
MG 5208 VFFQE Bearing is commonly used in heavy machinery, such as cranes and lifting equipment, where its high dynamic capacity ensures reliable performance under load. The robust design makes it suitable for demanding environments.

In automotive applications, MG 5208 VFFQE Bearing supports components like steering systems and suspension, offering stability and durability. Its precise dimensions ensure a perfect fit for various vehicle models.

For automation systems, MG 5208 VFFQE Bearing is ideal for robotic arms and conveyor belts, thanks to its smooth operation and resistance to wear. The stainless steel construction adds to its longevity in high-use scenarios.

What Makes MG 5208 VFFQE Bearing a Preferred Choice?
MG 5208 VFFQE Bearing stands out in construction equipment, where its static capacity handles heavy loads effortlessly. The design also allows for easy maintenance, reducing downtime.

In agricultural machinery, MG 5208 VFFQE Bearing ensures smooth operation in tractors and harvesters, even in harsh conditions. Its weight distribution helps balance the equipment for better performance.
