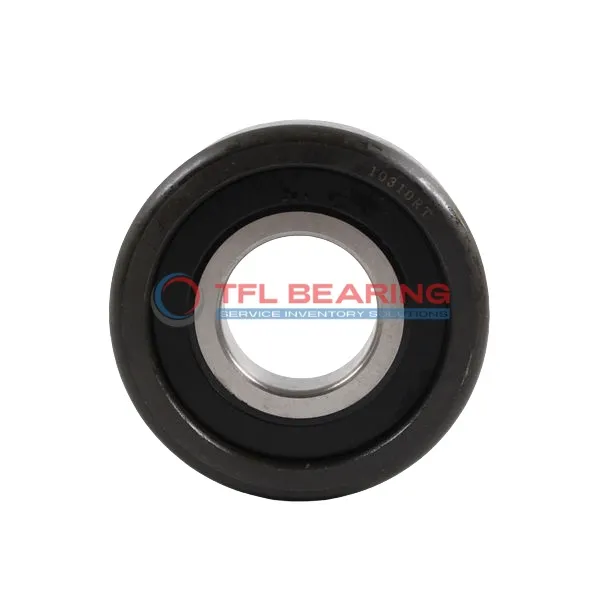

Mast Guide Bearings MG 5208 VFFQ

Mast Guide Bearings MG 5208 VFFQ

The MG 5208 VFFQ is a mast guide bearing with a 40mm inner diameter and 103.6mm outer diameter, crafted for sturdy performance. It handles dynamic loads up to 62,120 N and static loads up to 55,530 N, making it reliable for heavy-duty use.

Its compact design, with a width of 42.9mm and rounded edges (8mm radius), ensures easy installation and smooth operation. The bearing weighs 1.86kg, offering a good balance between strength and portability.

This model is ideal for mast guidance systems or other applications where stability and load capacity are key. Its robust construction makes it a dependable choice for industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 5208 VFFQ
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 103.60 mm
  • Inner Ring Width (b) 30.16 mm
  • Outer Ring Width (B) 42.900 mm
  • Radius (R) 8 mm
  • Dynamic Capacity (Cr.) 62,120 N
  • Static Capacity (Cor.) 55,530 N
  • Weight 1.8597 Kg
Mast Guide Bearings MG 5208 VFFQ dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 5208 VFFQ Bearing

MG 5208 VFFQ Bearing is built with precise dimensions of 40.000 mm x 103.60 mm x 42.900 mm, ensuring a perfect fit for your machinery.
Its dynamic capacity of 62,120 N allows it to handle demanding loads with ease.
The bearing’s static capacity of 55,530 N ensures reliability even in stationary applications.
With a weight of 1.8597 Kg, it offers a balance of strength and manageability.

Application

Industrial Uses of MG 5208 VFFQ Bearing
MG 5208 VFFQ Bearing is commonly used in heavy machinery, such as cranes and lifts, where its robust design handles significant radial loads. The 40mm bore size makes it suitable for various industrial shafts.

Where Is MG 5208 VFFQ Bearing Used?
You’ll often find MG 5208 VFFQ Bearing in construction equipment, like mast guides, due to its high dynamic capacity of 62,120 N. Its durable construction ensures reliable performance in demanding environments.

Built for Heavy-Duty Use: MG 5208 VFFQ Bearing
MG 5208 VFFQ Bearing excels in applications like mining equipment, where its static capacity of 55,530 N provides stability. The 103.60mm outer diameter offers a solid fit for larger assemblies.

Automotive vs Aerospace: Applications of MG 5208 VFFQ Bearing
In automotive systems, MG 5208 VFFQ Bearing supports components like steering columns, while in aerospace, it’s used in landing gear mechanisms. Its 42.9mm width ensures a secure fit in both fields.

Perfect Fit for Automation: MG 5208 VFFQ Bearing
MG 5208 VFFQ Bearing is ideal for automated production lines, where its precision and 1.8597 kg weight balance performance and ease of installation. The 8mm radius reduces stress concentrations.
