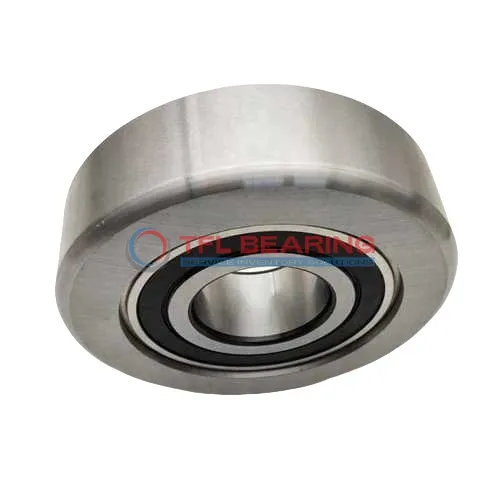

Mast Guide Bearings MG 308 FFH

Mast Guide Bearings MG 308 FFH

The MG 308 FFH mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 101.6mm in outer diameter, with a width of 28.5mm. Built for heavy-duty use, it supports dynamic loads up to 40,760 N and static loads of 24,020 N.

Its robust design includes an 8mm radius for smooth operation, while the chrome steel construction ensures durability. The bearing weighs just over 1kg, making it easy to handle during installation.

This model is ideal for industrial applications like construction equipment or agricultural machinery, where reliable guidance is essential. Its interchangeable design makes it a practical choice for replacements or upgrades.

With its balanced weight and strong load capacity, the MG 308 FFH offers dependable performance in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFH
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 101.60 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 28.500 mm
  • Radius (R) 8 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.0433 Kg
Mast Guide Bearings MG 308 FFH dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 FFH Bearing

MG 308 FFH Bearing is built with precise dimensions of 40.000 mm x 101.60 mm x 28.500 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 40,760 N allows it to handle significant loads while maintaining smooth operation.

The robust design includes an 8 mm radius, providing durability and reducing stress concentrations.
With a static capacity of 24,020 N, MG 308 FFH Bearing offers reliable performance in stationary applications.

Weighing just 1.0433 Kg, it balances strength and lightweight construction for easy handling.
The chrome steel material ensures long-lasting performance even in demanding conditions.

Application

Industrial Uses of MG 308 FFH Bearing
MG 308 FFH Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high dynamic capacity handles significant radial loads. The robust design ensures longevity even in demanding environments.

Where Is MG 308 FFH Bearing Used?
You’ll often find MG 308 FFH Bearing in conveyor systems and material handling equipment, thanks to its reliable performance under continuous operation. Its precise dimensions make it a good fit for systems requiring accurate alignment.

Built for Heavy-Duty Use: MG 308 FFH Bearing
MG 308 FFH Bearing excels in applications like crane mechanisms and lifting devices, where its static capacity provides stability under heavy loads. The durable construction minimises wear over time.

Automotive vs Aerospace: Applications of MG 308 FFH Bearing
In automotive settings, MG 308 FFH Bearing supports components like gearboxes and drivetrains, while in aerospace, it’s used in landing gear systems. Its versatility makes it suitable for both high and low-speed operations.

Perfect Fit for Automation: MG 308 FFH Bearing
MG 308 FFH Bearing is ideal for robotic arms and automated assembly lines, where its smooth operation enhances precision. The lightweight design also reduces energy consumption in high-cycle applications.
