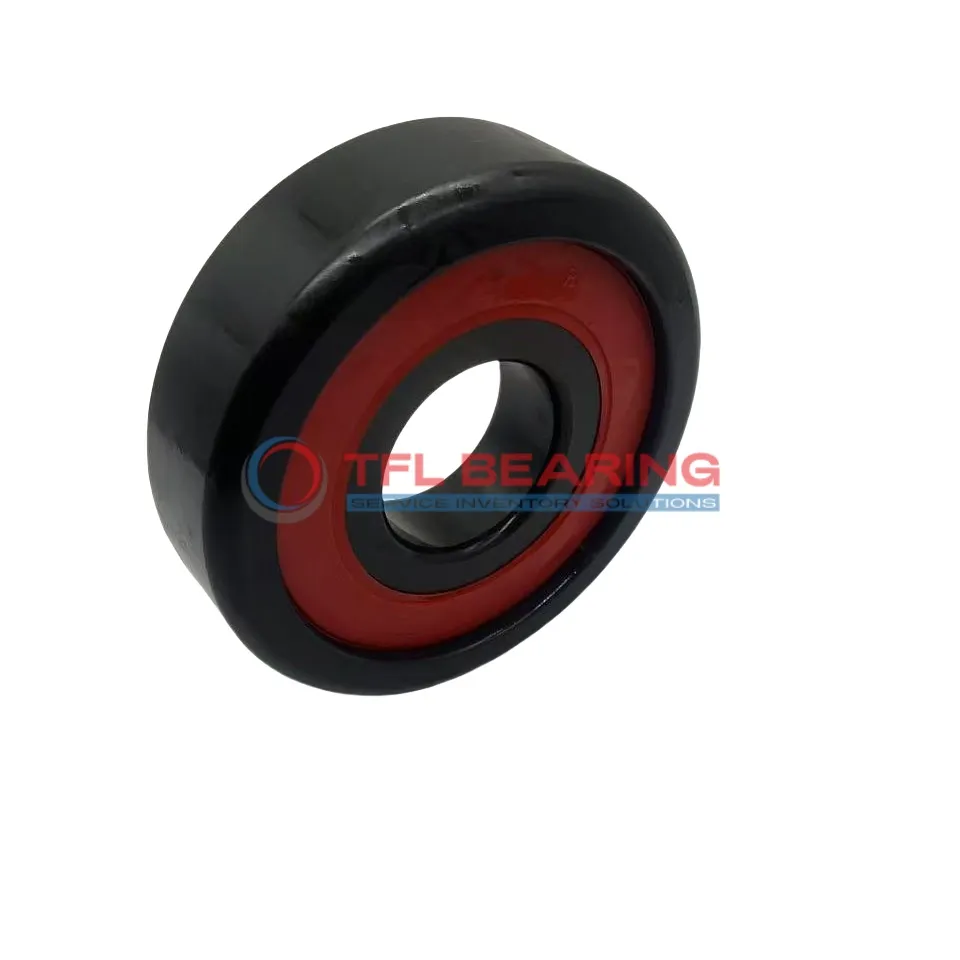

Mast Guide Bearings MG 309 TC‑5

Mast Guide Bearings MG 309 TC‑5

The MG 309 TC‑5 is a mast guide bearing with a 45mm inner diameter and 120mm outer diameter, crafted for sturdy performance. Its compact design measures 29mm in width, making it easy to fit into tight spaces.

With a dynamic load capacity of 52,990 N, it handles heavy loads smoothly, while the static capacity of 32,050 N ensures reliability under pressure. The bearing’s 3mm radius edge helps reduce stress during operation.

Weighing 1.701kg, it’s robust yet manageable for installation. Ideal for mast guidance systems or industrial equipment where precision and durability are key. Its simple design suits both maintenance and new setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 309 TC‑5
  • Brand TFL & OEM
  • Inner Diameter (d) 45.000 mm
  • Outer Diameter (D) 120.00 mm
  • Inner Ring Width (b) 25 mm
  • Outer Ring Width (B) 29.000 mm
  • Radius (R) 3 mm
  • Dynamic Capacity (Cr.) 52,990 N
  • Static Capacity (Cor.) 32,050 N
  • Weight 1.701 Kg

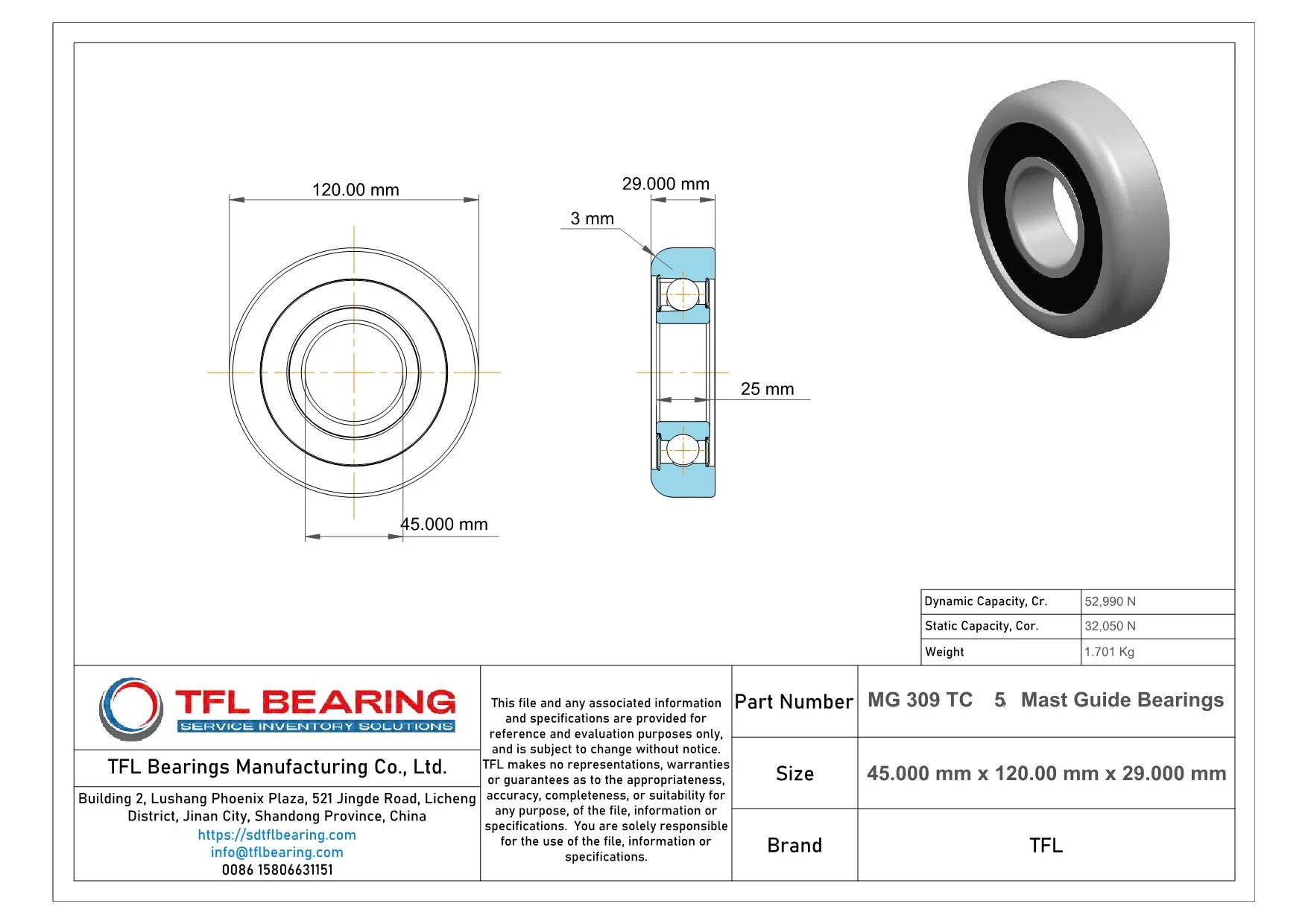

Mast Guide Bearings MG 309 TC‑5 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 309 TC‑5 Bearing

MG 309 TC‑5 Bearing is built with a robust design, featuring an inner diameter of 45.000 mm and an outer diameter of 120.00 mm.
Its dynamic capacity of 52,990 N ensures reliable performance under heavy loads.
The bearing’s compact width of 29.000 mm makes it suitable for space-constrained applications.
With a static capacity of 32,050 N, it offers stability and durability in various conditions.

How Does MG 309 TC‑5 Bearing Resist Wear?

MG 309 TC‑5 Bearing’s sturdy construction and precise dimensions help minimise wear during operation.
The bearing’s dynamic capacity of 52,990 N ensures it can handle repetitive stress without significant degradation.
Its 3 mm radius design reduces stress concentration, further enhancing its longevity.
Weighing 1.701 Kg, it balances strength and practicality for industrial use.

Engineered for Precision: MG 309 TC‑5 Bearing

MG 309 TC‑5 Bearing’s exact dimensions, including a 25 mm inner ring width, ensure precise alignment in machinery.
The bearing’s high dynamic and static capacities make it ideal for demanding applications.
Its 3 mm radius design contributes to smoother operation and reduced friction.
The outer ring width of 29.000 mm provides stability, even under heavy loads.

Application

Industrial Uses of MG 309 TC‑5 Bearing
MG 309 TC‑5 Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement, essential for safety and efficiency.

In automation systems, MG 309 TC‑5 Bearing ensures precise alignment in robotic arms and conveyor belts. The high dynamic capacity makes it suitable for repetitive motions without compromising performance.

For agricultural machinery, MG 309 TC‑5 Bearing provides reliable support in tractors and harvesters. Its durable construction withstands harsh conditions, reducing downtime and maintenance needs.

Where Is MG 309 TC‑5 Bearing Used?
MG 309 TC‑5 Bearing finds its place in material handling equipment, such as forklifts and pallet jacks. The static capacity ensures stability even under uneven loads.

In industrial fans, MG 309 TC‑5 Bearing helps maintain balance and reduce vibration. The precise dimensions contribute to quieter operation and longer service life.

Built for Heavy-Duty Use: MG 309 TC‑5 Bearing
MG 309 TC‑5 Bearing excels in mining equipment, where its strength and durability are put to the test. The high load capacity makes it ideal for demanding environments.

For packaging machines, MG 309 TC‑5 Bearing ensures smooth operation at high speeds. The consistent performance helps maintain productivity in fast-paced settings.
