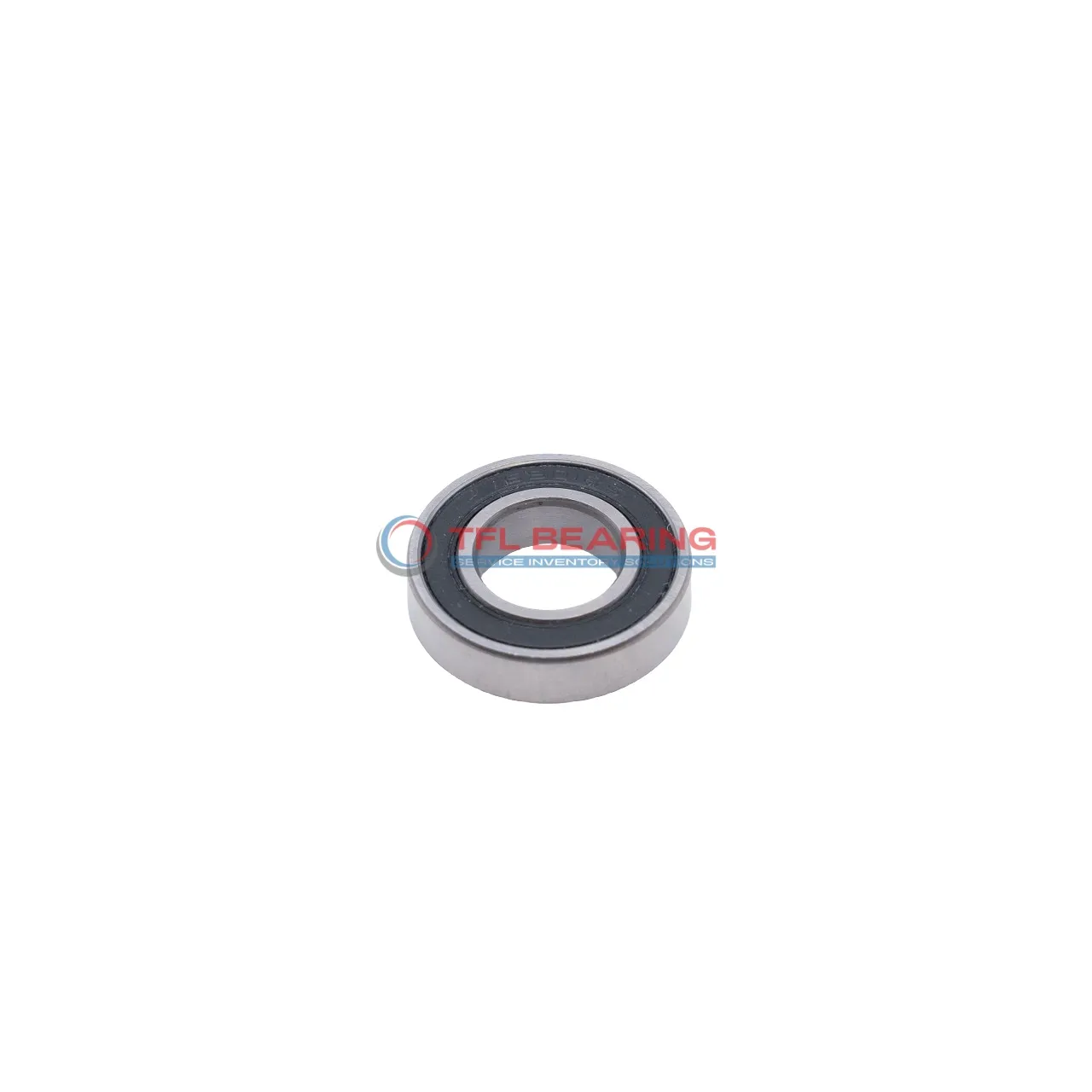

Single Row Deep Groove Ball Bearings 6201-2RSH/VA947

Single Row Deep Groove Ball Bearings 6201-2RSH/VA947

The 6201-2RSH/VA947 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from chrome steel with a stainless steel cage, it’s built to handle radial loads up to 1637 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing spins smoothly at speeds up to 15,000 RPM, even in temperatures from -30°C to 120°C.

The P6 tolerance ensures precise operation, while the CN radial clearance offers reliable performance. It’s interchangeable with SKF bearings for easy replacement.

Ideal for small motors, pumps, or appliances where space is tight but durability matters. Weighing just 38 grams, it’s lightweight yet robust. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2RSH/VA947
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1637 lbf
  • Static Radial Load 697 lbf
  • Max Speed 15000 rpm
  • Weight 0.038 kg
Single Row Deep Groove Ball Bearings 6201-2RSH/VA947 dimension drawing
Download DWG Download PDF

Features

Why Choose 6201-2RSH/VA947 Bearing for Precision Tasks?

6201-2RSH/VA947 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and smooth operation under radial loads up to 1637 lbf.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 15,000 rpm, it delivers reliable performance in high-speed applications.

Engineered for precision, 6201-2RSH/VA947 Bearing operates efficiently in temperatures from -30° to 120°C.
Its P6 tolerance class guarantees high accuracy, making it suitable for demanding tasks.

Application

Common Applications of 6201-2RSH/VA947 Bearing
In industrial settings, 6201-2RSH/VA947 Bearing is a go-to for electric motors and pumps, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures it handles radial loads with ease.

For automotive uses, 6201-2RSH/VA947 Bearing fits well in alternators and small gearboxes, where its grease lubrication reduces maintenance needs. Its P6 tolerance class means it delivers consistent performance even under stress.

In home appliances like washing machines, 6201-2RSH/VA947 Bearing’s quiet operation and durability make it a reliable choice. The stainless steel cage adds extra protection against wear over time.

Automation systems benefit from 6201-2RSH/VA947 Bearing’s high-speed capability, ideal for robotic arms and conveyor belts. Its metric sizing ensures compatibility with a wide range of machinery.
