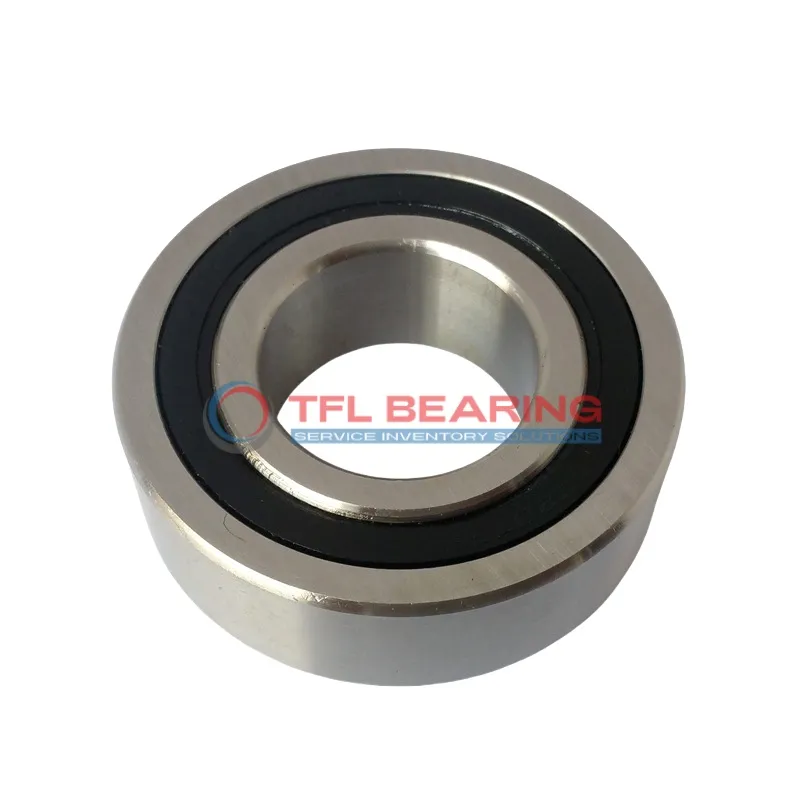

Self Aligning Ball Bearings 2302 E-2RS1TN9/C3

Self Aligning Ball Bearings 2302 E-2RS1TN9/C3

The 2302 E-2RS1TN9/C3 is a self-aligning ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2430 lbf and spins smoothly at speeds up to 12,000 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, while the nylon cage reduces noise and friction. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or conveyor systems where misalignment might occur.

Weighing just 0.11kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe and efficient option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2302 E-2RS1TN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 20.3 mm
  • Internal Diameter On Outer Ring 36.23 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2430 lbf
  • Static Radial Load 585 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.11 kg
Self Aligning Ball Bearings 2302 E-2RS1TN9/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2302 E-2RS1TN9/C3 Bearing for Precision Tasks?

2302 E-2RS1TN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 2430 lbf makes it suitable for high-performance applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 12,000 rpm, it delivers smooth and efficient operation.

2302 E-2RS1TN9/C3 Bearing operates in temperatures from -30° to 110°C, offering reliable performance in varied conditions.
Its C3 radial clearance ensures optimal fit and function in demanding setups.

Application

Industrial Uses of 2302 E-2RS1TN9/C3 Bearing
2302 E-2RS1TN9/C3 Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The sealed design keeps contaminants out, ensuring long-lasting performance in dusty environments.

In automotive applications, 2302 E-2RS1TN9/C3 Bearing is found in electric motors and gearboxes, providing smooth radial load support. Its nylon cage reduces noise, making it ideal for quieter vehicle operation.

For household appliances like washing machines, 2302 E-2RS1TN9/C3 Bearing offers reliable performance with minimal maintenance. The lubricated design ensures smooth rotation even under constant use.

In automation equipment, 2302 E-2RS1TN9/C3 Bearing supports robotic arms, where precision and durability are key. The C3 clearance allows for thermal expansion in high-speed operations.
