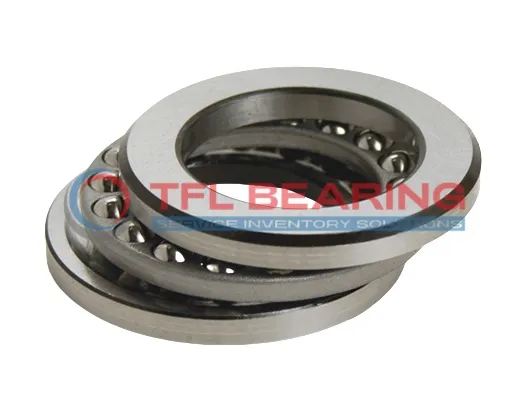

Thrust Ball Bearing With Outside Band D15

Thrust Ball Bearing With Outside Band D15

The D15 is a thrust ball bearing with a 1.375-inch bore and 2.469-inch outer diameter, crafted from sturdy 52100 chrome steel. It handles thrust loads up to 7300 lbf and operates smoothly at speeds up to 3000 RPM.

Its compact width of 0.625 inches makes it a space-saving choice, while the chrome steel construction ensures durability. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

This model is ideal for applications needing reliable thrust load support, such as automotive components or industrial machinery. Its robust design and compliance with RoHS and REACH standards make it a safe and dependable option.

Weighing just 0.43 lbs, it’s lightweight yet strong, perfect for installations where space and weight are considerations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D15
  • Brand TFL
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.406"
  • Outer Dia 2.469"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.625"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 7300 lbf
  • Static Thrust Load 16600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 0.43 lbs
Thrust Ball Bearing With Outside Band D15 dimension drawing
Download DWG Download PDF

Features

How Does D15 Bearing Handle Heavy Loads?

D15 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 7300 lbf, making it suitable for demanding applications.
The precise tolerances ensure smooth operation, even under heavy stress.
With a maximum speed of 3,000 rpm, it balances performance and durability.

Application

Industrial Uses of D15 Bearing
D15 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its inch sizing fits standard North American equipment. The chrome steel construction ensures it handles high thrust loads reliably.

Where Is D15 Bearing Used?
You’ll often spot D15 Bearing in automotive applications like steering systems, where its precise tolerances maintain smooth operation. Its durability makes it a go-to for components facing constant axial forces.

Built for Heavy-Duty Use: D15 Bearing
D15 Bearing excels in industrial fans and compressors, thanks to its robust design and ability to withstand dynamic loads up to 7300 lbf. The wide temperature range also suits varied working environments.

Automotive vs Aerospace: Applications of D15 Bearing
In automotive settings, D15 Bearing supports transmissions, while in aerospace, it’s trusted for auxiliary equipment due to its consistent performance. The inch measurements ensure easy integration in both fields.

Practical Applications of D15 Bearing
D15 Bearing fits well in agricultural machinery, like tractors, where its static load capacity of 16600 lbf handles rough conditions. The open design simplifies lubrication for long-term use.
