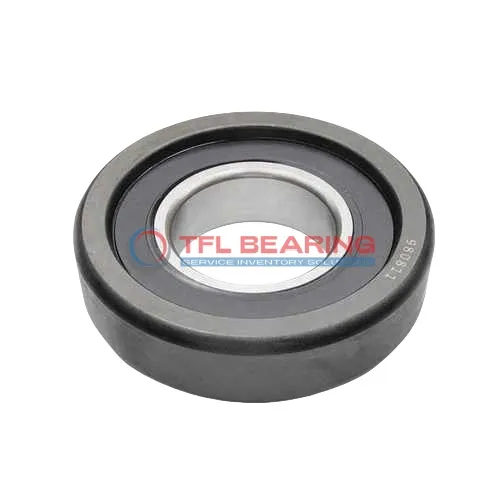

Mast Guide Bearings MG 308 FFQA

Mast Guide Bearings MG 308 FFQA

The MG 308 FFQA is a mast guide bearing with a 40mm inner diameter and 108.38mm outer diameter, designed for sturdy performance. Its compact width of 32mm makes it suitable for tight spaces, while the 7.5mm radius ensures smooth operation.

With a dynamic load capacity of 40,760 N and static load capacity of 24,020 N, it handles heavy loads with ease. The bearing’s robust construction ensures reliability in demanding conditions.

Weighing 1.4742 kg, it’s a durable yet manageable option for industrial use. Ideal for applications like cranes or lifting equipment where precise guidance is essential.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFQA
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 108.38 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 32.000 mm
  • Radius (R) 7.5 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.4742 Kg
Mast Guide Bearings MG 308 FFQA dimension drawing
Download DWG Download PDF

Features

How Is MG 308 FFQA Bearing Engineered for Reliability?

MG 308 FFQA Bearing features a robust design with an inner diameter of 40.000 mm and an outer diameter of 108.38 mm, ensuring stability under heavy loads.
Its dynamic capacity of 40,760 N and static capacity of 24,020 N make it suitable for demanding applications.
The bearing’s inner ring width of 23 mm and outer ring width of 32.000 mm provide balanced support.
With a radius of 7.5 mm, it offers smooth operation and reduced stress concentrations.

Application

Industrial Uses of MG 308 FFQA Bearing
MG 308 FFQA Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its robust design handles significant radial loads. The 40mm bore size makes it suitable for various shaft configurations.

In automation systems, MG 308 FFQA Bearing ensures smooth movement in robotic arms and conveyor belts. Its 108.38mm outer diameter provides stability, while the 32mm width offers ample support for continuous operation.

For wind turbines, MG 308 FFQA Bearing’s dynamic capacity of 40,760 N makes it reliable for high-stress environments. The 1.4742 kg weight balances durability without adding excessive bulk to the system.
