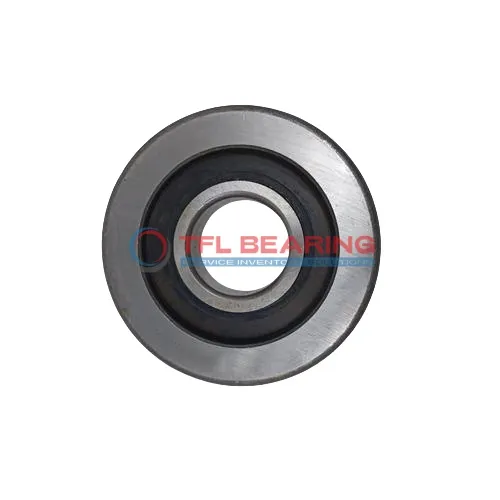

Mast Guide Bearings MG 308 FFC‑20

Mast Guide Bearings MG 308 FFC‑20

The MG 308 FFC-20 is a mast guide bearing with a 40mm inner diameter and 102.3mm outer diameter, crafted for sturdy performance. Its compact design, at just 28.4mm wide, fits neatly into tight spaces while handling loads up to 40,760 N.

Made for smooth operation, this bearing supports both dynamic and static loads, with a static capacity of 24,020 N. The 8mm radius ensures easy installation and reduces stress on surrounding components.

Weighing 1.0659kg, it’s lightweight yet durable for industrial use. Ideal for mast guidance systems or heavy machinery where reliable load support is essential. Its interchangeable design makes it a practical choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFC‑20
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 102.30 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 28.400 mm
  • Radius (R) 8 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.0659 Kg
Mast Guide Bearings MG 308 FFC‑20 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 FFC-20 Bearing

MG 308 FFC-20 Bearing is built with a robust design, featuring an inner diameter of 40.000 mm and an outer diameter of 102.30 mm.

Its dynamic capacity of 40,760 N ensures reliable performance under heavy loads, while the static capacity of 24,020 N provides stability.

The bearing’s inner ring width of 23 mm and outer ring width of 28.400 mm contribute to its durability and ease of installation.

With a weight of 1.0659 kg, MG 308 FFC-20 Bearing offers a balance between strength and manageability.

Application

Industrial Uses of MG 308 FFC‑20 Bearing
MG 308 FFC‑20 Bearing is commonly used in heavy machinery, such as cranes and lifts, where its robust design handles significant radial loads. The high dynamic capacity ensures reliable performance in demanding industrial environments.

Where Is MG 308 FFC‑20 Bearing Used?
You’ll often find MG 308 FFC‑20 Bearing in construction equipment, like mast guides, where precision and durability are key. Its dimensions and load capacity make it a solid choice for applications requiring stability under stress.

Built for Heavy-Duty Use: MG 308 FFC‑20 Bearing
MG 308 FFC‑20 Bearing excels in applications like material handling systems, thanks to its sturdy construction and high static capacity. The weight and size balance make it easy to integrate into various setups.

Automotive vs Aerospace: Applications of MG 308 FFC‑20 Bearing
In automotive systems, MG 308 FFC‑20 Bearing supports components like steering columns, offering smooth operation. For aerospace, its reliability in high-stress conditions makes it suitable for landing gear mechanisms.

Practical Applications of MG 308 FFC‑20 Bearing
MG 308 FFC‑20 Bearing is ideal for conveyor systems, where its radial load capacity ensures consistent performance. The stainless steel components add longevity, even in harsh working conditions.
