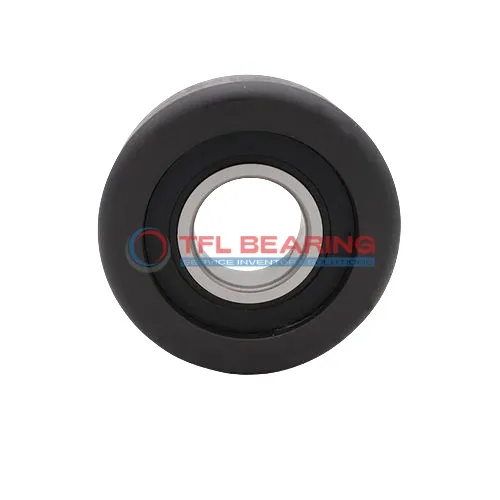

Mast Guide Bearings MG 308 FFAB

Mast Guide Bearings MG 308 FFAB

The MG 308 FFAB mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 108.5mm in outer diameter, with a width of 31mm. Made for heavy-duty use, it supports dynamic loads up to 40,760 N and static loads up to 24,020 N.

Its robust design includes a 6mm radius, ensuring smooth operation under stress. The chrome steel construction offers excellent durability for demanding environments.

Weighing 1.47kg, it’s a solid choice for industrial applications like cranes or construction equipment. Its dimensions and load capacity make it reliable for guiding and supporting heavy loads.

Compatible with OEM standards, this bearing is easy to integrate into existing systems. Ideal for machinery requiring precise alignment and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 FFAB
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 108.50 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 31.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.4742 Kg
Mast Guide Bearings MG 308 FFAB dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 FFAB Bearing

MG 308 FFAB Bearing is built with a robust design, featuring an inner diameter of 40.000 mm and an outer diameter of 108.50 mm.
Its dynamic capacity of 40,760 N ensures reliable performance under heavy loads.
The bearing’s inner ring width of 23 mm and outer ring width of 31.000 mm provide stability in various applications.
With a weight of 1.4742 Kg, it offers a balance between strength and ease of handling.

Application

Industrial Uses of MG 308 FFAB Bearing
MG 308 FFAB Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads effortlessly. The 40mm bore size makes it suitable for various shaft configurations.

In automation systems, MG 308 FFAB Bearing ensures smooth movement in robotic arms and conveyor belts, thanks to its precise dimensions and durability. Its 108.5mm outer diameter provides stability in high-speed applications.

For industrial fans and blowers, MG 308 FFAB Bearing’s dynamic capacity of 40,760 N ensures reliable performance even under continuous operation. The stainless steel construction adds to its longevity in demanding environments.
