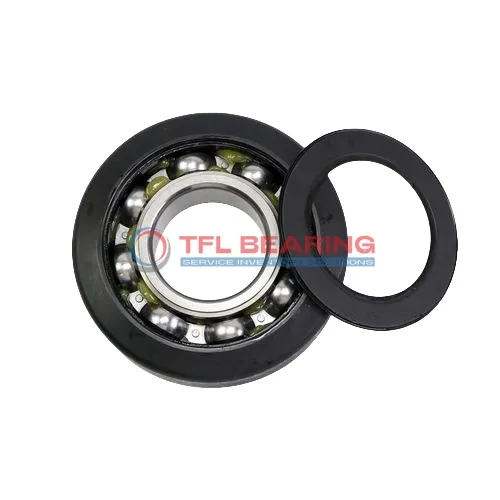

Mast Guide Bearings MG 307 FFTC

Mast Guide Bearings MG 307 FFTC

The MG 307 FFTC is a mast guide bearing with a 35mm inner diameter and 103mm outer diameter, crafted for sturdy performance. Its compact design measures 25mm in width, making it suitable for tight spaces.

With a dynamic capacity of 33,540 N and static capacity of 19,230 N, it handles moderate loads with ease. The bearing’s 4mm radius ensures smooth operation and reduces stress on surrounding components.

Weighing 1.1567 kg, it’s lightweight yet durable for industrial use. Ideal for mast guidance systems or machinery requiring reliable rotational support.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFTC
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 103.00 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 25.000 mm
  • Radius (R) 4 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 1.1567 Kg
Mast Guide Bearings MG 307 FFTC dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 FFTC Bearing

MG 307 FFTC Bearing is built with a robust design, featuring an inner diameter of 35.000 mm and an outer diameter of 103.00 mm.
Its dynamic capacity of 33,540 N ensures reliable performance under heavy loads.
The bearing’s inner ring width of 21 mm and outer ring width of 25.000 mm provide stability in various applications.
With a weight of 1.1567 kg, it offers a balance between strength and portability.

Application

Industrial Uses of MG 307 FFTC Bearing
MG 307 FFTC Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads. The 35mm bore size makes it suitable for various shaft configurations.

In automation systems, MG 307 FFTC Bearing ensures smooth movement in robotic arms and conveyor belts. Its 103mm outer diameter provides stability, while the 25mm width fits compact spaces without sacrificing performance.

For wind turbines, MG 307 FFTC Bearing’s dynamic capacity of 33,540 N supports consistent operation under varying wind loads. The 1.1567 kg weight balances durability and ease of installation in elevated setups.

Where Is MG 307 FFTC Bearing Used?
MG 307 FFTC Bearing finds its place in industrial fans, where its 19,230 N static capacity ensures reliability during continuous operation. The 4mm radius edge reduces stress concentrations, prolonging service life.

In material handling systems, MG 307 FFTC Bearing’s 21mm inner ring width accommodates high-speed rotations. Its chrome steel construction resists wear, making it a dependable choice for logistics equipment.

Built for Heavy-Duty Use: MG 307 FFTC Bearing
MG 307 FFTC Bearing excels in mining machinery, where its 103mm outer diameter withstands harsh environments. The 25mm outer ring width offers added support for axial and radial loads.

For printing presses, MG 307 FFTC Bearing’s precision ensures consistent paper feed and alignment. The 35mm inner diameter fits standard press shafts, simplifying maintenance and replacements.
