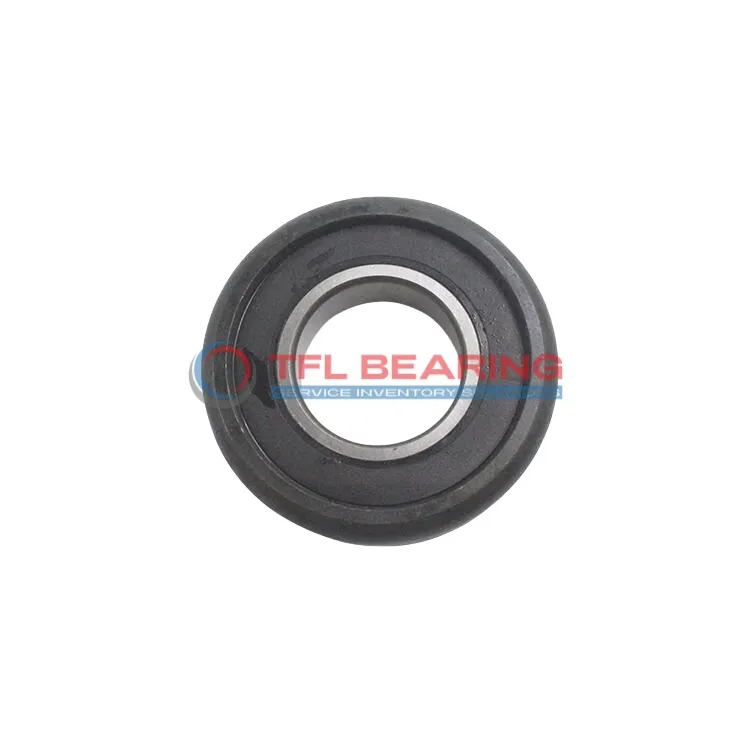

Mast Guide Bearings MG 307 T‑7

Mast Guide Bearings MG 307 T‑7

The MG 307 T‑7 is a mast guide bearing with a 35mm inner diameter and 107.8mm outer diameter, designed for sturdy performance. Its compact width of 25mm makes it suitable for tight spaces, while the 5mm radius ensures smooth operation.

With a dynamic load capacity of 33,540 N and static load capacity of 19,230 N, it handles heavy loads with ease. The bearing’s robust construction ensures reliability in demanding conditions.

Weighing 1.27kg, it’s lightweight yet durable for its size. Ideal for use in mast guide systems or other applications requiring precise movement under load. Its dimensions and strength make it a practical choice for industrial machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 T‑7
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 107.80 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 25.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 1.2701 Kg
Mast Guide Bearings MG 307 T‑7 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 T‑7 Bearing

MG 307 T‑7 Bearing is built with a robust design, featuring an inner diameter of 35.000 mm and an outer diameter of 107.80 mm.
Its dynamic capacity of 33,540 N ensures reliable performance under heavy loads.

The inner ring width of 21 mm and outer ring width of 25.000 mm provide stability in various applications.
With a static capacity of 19,230 N, MG 307 T‑7 Bearing offers durability and long service life.

The 5 mm radius design enhances load distribution, reducing stress on the bearing components.
Weighing 1.2701 kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of MG 307 T‑7 Bearing
MG 307 T‑7 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads effortlessly. The 35mm bore size makes it suitable for various shaft configurations.

In automotive applications, MG 307 T‑7 Bearing fits well in steering systems and wheel hubs, providing reliable performance under constant stress. Its 107.80mm outer diameter ensures stability in compact spaces.

For automation systems, MG 307 T‑7 Bearing supports robotic arms and conveyor belts, thanks to its precise dimensions and smooth operation. The 25mm width balances space efficiency with load capacity.

Where Is MG 307 T‑7 Bearing Used?
You’ll often spot MG 307 T‑7 Bearing in wind turbines, where its dynamic capacity of 33,540 N handles variable wind forces. The stainless steel construction resists corrosion in outdoor conditions.

In printing machinery, MG 307 T‑7 Bearing ensures consistent paper feed and alignment. The 21mm inner ring width allows for easy integration into existing setups.

Built for Heavy-Duty Use: MG 307 T‑7 Bearing
MG 307 T‑7 Bearing excels in mining equipment, enduring harsh environments with its high static load capacity of 19,230 N. The 5mm radius edge reduces stress concentrations.

For packaging lines, MG 307 T‑7 Bearing keeps operations smooth with minimal maintenance. Its 1.2701 kg weight strikes a balance between durability and ease of handling.
