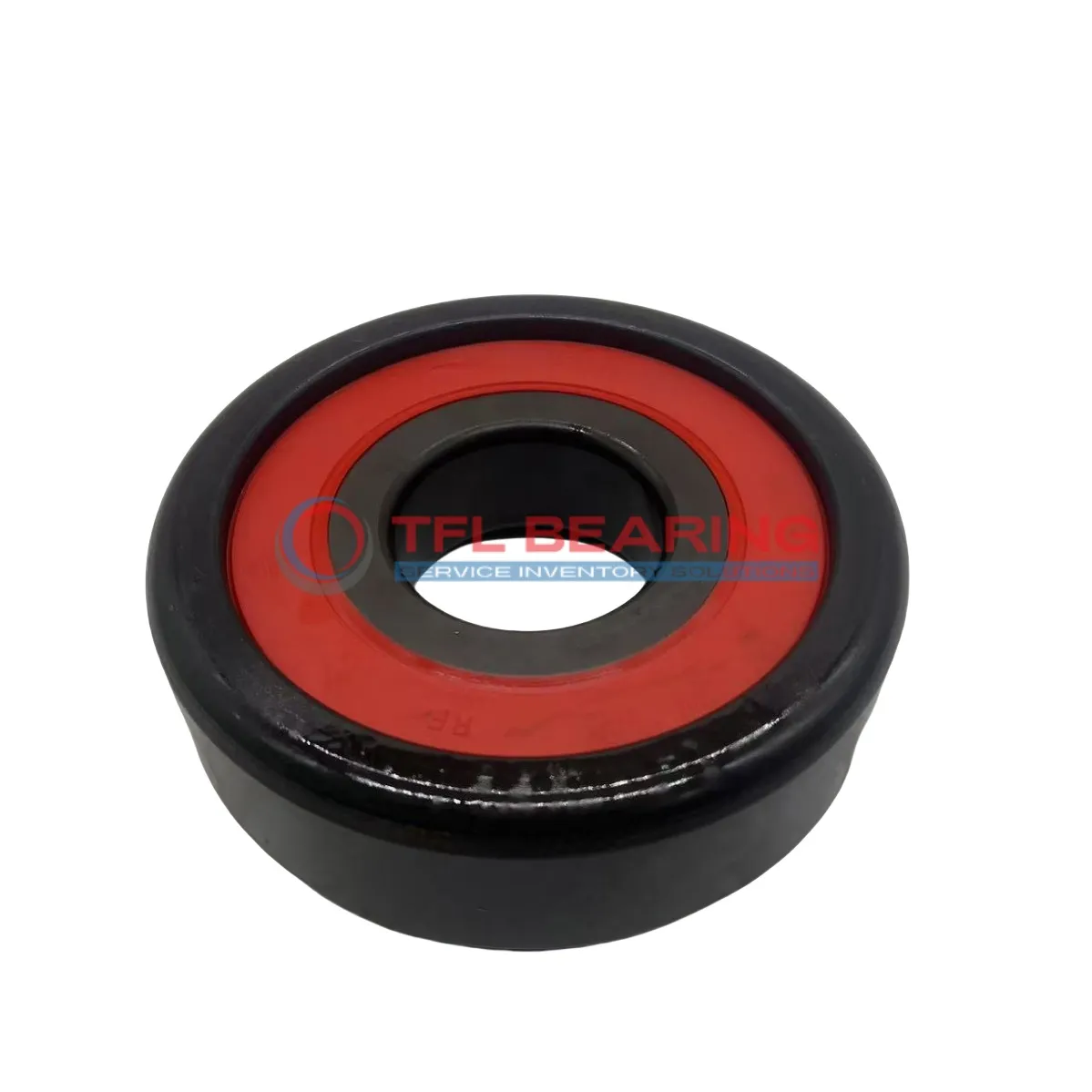

Mast Guide Bearings MG 306 DDL‑3

Mast Guide Bearings MG 306 DDL‑3

The MG 306 DDL‑3 is a mast guide bearing with a 30mm inner diameter and 75.9mm outer diameter, designed for stability in demanding applications. Its compact width of 24mm makes it suitable for tight spaces, while the 6mm radius ensures smooth operation.

With a dynamic load capacity of 57,100N and static load capacity of 67,100N, it handles heavy loads with ease. The bearing’s robust construction ensures reliable performance in high-stress environments.

Weighing just 0.5897kg, it’s lightweight yet durable. Ideal for use in construction equipment or industrial machinery where precision and strength are key. Its design allows for easy integration into existing systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 306 DDL‑3
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 75.90 mm
  • Inner Ring Width (b) 16 mm
  • Outer Ring Width (B) 24.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 57,100 N
  • Static Capacity (Cor.) 67,100 N
  • Weight 0.5897 Kg
Mast Guide Bearings MG 306 DDL‑3 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 306 DDL‑3 Bearing

MG 306 DDL‑3 Bearing is built with precise dimensions of 30.000 mm x 75.90 mm x 24.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 57,100 N and static capacity of 67,100 N make it suitable for heavy-duty operations.
The bearing’s 6 mm radius design enhances load distribution, reducing stress on components.
Weighing just 0.5897 Kg, it offers a balance of strength and lightweight efficiency.

Application

Industrial Uses of MG 306 DDL‑3 Bearing
MG 306 DDL‑3 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic systems, where its high dynamic capacity handles substantial loads. The robust design ensures longevity even in demanding conditions.

Where Is MG 306 DDL‑3 Bearing Used?
You’ll often spot MG 306 DDL‑3 Bearing in agricultural machinery, like tractors and harvesters, thanks to its ability to withstand rough terrain and variable loads. Its precise dimensions make it a reliable fit for various applications.

Built for Heavy-Duty Use: MG 306 DDL‑3 Bearing
MG 306 DDL‑3 Bearing excels in industrial fans and pumps, where its static capacity provides stability under constant pressure. The stainless steel construction adds resistance to corrosion in humid environments.

Automotive vs Aerospace: Applications of MG 306 DDL‑3 Bearing
In automotive systems, MG 306 DDL‑3 Bearing supports components like steering columns, while in aerospace, it aids in landing gear mechanisms. Its balanced performance suits both high-speed and high-load scenarios.

Perfect Fit for Automation: MG 306 DDL‑3 Bearing
MG 306 DDL‑3 Bearing is ideal for robotic arms and conveyor systems in automated factories, offering smooth motion and minimal maintenance. The compact design fits seamlessly into tight spaces.
