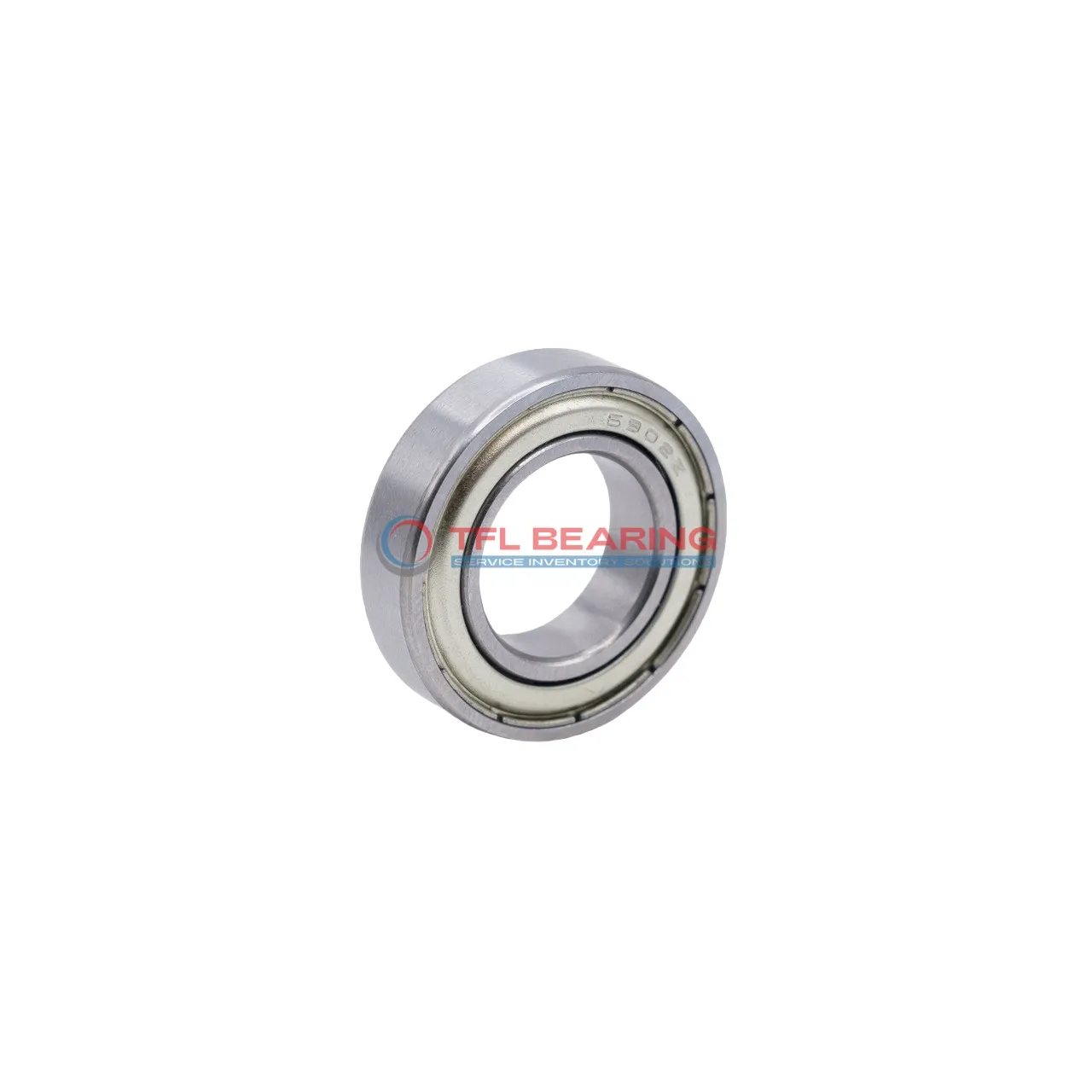

Single Row Deep Groove Ball Bearings 6313-2Z/C3GJN

Single Row Deep Groove Ball Bearings 6313-2Z/C3GJN

The 6313-2Z/C3GJN is a single-row deep groove ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2084 lbf and operates smoothly at speeds up to 4800 RPM.

Its shielded design keeps dirt out while maintaining smooth rotation, and the C3 radial clearance allows for slight thermal expansion. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 2080g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6313-2Z/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2084 lbf
  • Static Radial Load 13466 lbf
  • Max Speed 4800 rpm
  • Weight 2080 g
  • price（$） 37.98
Single Row Deep Groove Ball Bearings 6313-2Z/C3GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6313-2Z/C3GJN Bearing for Precision Tasks?

6313-2Z/C3GJN Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2084 lbf, it handles demanding conditions reliably.
The bearing operates efficiently at speeds up to 4,800 rpm, balancing performance and longevity.

6313-2Z/C3GJN Bearing’s C3 radial clearance provides optimal performance under varying temperatures.
Its robust design makes it suitable for a wide range of industrial applications.

Application

Industrial Uses of 6313-2Z/C3GJN Bearing
6313-2Z/C3GJN Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6313-2Z/C3GJN Bearing a Preferred Choice?
In automotive applications like electric motors, 6313-2Z/C3GJN Bearing handles radial loads efficiently. Its chrome steel construction offers durability, making it suitable for long-term use in demanding environments.

Perfect Fit for Automation: 6313-2Z/C3GJN Bearing
6313-2Z/C3GJN Bearing works well in robotic arms and automated assembly lines. The shielded seals protect against dust, while the ABEC 1 tolerance ensures reliable precision.

Light-Duty vs Heavy-Duty: Best Uses for 6313-2Z/C3GJN Bearing
For light-duty applications like small pumps, 6313-2Z/C3GJN Bearing provides quiet operation. In heavy-duty scenarios, its high static radial load capacity makes it a dependable choice.

Where to Use 6313-2Z/C3GJN Bearing
6313-2Z/C3GJN Bearing is ideal for household appliances like washing machines, where its balanced performance and durability are valued. The metric sizing ensures easy compatibility with standard components.
