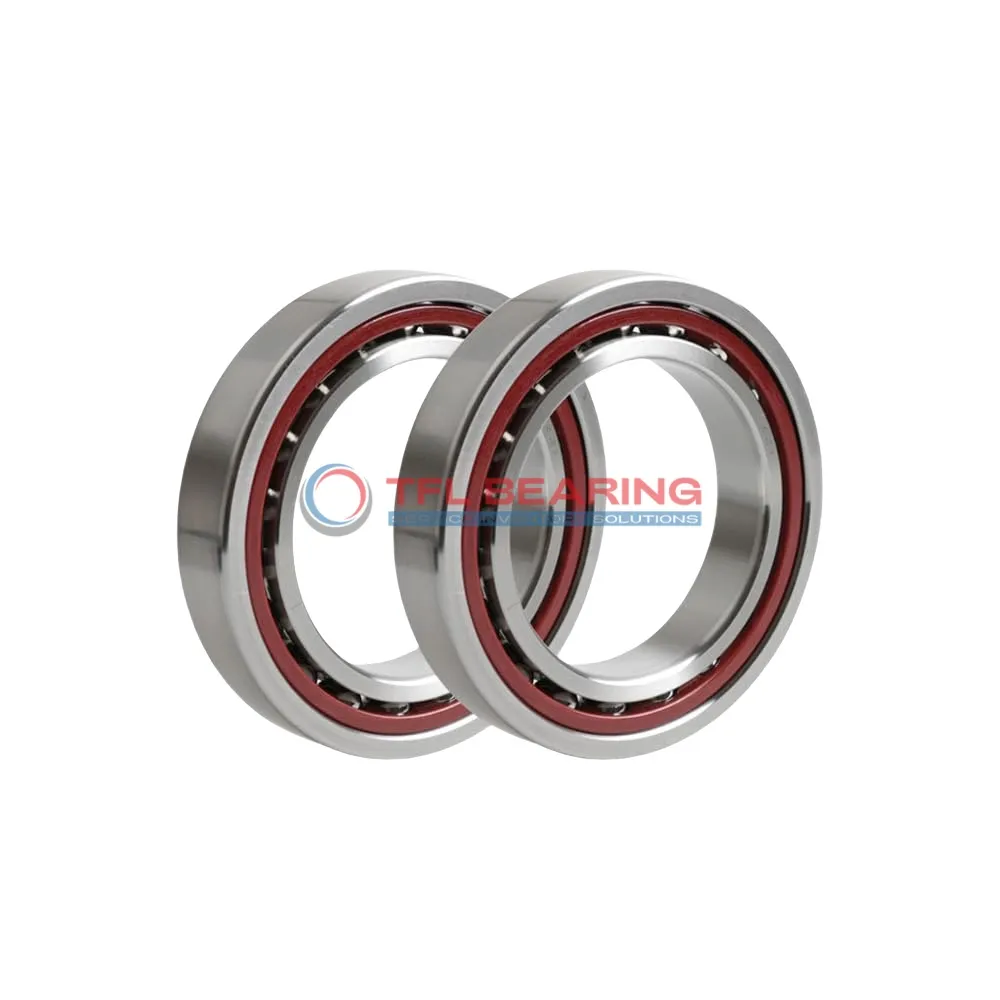

Super Precision Angular Contact Ball Bearings 71910 CDTP/HCP4B

Super Precision Angular Contact Ball Bearings 71910 CDTP/HCP4B

The 71910 CDTP/HCP4B is a super precision angular contact ball bearing with a 50mm bore and 72mm outer diameter, crafted from high-quality chrome steel. Its compact 12mm width makes it suitable for tight spaces while maintaining robust performance.

This bearing handles radial loads up to 3038 lbf and reaches speeds of 22,000 RPM, thanks to its ceramic balls and phenolic cage. The 15° contact angle ensures smooth operation under angular loads, with optional preload for added stability.

Its open design allows easy lubrication, and it operates reliably in temperatures from -30°C to 110°C. The P4 tolerance class (equivalent to ABEC-7) guarantees exceptional precision for demanding applications.

Ideal for high-speed machinery like spindles or precision tools, this bearing is interchangeable with SKF models. Weighing just 0.12kg, it offers a lightweight yet durable solution for precision engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71910 CDTP/HCP4B
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.006mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.007mm to 0
  • Width 12 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 3038 lbf
  • Static Radial Load 2340 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 22000 rpm
  • Weight 0.12 kg
  • Price（$） 371.124
Super Precision Angular Contact Ball Bearings 71910 CDTP/HCP4B dimension drawing
Download DWG Download PDF

Features

Performance Features of 71910 CDTP/HCP4B Bearing

71910 CDTP/HCP4B Bearing is designed with a 15° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and ceramic balls reduce friction, enhancing speed capabilities up to 22,000 rpm.

The phenolic cage ensures smooth operation, even under high dynamic radial loads of 3038 lbf.
With a P4 tolerance class, it delivers consistent performance in demanding conditions.

71910 CDTP/HCP4B Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, maintaining long-term reliability.

Application

Common Applications of 71910 CDTP/HCP4B Bearing
71910 CDTP/HCP4B Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for prolonged operations.

In automotive applications, 71910 CDTP/HCP4B Bearing supports components like turbochargers and electric motors, handling both radial and axial loads efficiently. Its P4 tolerance class guarantees consistent performance in demanding conditions.

For robotics, 71910 CDTP/HCP4B Bearing’s phenolic cage and chrome steel rings provide durability in articulated arms and automated systems. The matched arrangement option further enhances stability in complex movements.

Medical imaging devices benefit from 71910 CDTP/HCP4B Bearing’s low vibration and high-speed capabilities. The open design allows for easy lubrication, ensuring smooth operation in critical diagnostic equipment.
