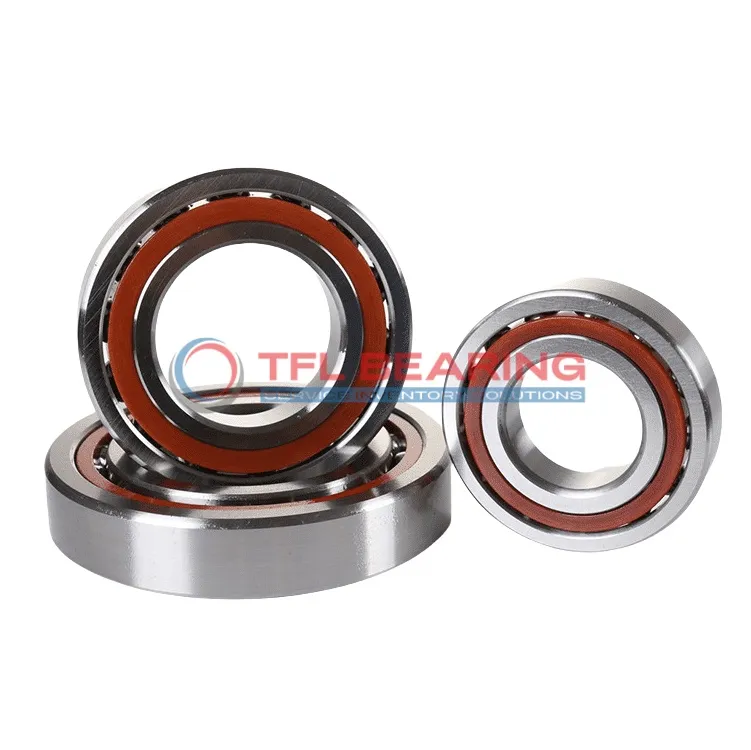

Super Precision Angular Contact Ball Bearings 7016 ACD/P4ATBTC

Brand: TFL Bearing Interchangeable: SKF 7016 ACD/P4ATBTC 80 mm × 125 mm × 66 mm Metric Open
Part number: 7016 ACD/P4ATBTC
Super Precision Angular Contact Ball Bearings 7016 ACD/P4ATBTC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.004mm to 0
Width66 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load30,375 lbf
Static Radial Load39,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight2.56 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7016 ACD/P4ATBTC is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes in a matched set of three bearings for balanced performance.

Designed for angular contact loads, it handles dynamic radial loads up to 30375 lbf and static radial loads up to 39600 lbf. With a maximum speed of 28000 RPM, it offers smooth and reliable operation.

The open design and phenolic cage ensure durability and easy maintenance. Its moderate preload (Class C) provides stability in high-speed applications.

Ideal for precision machinery like spindles or CNC equipment, this bearing operates efficiently in temperatures from -30°C to 110°C. Weighing 2.56kg, it’s robust yet manageable for its size. Interchangeable with SKF bearings, it’s a practical choice for replacements.

Features

Performance Features of 7016 ACD/P4ATBTC Bearing

7016 ACD/P4ATBTC Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and balls ensure durability under high dynamic radial loads of up to 30,375 lbf.

Its phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 28,000 rpm, it delivers smooth operation in precision tasks.

The matched arrangement of three bearings provides stability in demanding setups.
Moderate preload (Class C) ensures consistent performance without excessive wear.

7016 ACD/P4ATBTC Bearing operates efficiently in temperatures from -30°C to 110°C.
Its open design allows for easy lubrication, extending service life.

Application

Industrial Uses of 7016 ACD/P4ATBTC Bearing
The 7016 ACD/P4ATBTC Bearing is commonly used in high-precision machine tools, where its angular contact design handles both radial and axial loads efficiently.
Its phenolic cage and chrome steel construction ensure durability in demanding industrial environments.

What Makes 7016 ACD/P4ATBTC Bearing a Preferred Choice?
In automotive applications, 7016 ACD/P4ATBTC Bearing is ideal for high-performance gearboxes, providing smooth operation under moderate preload.
The matched arrangement of three bearings enhances stability in high-speed scenarios.

Perfect Fit for Automation: 7016 ACD/P4ATBTC Bearing
For robotics and automation systems, 7016 ACD/P4ATBTC Bearing offers reliable performance in mechanical arms and precision movement applications.
Its P4A tolerance class ensures minimal vibration and noise during operation.

Medical vs Industrial: Where 7016 ACD/P4ATBTC Bearing Excels
In medical imaging devices, 7016 ACD/P4ATBTC Bearing provides the precision needed for accurate diagnostics.
Meanwhile, in industrial settings, it excels in spindle applications requiring high rotational accuracy.

Key Fields for 7016 ACD/P4ATBTC Bearing
The 7016 ACD/P4ATBTC Bearing is well-suited for aerospace applications, where its temperature range and load capacity meet rigorous standards.
Its lubricated design also ensures long service life in challenging conditions.
