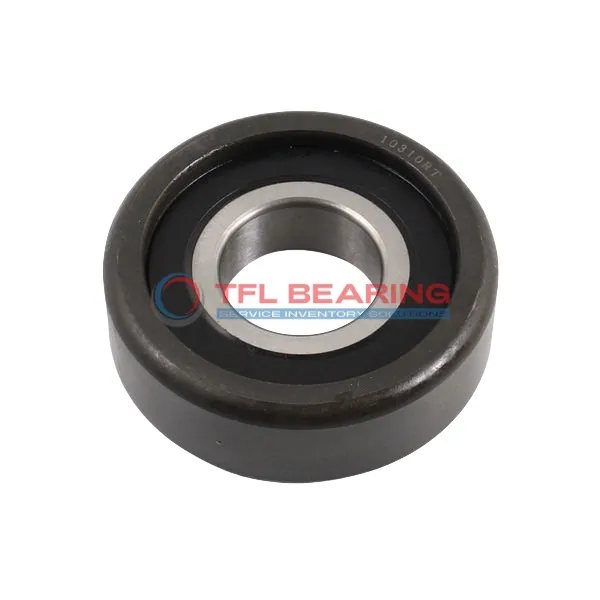

Mast Guide Bearings MG 28mm‑J5

Mast Guide Bearings MG 28mm‑J5

The MG 28mm-J5 is a mast guide bearing with a 28mm inner diameter and 81mm outer diameter, crafted for sturdy performance. Its compact design, at 24mm wide, fits well in tight spaces while handling dynamic loads up to 27,400 N.

Made from robust materials, it offers reliable support with a static capacity of 14,000 N. The 5mm radius ensures smooth operation, reducing stress on adjacent components.

Weighing just 0.61kg, it’s lightweight yet durable for its size. Ideal for mast guidance systems or industrial equipment where precision and load-bearing are key.

Its straightforward design makes installation and maintenance hassle-free. A practical choice for engineers and maintenance teams needing dependable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 28mm‑J5
  • Brand TFL & OEM
  • Inner Diameter (d) 28.000 mm
  • Outer Diameter (D) 81.00 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 24.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 27,400 N
  • Static Capacity (Cor.) 14,000 N
  • Weight 0.6123 Kg
Mast Guide Bearings MG 28mm‑J5 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 28mm-J5 Bearing

MG 28mm-J5 Bearing is built with precise dimensions of 28.000 mm x 81.00 mm x 24.000 mm, ensuring a perfect fit for specific applications.
Its dynamic capacity of 27,400 N allows it to handle significant loads with ease.

The bearing’s static capacity of 14,000 N ensures stability even under heavy pressure.
With a weight of 0.6123 Kg, it offers a balance between strength and portability.

The 5 mm radius design enhances durability and reduces stress concentration.
This makes MG 28mm-J5 Bearing suitable for demanding industrial environments.

Application

Industrial Uses of MG 28mm‑J5 Bearing
MG 28mm‑J5 Bearing is commonly used in construction equipment, such as mast guide systems for forklifts, where its robust design handles heavy loads with ease. The 28mm bore size ensures a secure fit for precise movement.

Where Is MG 28mm‑J5 Bearing Used?
You’ll find MG 28mm‑J5 Bearing in agricultural machinery, supporting components like grain conveyors that require reliable performance in dusty conditions. Its 81mm outer diameter provides stability under varying loads.

Built for Heavy-Duty Use: MG 28mm‑J5 Bearing
MG 28mm‑J5 Bearing works well in material handling systems, such as warehouse automation, where its 24mm width offers space-efficient durability. The 5mm radius design reduces stress concentrations for longer life.

Automotive vs Aerospace: Applications of MG 28mm‑J5 Bearing
In automotive steering columns, MG 28mm‑J5 Bearing ensures smooth rotation, while its aerospace applications include support mechanisms for landing gear. The chrome steel construction handles high dynamic loads reliably.

Perfect Fit for Automation: MG 28mm‑J5 Bearing
MG 28mm‑J5 Bearing is ideal for robotic arms in assembly lines, where its 21mm inner ring width balances precision and strength. The 0.6123kg weight makes it easy to integrate without compromising performance.
