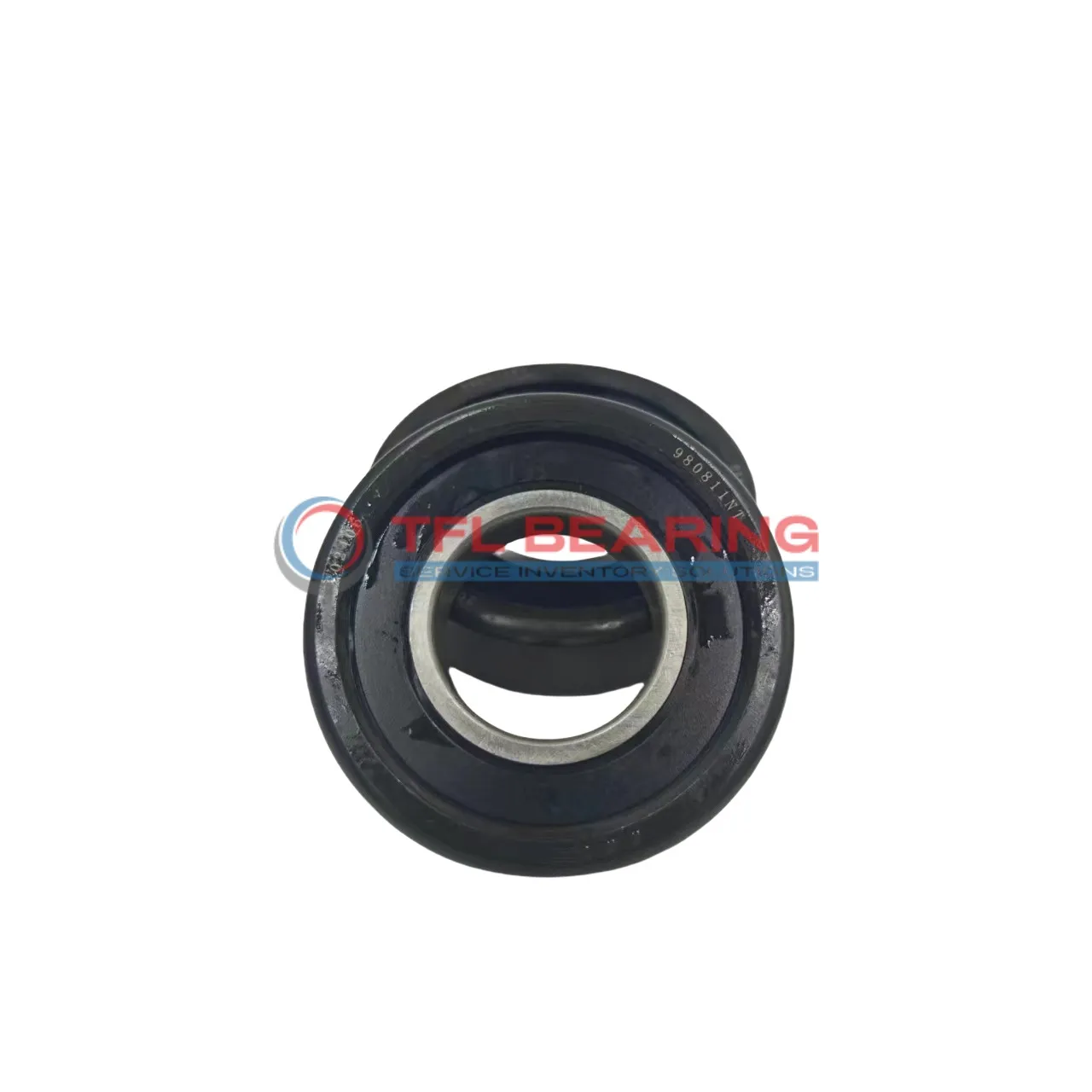

Mast Guide Bearings MG 206 FFM

Mast Guide Bearings MG 206 FFM

The MG 206 FFM is a mast guide bearing measuring 30mm in inner diameter and 81.28mm in outer diameter, with a width of 25.4mm. Made from robust materials, it’s built to handle demanding conditions.

With a dynamic capacity of 23,100 N and static capacity of 18,800 N, it supports heavy loads while maintaining smooth operation. Its chamfered edges help with easy installation and alignment.

The bearing’s design ensures stability and durability, making it suitable for mast guidance systems. It’s also lightweight at 0.635kg, balancing strength and ease of handling.

Ideal for industrial applications where precise guidance and load support are needed, such as construction equipment or lifting mechanisms.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 206 FFM
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 81.28 mm
  • Inner Ring Width (b) 19.58 mm
  • Outer Ring Width (B) 25.400 mm
  • Radius (R) chamfer
  • Dynamic Capacity (Cr.) 23,100 N
  • Static Capacity (Cor.) 18,800 N
  • Weight 0.635 Kg
Mast Guide Bearings MG 206 FFM dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 206 FFM Bearing

MG 206 FFM Bearing is built with precise dimensions of 30.000 mm x 81.28 mm x 25.400 mm, ensuring a perfect fit for guide applications.

Its dynamic capacity of 23,100 N allows it to handle significant loads while maintaining smooth operation.

The chamfered edges reduce stress concentrations, enhancing durability in demanding conditions.

Weighing just 0.635 kg, it offers a balance of strength and lightweight design.

Application

Industrial Uses of MG 206 FFM Bearing
MG 206 FFM Bearing is commonly used in construction equipment, especially in mast guide systems where smooth vertical movement is essential. Its robust design handles heavy loads effortlessly, making it reliable for cranes and lifts.

Where Is MG 206 FFM Bearing Used?
You’ll often find MG 206 FFM Bearing in agricultural machinery, supporting components like harvesters and tractors. Its high dynamic capacity ensures it can withstand the demanding conditions of fieldwork.

Built for Heavy-Duty Use: MG 206 FFM Bearing
MG 206 FFM Bearing excels in industrial automation, particularly in conveyor systems that require precise alignment. The chamfered edges reduce friction, extending the bearing’s lifespan in continuous operation.

Automotive vs Aerospace: Applications of MG 206 FFM Bearing
In automotive applications, MG 206 FFM Bearing is ideal for steering systems, offering durability and precision. For aerospace, its lightweight yet strong construction makes it suitable for auxiliary equipment.

Perfect Fit for Automation: MG 206 FFM Bearing
MG 206 FFM Bearing is a great choice for robotic arms, providing smooth motion and high load capacity. Its dimensions fit standard industrial designs, ensuring easy integration into automated systems.
