Mast Guide Bearings MG 305 DD‑5

Mast Guide Bearings MG 305 DD‑5

The MG 305 DD‑5 is a mast guide bearing with a compact design, measuring 25mm in inner diameter and 76.2mm in outer diameter. Its sturdy build can handle dynamic loads up to 22,390 N, making it reliable for heavy-duty use.

With an inner ring width of 17mm and outer ring width of 25.4mm, it offers a balanced structure for smooth operation. The 8.38mm radius ensures easy installation and reduces stress points.

Weighing just 0.567kg, it’s lightweight yet durable for its size. Ideal for applications like construction equipment or industrial machinery where precise guidance is needed.

Its robust performance and simple maintenance make it a practical choice for engineers and repair teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 305 DD‑5
  • Brand TFL & OEM
  • Inner Diameter (d) 25.000 mm
  • Outer Diameter (D) 76.20 mm
  • Inner Ring Width (b) 17 mm
  • Outer Ring Width (B) 25.400 mm
  • Radius (R) 8.38 mm
  • Dynamic Capacity (Cr.) 22,390 N
  • Static Capacity (Cor.) 11,490 N
  • Weight 0.567 Kg

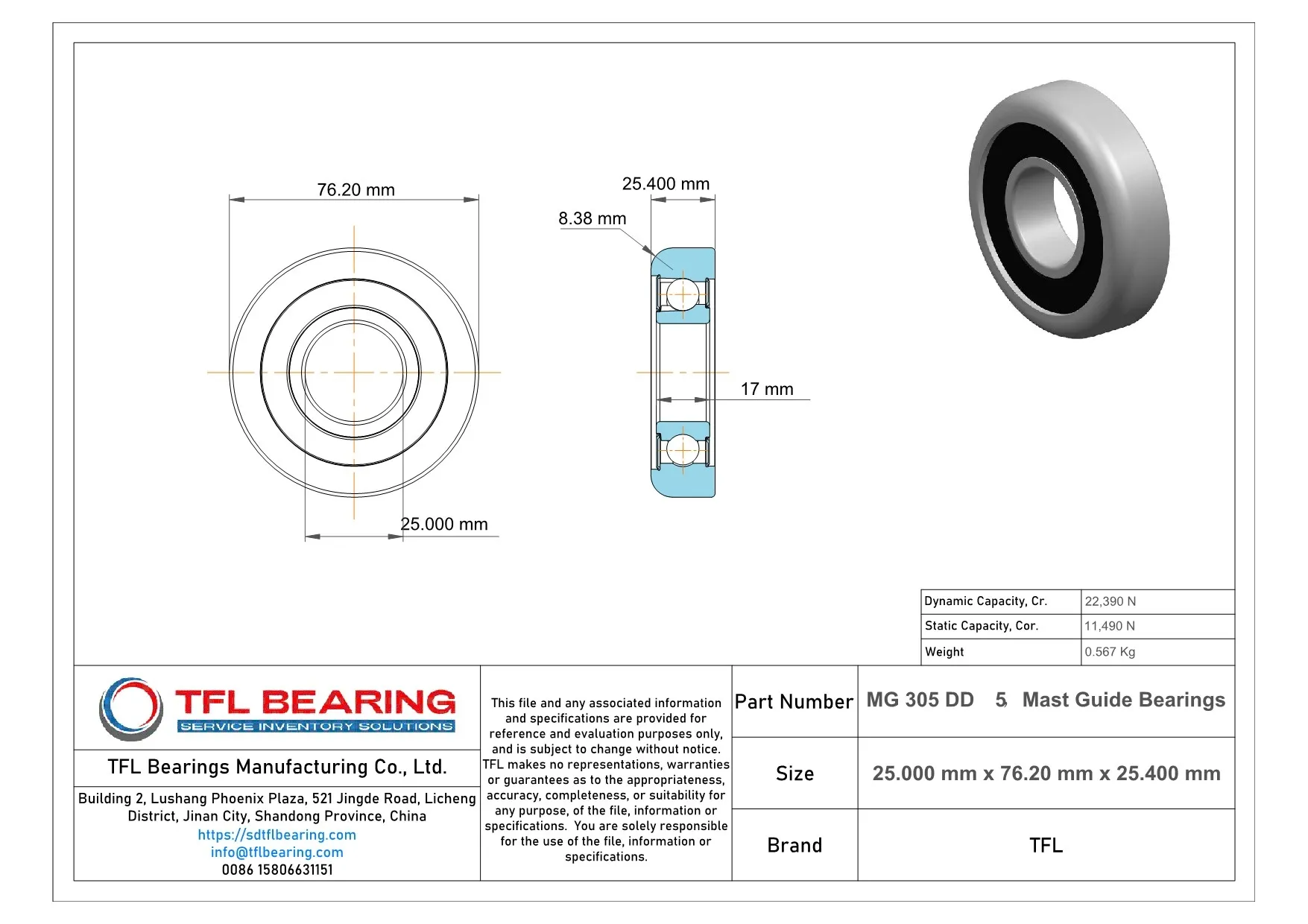

Mast Guide Bearings MG 305 DD‑5 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 305 DD‑5 Bearing

MG 305 DD‑5 Bearing is built with precise dimensions of 25.000 mm x 76.20 mm x 25.400 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 22,390 N allows it to handle significant loads with ease.

The bearing’s static capacity of 11,490 N ensures stability even under heavy pressure.
With a weight of 0.567 Kg, it offers a balance between strength and portability.

The radius of 8.38 mm provides smooth movement, reducing friction and wear.
This design makes MG 305 DD‑5 Bearing reliable for long-term use in demanding conditions.

Application

Industrial Uses of MG 305 DD‑5 Bearing
MG 305 DD‑5 Bearing is commonly used in construction equipment, such as mast guide systems for forklifts, where its robust design handles heavy loads with ease. The 25.000 mm bore ensures a secure fit on standard shafts, while the 76.20 mm outer diameter provides stability.

In automation setups, MG 305 DD‑5 Bearing supports linear motion systems, offering smooth movement for robotic arms and conveyor belts. Its dynamic capacity of 22,390 N makes it suitable for repetitive, high-stress tasks.

For agricultural machinery, MG 305 DD‑5 Bearing’s durable construction withstands harsh conditions, like dust and moisture, in equipment like harvesters. The stainless steel components add longevity, reducing maintenance needs.

What Makes MG 305 DD‑5 Bearing a Preferred Choice?
MG 305 DD‑5 Bearing’s compact size (25.400 mm width) fits neatly into tight spaces, such as printing presses or packaging machines. The 8.38 mm radius allows for better load distribution, preventing premature wear.

In material handling systems, MG 305 DD‑5 Bearing ensures reliable performance for lifting mechanisms, thanks to its static capacity of 11,490 N. The 0.567 kg weight strikes a balance between strength and portability.
