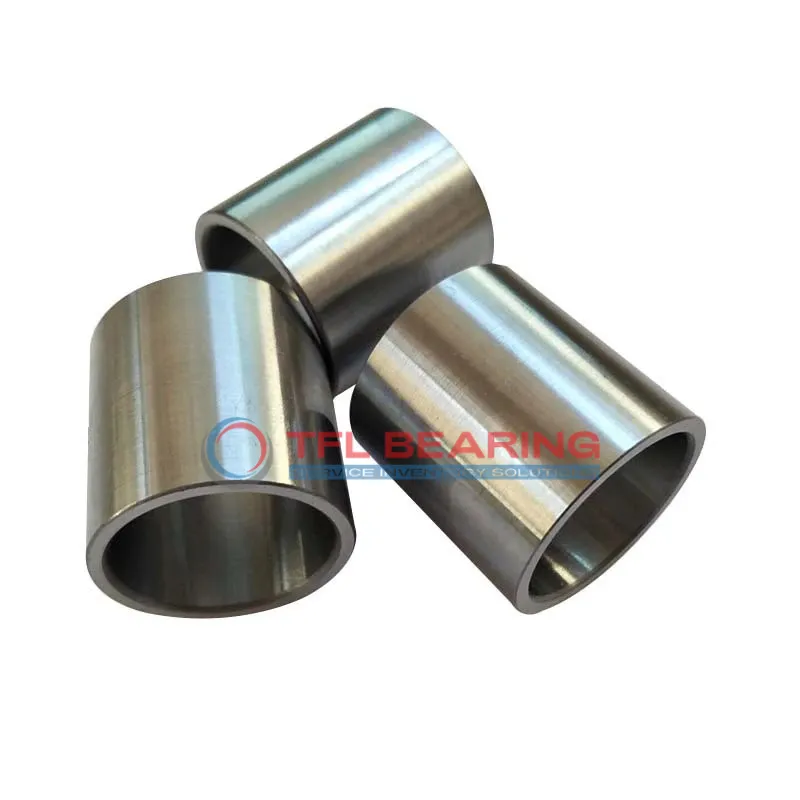

Inner Rings IR32X40X20-XL

Inner Rings IR32X40X20-XL

The IR32X40X20-XL is a needle roller bearing inner ring with a 32mm bore and 40mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it suitable for tight spaces.
Pre-lubricated for smooth operation, it reduces friction and wear during use. The bearing can handle moderate radial loads with ease.
With a minimal chamfer radius of 0.6mm, it fits seamlessly into assemblies. Its compatibility with INA bearings makes it a versatile replacement option.
Ideal for use in gearboxes, transmissions, or industrial machinery where space is limited. Weighing just 68g, it’s lightweight yet durable for its size. Compliant with RoHS standards for safe application.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR32X40X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 32 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 68 g
  • Rmin 0.6 mm
Inner Rings IR32X40X20-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR32X40X20-XL Bearing
IR32X40X20-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a snug fit, enhancing stability in operation.
The needle roller design allows for high load capacity in a compact space, making it ideal for tight installations.
With a width of 20 mm, it provides a balance between strength and space efficiency.
Lubrication is pre-applied, reducing initial setup time and ensuring smooth performance from the start.
RoHS compliance means it meets environmental standards, suitable for various industrial applications.

Application

Industrial Uses of IR32X40X20-XL Bearing
IR32X40X20-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR32X40X20-XL Bearing fits well in transmission systems, providing smooth operation under high-speed conditions. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, IR32X40X20-XL Bearing’s precise tolerances and lubrication ensure reliable performance in robotic arms and conveyor systems. The compact design saves space without compromising on load capacity.
Where Is IR32X40X20-XL Bearing Used?
You’ll often find IR32X40X20-XL Bearing in printing machinery, where its needle rollers reduce friction for consistent performance. The lubricated design helps maintain smooth operation over long periods.
In household appliances like washing machines, IR32X40X20-XL Bearing supports rotating parts with minimal noise. Its chrome steel material resists wear, extending the appliance’s lifespan.
Perfect Fit for Automation: IR32X40X20-XL Bearing
IR32X40X20-XL Bearing works well in 3D printers, where precision and low friction are key. The needle rollers ensure accurate movement for detailed prints.
For packaging machines, IR32X40X20-XL Bearing’s compact size and high load capacity make it ideal for high-speed operations. The lubricated design reduces maintenance needs.
Automotive vs Aerospace: Applications of IR32X40X20-XL Bearing
In automotive steering systems, IR32X40X20-XL Bearing provides reliable support for smooth handling. The needle rollers handle radial loads efficiently.
For aerospace applications, IR32X40X20-XL Bearing’s lightweight design and durability make it suitable for auxiliary equipment. The precise tolerances ensure consistent performance.
