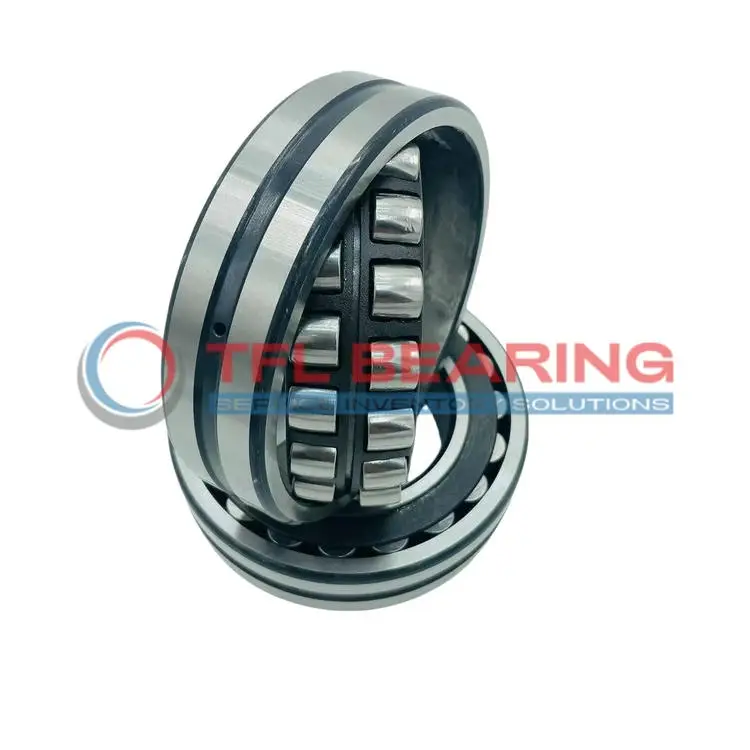

22326 CCJA/C3W33VA407 Double Row Spherical Roller Bearing

22326 CCJA/C3W33VA407 Double Row Spherical Roller Bearing

The 22326 CCJA/C3W33VA407 is a double-row spherical roller bearing with a 130mm bore and 280mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 264375 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs well in temperatures ranging from -30°C to 200°C, making it suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery, industrial gearboxes, or applications requiring high radial load capacity.

Weighing 28kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22326 CCJA/C3W33VA407
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 280 x 93 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 93 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 164 mm
  • Shoulder/Recess Dia Of Outer Ring 233 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 264375 lbf
  • Static Radial Load 296748 lbf
  • Max Speed 3600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 28 kg

Features

Performance Features of 22326 CCJA/C3W33VA407 Bearing

22326 CCJA/C3W33VA407 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 264375 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even with misalignment.
This construction enhances load distribution, reducing stress on individual components.

22326 CCJA/C3W33VA407 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, contributing to extended service life.

With a maximum speed of 3600 rpm, it balances high performance and durability.
The C3 radial clearance allows for thermal expansion in demanding conditions.

Application

Industrial Uses of 22326 CCJA/C3W33VA407 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

Where Is 22326 CCJA/C3W33VA407 Bearing Used?
You’ll often spot this bearing in mining equipment, thanks to its robust chrome steel rollers and steel cage. It’s also a reliable choice for paper mills, where consistent performance under heavy loads is essential.

Built for Heavy-Duty Use: 22326 CCJA/C3W33VA407 Bearing
With a dynamic radial load capacity of 264375 lbf, this bearing excels in industrial gearboxes and large fans. Its C3 clearance allows for thermal expansion, making it suitable for high-temperature environments.

Automotive vs Aerospace: Applications of 22326 CCJA/C3W33VA407 Bearing
While it’s too hefty for aerospace, this bearing shines in heavy vehicles like lorries and buses. Its durability and load capacity make it ideal for transmissions and differential systems.

Key Fields for 22326 CCJA/C3W33VA407 Bearing
Wind turbines benefit from this bearing’s ability to handle misalignment and heavy loads. The lubrication groove ensures long service life, even in remote or hard-to-maintain locations.
