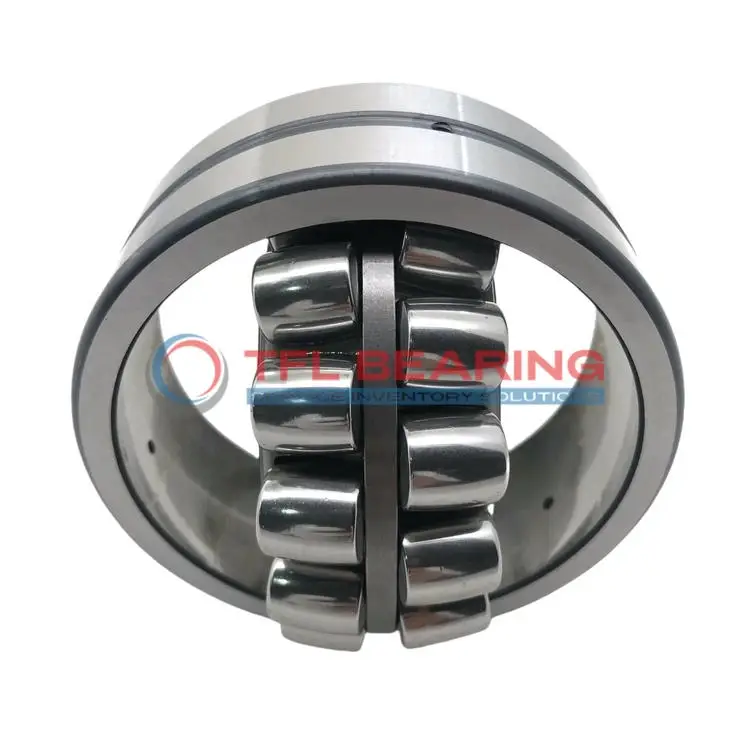

22310 E/C1 Double Row Spherical Roller Bearing

22310 E/C1 Double Row Spherical Roller Bearing

The 22310 E/C1 is a double-row spherical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 51256 lbf and operates smoothly at speeds up to 6300 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 1.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22310 E/C1
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 110 x 40 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 63.9 mm
  • Shoulder/Recess Dia Of Outer Ring 91.9 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51256 lbf
  • Static Radial Load 50357 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C1
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.85 kg
  • Price （US$） 61.2

Features

Performance Features of 22310 E/C1 Bearing

22310 E/C1 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 51256 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, improving operational flexibility.
With a maximum speed of 6300 rpm, it delivers both durability and efficiency.

22310 E/C1 Bearing operates in temperatures from -30° to 200°C, suitable for varied industrial conditions.
The C1 radial clearance ensures smooth performance, reducing friction and wear.

Application

Industrial Uses of 22310 E/C1 Bearing
22310 E/C1 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps accommodate misalignment, reducing wear in demanding conditions.

Where Is 22310 E/C1 Bearing Used?
In mining equipment, 22310 E/C1 Bearing supports rotating parts like conveyor pulleys, thanks to its high dynamic load capacity. The chrome steel rollers ensure longevity even in abrasive environments.

Built for Heavy-Duty Use: 22310 E/C1 Bearing
For wind turbines, 22310 E/C1 Bearing provides reliable performance in gearboxes, where its C1 radial clearance ensures smooth operation. The steel cage adds durability under high-speed rotations.

Automotive vs Aerospace: Applications of 22310 E/C1 Bearing
In truck transmissions, 22310 E/C1 Bearing handles combined loads, while its temperature range suits aerospace auxiliary systems. The metric sizing makes it versatile for global applications.

Key Fields for 22310 E/C1 Bearing
22310 E/C1 Bearing fits well in paper mill rollers, where its open design simplifies lubrication. The high static load rating makes it dependable for prolonged industrial use.
