Inner Rings IR220X240X50-XL

Inner Rings IR220X240X50-XL

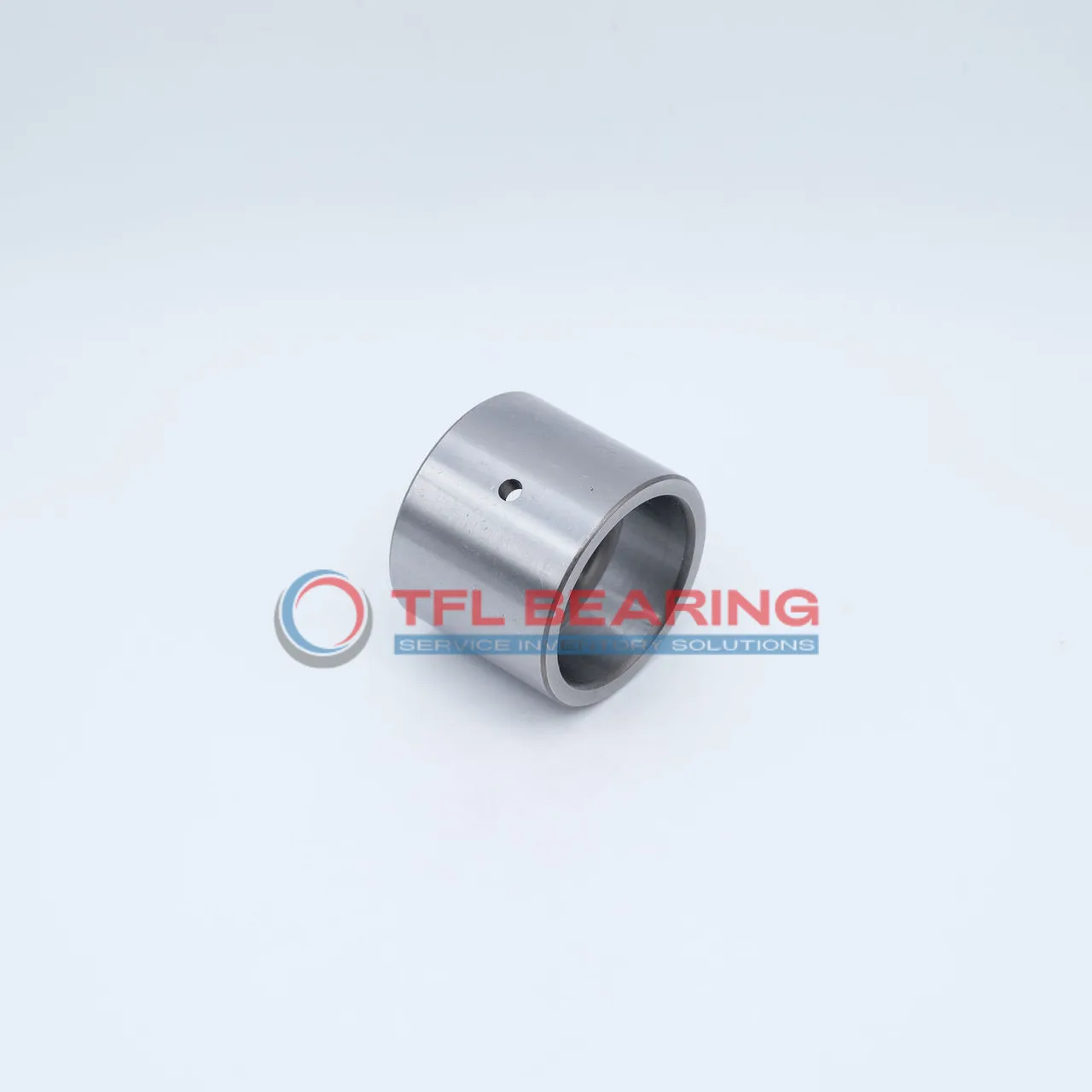

The IR220X240X50-XL is a needle roller bearing inner ring with a 220mm bore and 240mm outer diameter, crafted from sturdy chrome steel. Its 50mm width and precise tolerances ensure a snug fit in demanding setups.
Pre-lubricated for smooth operation, it’s ready to handle high radial loads right out of the box. The 1.5mm rounded edges (Rmin) help reduce stress during installation.
Compatible with INA bearings, this ring simplifies replacements in industrial gearboxes or heavy machinery. Weighing 2.75kg, it’s robust yet manageable for its size.
RoHS compliant, it meets safety standards for eco-conscious workplaces. Ideal for applications where space-saving needle rollers are preferred, like conveyor systems or agricultural equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR220X240X50-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 220 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.086mm to -0.055mm
  • Width 50 mm
  • Width Tolerance -0.3mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 2753 g
  • Rmin 1.5 mm
Inner Rings IR220X240X50-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR220X240X50-XL Bearing
IR220X240X50-XL Bearing is crafted from high-quality chrome steel, offering excellent durability and resistance to wear.
Its precise bore diameter of 220 mm ensures a secure fit, while the outer diameter of 240 mm provides stability under load.
The needle roller design of IR220X240X50-XL Bearing allows for efficient load distribution, enhancing performance in compact spaces.
With a width of 50 mm, it balances strength and space-saving design for various applications.
IR220X240X50-XL Bearing comes pre-lubricated, reducing initial setup time and ensuring smooth operation.
Its compliance with RoHS standards makes it an environmentally friendly choice for industrial use.

Application

Industrial Uses of IR220X240X50-XL Bearing
IR220X240X50-XL Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its needle roller design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
What Makes IR220X24050-XL Bearing a Preferred Choice?
In automotive applications, IR220X24050-XL Bearing is often found in gearboxes and transmission systems, providing smooth operation under high stress. Its metric sizing makes it compatible with a variety of vehicle designs.
Built for Heavy-Duty Use: IR220X24050-XL Bearing
For automation systems, IR220X24050-XL Bearing supports robotic arms and conveyor belts, where precision and reliability are key. The lubricated design reduces friction, extending the bearing’s service life.
Medical vs Industrial: Where IR220X24050-XL Bearing Excels
While not typically used in medical devices, IR220X24050-XL Bearing shines in industrial settings like printing presses and packaging machines. Its robust build ensures consistent performance in high-speed operations.
