Inner Rings IR22X26X16-XL

Inner Rings IR22X26X16-XL

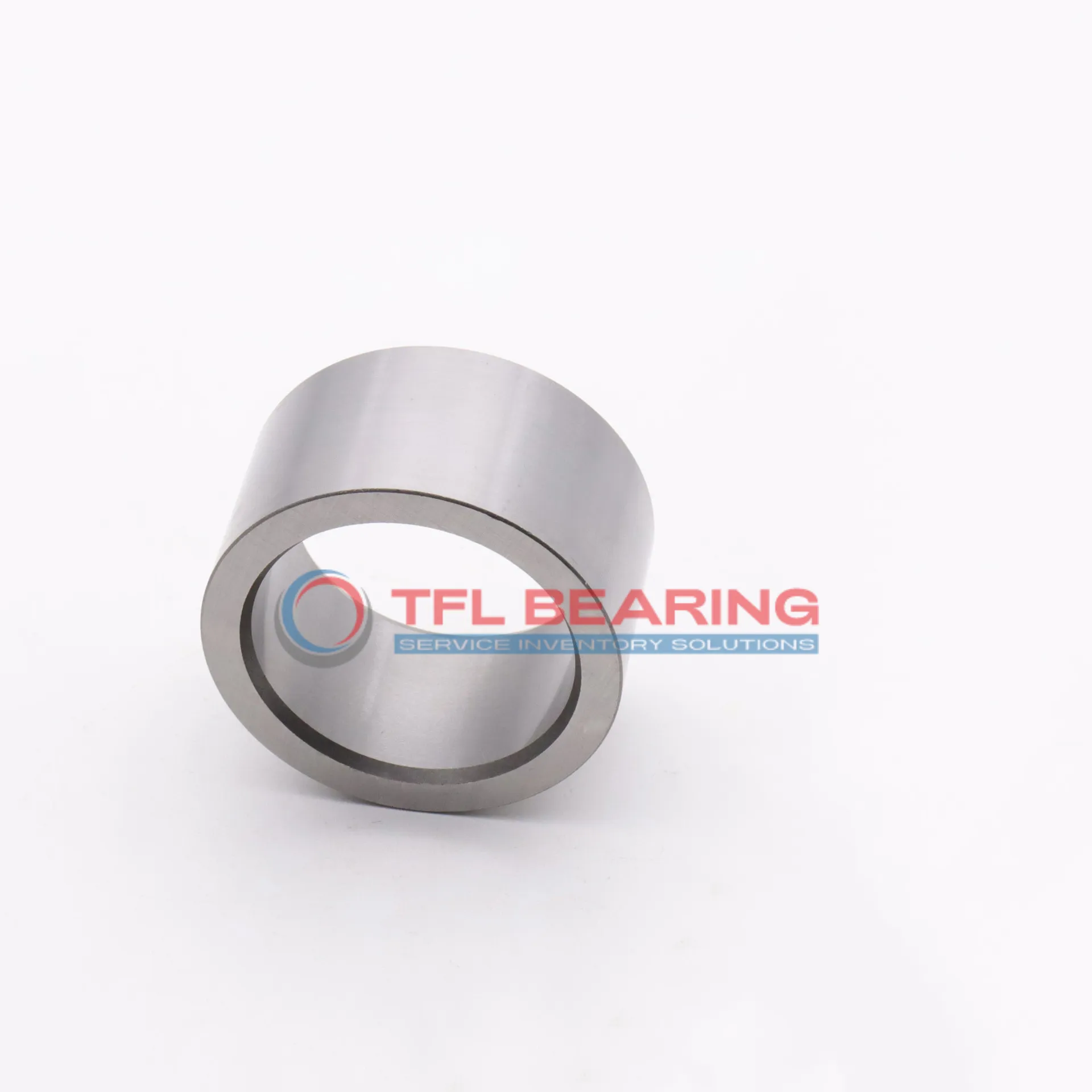

The IR22X26X16-XL is a needle roller bearing inner ring with a 22mm bore and 26mm outer diameter, crafted from sturdy chrome steel. Its compact width of 16mm makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, it’s ready to use straight out of the box. The precise tolerances ensure a snug fit, reducing wear over time.
This model is interchangeable with INA bearings, offering flexibility for replacements. Ideal for applications like gear pumps or small machinery where precision and reliability are key.
Weighing just 18.2g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe and practical component for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR22X26X16-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 22 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 18.2 g
  • Rmin 0.3 mm
Inner Rings IR22X26X16-XL dimension drawing
Download DWG Download PDF

Features

How Is IR22X26X16-XL Bearing Engineered for Reliability?
IR22X26X16-XL Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances guarantee a snug fit, enhancing operational stability.
The needle roller design reduces friction, making it ideal for high-speed applications.
With a compact width of 16 mm, it fits seamlessly into tight spaces without compromising performance.
IR22X26X16-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance needs.
Its compliance with RoHS standards ensures it meets environmental and safety regulations.

Application

Essential Roles of IR22X26X16-XL Bearing
IR22X26X16-XL Bearing is commonly used in industrial gearboxes, where its compact design and needle roller construction help manage high radial loads efficiently. The chrome steel material ensures durability even in demanding conditions.
In automotive applications, IR22X26X16-XL Bearing fits well in transmission systems, providing smooth operation and reducing friction. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, IR22X26X16-XL Bearing’s precision and reliability make it suitable for robotic arms and conveyor systems. The lubricated design helps maintain performance over extended periods.
In household appliances like washing machines, IR22X26X16-XL Bearing’s quiet operation and resistance to wear contribute to long-lasting performance. Its lightweight design also helps reduce overall energy consumption.
