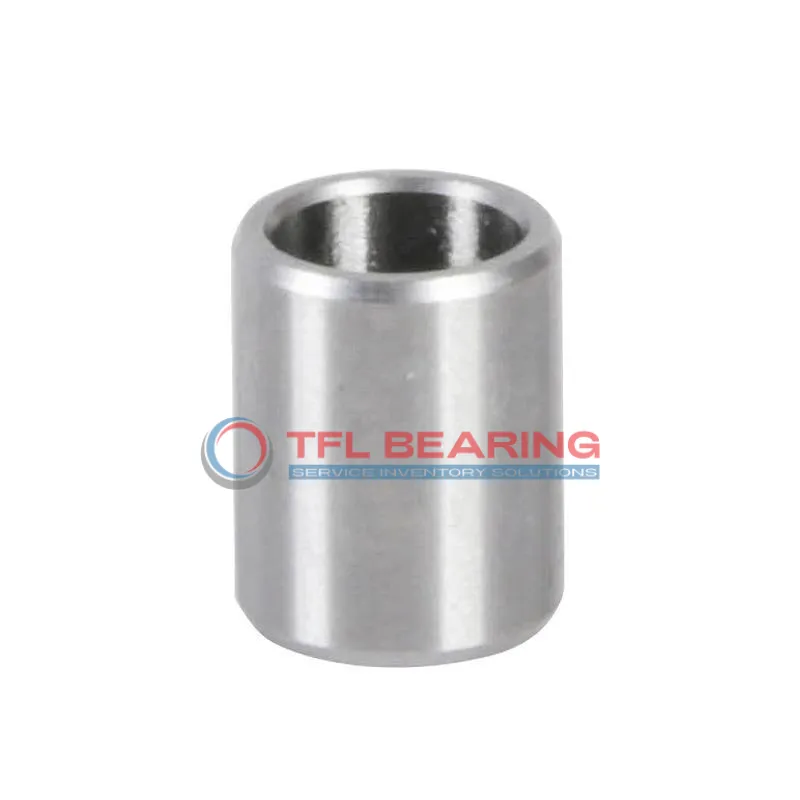

Inner Rings IR85X95X26-XL

Inner Rings IR85X95X26-XL

The IR85X95X26-XL is a needle roller bearing inner ring with an 85mm bore and 95mm outer diameter, crafted from sturdy chrome steel. Its compact 26mm width makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, it’s ready to use straight out of the box. The precise tolerances ensure a snug fit, reducing wear over time.
Compatible with INA bearings, this ring is a practical option for replacements or upgrades. It’s ideal for gearboxes, pumps, or industrial machinery where needle rollers are needed.
Weighing just 277g, it’s lightweight yet durable. Compliant with RoHS standards, it’s safe for various applications. The 1mm minimum corner radius helps with easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR85X95X26-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.014mm to -0.027mm
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 277 g
  • Rmin 1 mm
Inner Rings IR85X95X26-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR85X95X26-XL Bearing
IR85X95X26-XL Bearing is crafted from high-quality chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for needle roller applications.
The lubrication feature of IR85X95X26-XL Bearing enhances smooth operation and reduces friction.
With a width of 26 mm, it provides stability and reliable performance in compact spaces.
IR85X95X26-XL Bearing is RoHS compliant, making it suitable for environmentally conscious applications.
Its lightweight design at 277 g ensures easy handling without compromising strength.

Application

Industrial Uses of IR85X95X26-XL Bearing
IR85X95X26-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads. The chrome steel construction ensures durability in demanding environments like conveyor systems and heavy machinery.
Where Is IR85X95X26-XL Bearing Used?
You’ll often find IR85X95X26-XL Bearing in automotive transmissions, where its compact size and high load capacity make it ideal for tight spaces. The metric dimensions ensure easy integration with various vehicle models.
Built for Heavy-Duty Use: IR85X95X26-XL Bearing
IR85X95X26-XL Bearing excels in construction equipment, such as excavators, thanks to its robust design. The lubrication feature helps maintain smooth operation even under continuous stress.
Automotive vs Aerospace: Applications of IR85X95X26-XL Bearing
In automotive applications, IR85X95X26-XL Bearing supports components like differential systems, while in aerospace, it’s used in auxiliary gearboxes. Its precision tolerances ensure reliable performance in both fields.
Perfect Fit for Automation: IR85X95X26-XL Bearing
IR85X95X26-XL Bearing is a great choice for robotic arms, where its needle rollers provide precise movement. The lightweight design also helps reduce overall system weight.
