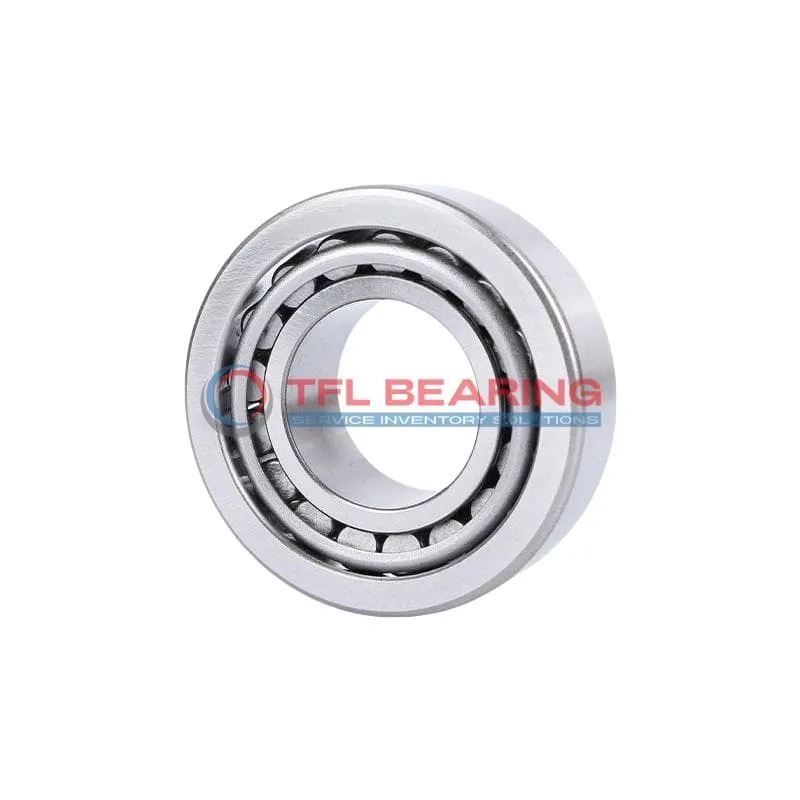

TS (Single Row Tapered Roller Bearings) (Imperial) 540-533X

TS (Single Row Tapered Roller Bearings) (Imperial) 540-533X

The 540-533X is a single-row tapered roller bearing with a 2.0625″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 38700 lbf radially and 5090 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance ensures easy installation, with options for C3, C4, or C5 available. Its ABEC-1 rating guarantees consistent performance for general applications.

Perfect for scenarios requiring durability and versatility, such as gearboxes or heavy-duty equipment. The tapered roller design provides excellent load distribution for long-lasting service.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 540-533X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0625" x 4.3307" x 1.5001"
  • Bore Dia 2.0625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.36"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.74"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 540
  • Cup Part Number 533X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.5 lb

Features

Performance Features of 540-533X Bearing

540-533X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

540-533X Bearing requires lubrication, but its robust design minimises maintenance needs.
The standard radial clearance option provides flexibility for different applications.

Application

Industrial Uses of 540-533X Bearing
The 540-533X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in rugged environments.

Where Is 540-533X Bearing Used?
You’ll often find 540-533X Bearing in automotive applications, such as wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a fit for many North American vehicles.

Built for Heavy-Duty Use: 540-533X Bearing
In industrial settings, 540-533X Bearing supports conveyor systems and gearboxes, where its open design simplifies lubrication. The steel cage adds extra strength for high-load scenarios.

Automotive vs Aerospace: Applications of 540-533X Bearing
While 540-533X Bearing excels in automotive systems like axles, it’s also suitable for aerospace ground equipment due to its reliable performance. The ABEC-1 rating ensures consistent precision.

Essential Roles of 540-533X Bearing
For agricultural machinery, 540-533X Bearing is a go-to choice, handling the demands of tractors and harvesters. Its standard radial clearance adapts well to varying operational conditions.
